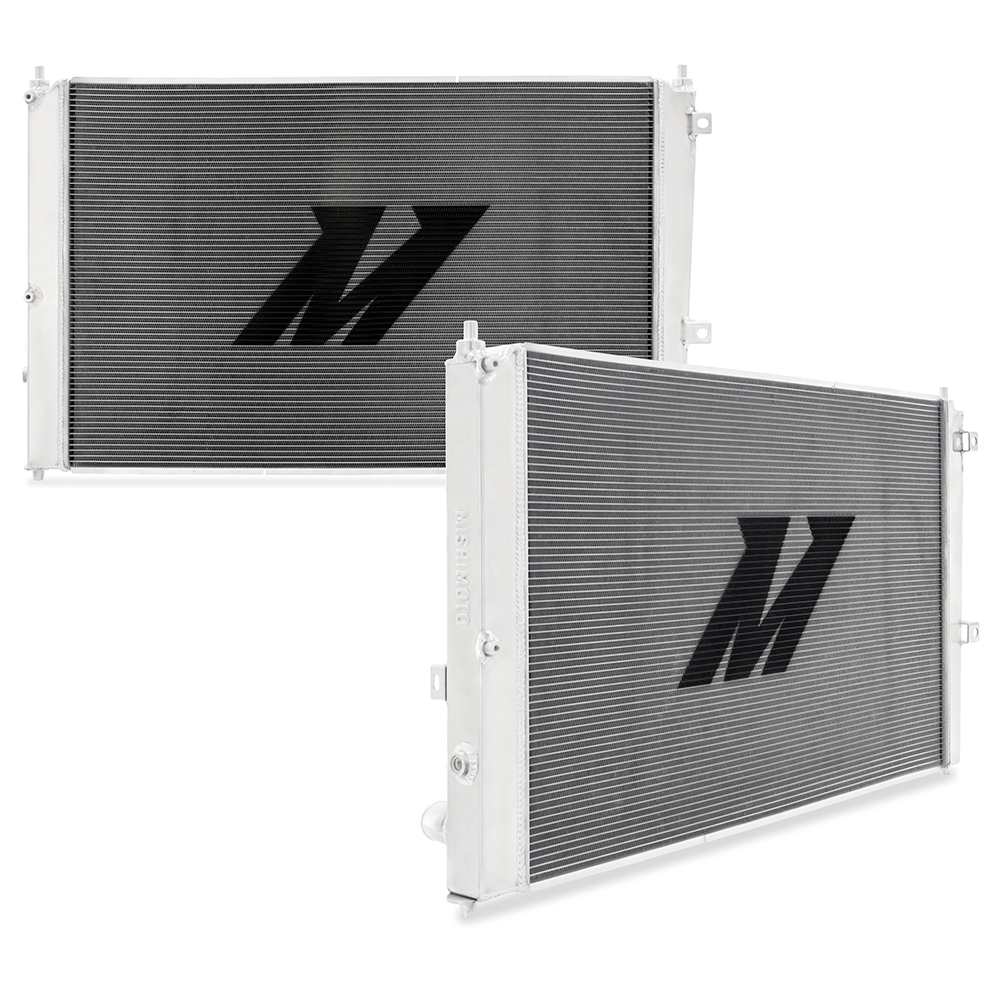

Performance Aluminum Radiator, fits Honda Civic 1.5T/2.0L 2016-2021 - Mishimoto - MMRAD-CIV-16

Keep engine temperatures under control on your 10th-gen 1.5T and 2.0L Honda Civic with the Mishimoto Performance Aluminum Radiator. The 10th-gen Civic is an incredible platform for a daily driver weekend autocross machine or full track build. However pushing the stock cooling system reveals it's one greatest flaw: an underperforming cooling system. To help solve this issue and keep your Civic pushing the limits longer we've designed an extremely precise all-aluminum radiator that provides both enhanced durability and cooling efficiency. The foundation of the Mishimoto Performance Aluminum Radiator is the 36mm-thick two-row core. Our engineers performed extensive testing to create a fin composition that would produce maximum heat transfer. This efficient core is fully TIG-welded to precise aluminum end tanks which mate perfectly with all factory equipment. Our radiator features a massive 43-percent increase in fluid capacity over stock for increased cooling capacity and endurance on the track or street. In addition the Mishimoto core design provides a 36-percent increase in external fin surface area to help transfer the heat out of your coolant and into the air. The results are lower coolant temperatures and quicker coolant temperature recovery making this the ideal upgrade for your 2016-2020 10th-gen Honda Civic 1.5T or 2.0L. This radiator includes a magnetic drain plug to help keep debris from clogging your cooling system and as with all our products this radiator includes the signature Mishimoto Lifetime Warranty for a lifetime of performance.
All-aluminum design with precision TIG-welded end tanks
31-percent increase in core volume for improved cooling capacity
36-percent increase in external fin surface area effectively transfers heat out of coolant
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: No
Overall Height: 18.11 IN
Core Height: 17.59 IN
Core Thickness: 1.41 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 26.65 IN
Core Row Quantity: 2
Inlet Diameter: 1.14 IN
Inlet Location: Top Left
Outlet Diameter: 1.14 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 31.25 IN
Overall Width: 3.58 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2016-2021 Honda Civic 1.5T (including Si)
SellingPoint02: All-aluminum design with precision TIG-welded end tanks
SellingPoint03: 31-percent increase in core volume for improved cooling capacity
SellingPoint04: 36-percent increase in external fin surface area effectively transfers heat out of coolant
SellingPoint05: 36mm-thick two-row core features strategically designed fins for optimal heat dissipation
SellingPoint06: Includes Mishimoto Magnetic Drain Plug to capture metallic debris within the cooling system
SellingPoint07: Pair with Mishimoto Silicone Coolant Hose Kit for further cooling system protection
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Honda Civic I4 (1.5T) 2016-2021--Honda Civic Si I4 (1.5T) 2016-2021
TechSpec Chassis Codes: FC--FK
TechSpec Core Height (in): 17.59
TechSpec Core Length (in): 26.65
TechSpec Core Thickness (in): 1.41
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: L15B7
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Aluminum Radiator-- Mishimoto Magnetic Drain Plug--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.14
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.14
TechSpec Overall Height (in): 18.11
TechSpec Overall Length (in): 31.25
TechSpec Overall Width (in): 3.58
TechSpec Rows: 2
