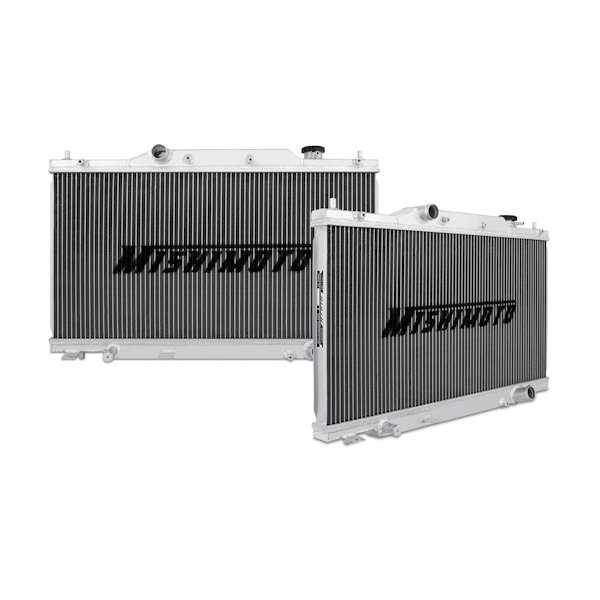

Performance Aluminum Radiator, fits Honda Civic SI 2002-2005 - Mishimoto - MMRAD-CIV-02SI

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Civic radiator. For a cooler more efficient running engine all Mishimoto radiators are designed and engineered to maximize cooling boost engine functions and most importantly prevent your car from overheating. Made with 100-percent brazed aluminum and polished end tanks this lightweight dual core radiator will enhance the overall performance and lifetime of your engine. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and are backed with limited lifetime warranty. Fits USDM EP3 Civic SI (2002-2005) Fits UKDM EP3 Civic Type R (2002-2005)
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 17.95 IN
Core Height: 26.23 IN
Core Thickness: 1.42 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 13.78 IN
Core Row Quantity: 2
Inlet Diameter: 1.26 IN
Inlet Location: Top Left
Outlet Diameter: 1.26 IN
Fluid Capacity: 1.58 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 26.93 IN
Overall Width: 1.92 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2002-2005 Honda Civic Si w/ K20 engine
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint05: Polished end tanks improve engine bay aesthetics
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2002-2005 UKDM EP3 Civic Type R
TechSpec Chassis Codes: EP3
TechSpec Core Height (in): 26.23
TechSpec Core Length (in): 13.78
TechSpec Core Thickness (in): 1.42
TechSpec DPI: 2574
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: K20a3
TechSpec Fluid Capacity (gal): 1.58
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.26
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.26
TechSpec Overall Height (in): 17.95
TechSpec Overall Length (in): 26.93
TechSpec Overall Width (in): 1.92
TechSpec Rows: 2
