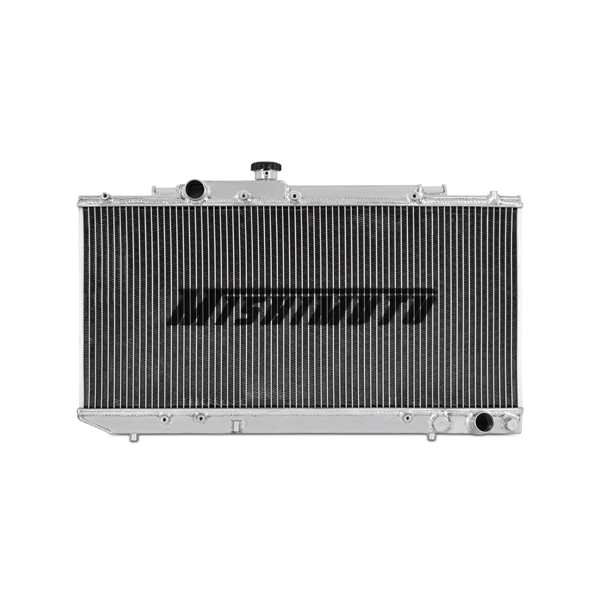

Performance Aluminum Radiator, fits Toyota Celica GT4 1989-1993 - Mishimoto - MMRAD-CEL-89

The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
Full aluminum design featuring robust TIG-welded construction
Ideal replacement for the failure-prone stock plastic end tank radiator
Features a two-row 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28.1 IN
Core Height: 27.5 IN
Core Thickness: 2.04 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 12.52 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.94 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 17.3 IN
Overall Width: 2.54 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1989-1994 Toyota Celica GT-Four/All-trac
SellingPoint02: Full aluminum design featuring robust TIG-welded construction
SellingPoint03: Ideal replacement for the failure-prone stock plastic end tank radiator
SellingPoint04: Features a two-row 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction
SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint06: Perfect for use under stressful driving conditions such as autocross rallycross or track events
SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: ST185
TechSpec Core Height (in): 27.5
TechSpec Core Length (in): 12.52
TechSpec Core Thickness (in): 2.04
TechSpec DPI: 1174
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 3S-GTE
TechSpec Fluid Capacity (gal): 1.94
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 28.1
TechSpec Overall Length (in): 17.3
TechSpec Overall Width (in): 2.54
TechSpec Rows: 2
