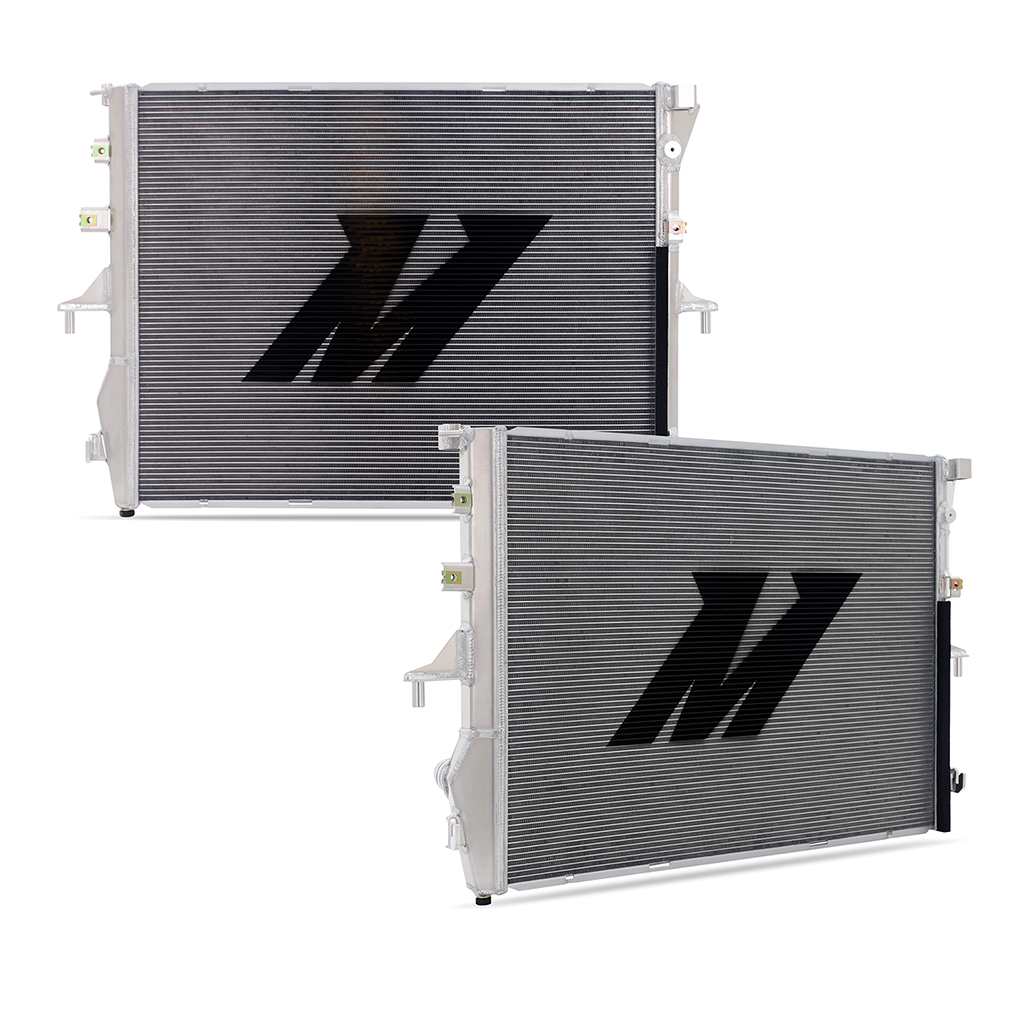

Performance Aluminum Radiator, fits Porsche Cayenne 2003-2010 - Mishimoto - MMRAD-CAY-03

Engineered specifically for the 2003-2010 Porsche Cayenne Mishimoto's Direct-Fit Performance Radiator is ideal for optimal vehicle cooling. Its single-row 40mm core and 3.4L fluid capacity maximize coolant flow while strutted tubes and OEM-style louvered fins enhance durability and airflow. A curved header plate and Porsche-specific expansion joints increase strength and longevity. Featuring a unique billet aluminum fan shroud lock thicker mounting points a CNC-machined inlet and outlet and a slotted magnetic drain plug. No modifications are required for a hassle-free installation. This radiator delivers exceptional performance and durability without compromising on ease of use.
Direct-Fit Performance Radiator for 2003-2010 Porsche Cayenne
Single row 40mm core maximizes coolant flow area for optimal performance
Strutted tubes ensure the strength of the radiator for robust durability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 23.22 IN
Core Height: 21.77 IN
Core Thickness: 1.5748 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 27.95 IN
Core Row Quantity: 1
Inlet Diameter: 1.52 IN
Inlet Location: Top Left
Outlet Diameter: 1.52 IN
Fluid Capacity: 0.9 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 36.38 IN
Overall Width: 4.74 IN
Install Difficulty: 5
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-Fit Performance Radiator for 2003-2010 Porsche Cayenne
SellingPoint02: Single row 40mm core maximizes coolant flow area for optimal performance
SellingPoint03: Strutted tubes ensure the strength of the radiator for robust durability
SellingPoint04: OEM-style louvered fin design to enhance airflow and cooling
SellingPoint05: Curved header plate enhances the core geometry to support increased strength better-brazed connection and larger contact area
SellingPoint06: Expansion joints explicitly designed for Porsche performance aiding in a reduction of stress on the radiator and extending the overall lifespan
SellingPoint07: The radiator has a 3.4L fluid capacity allowing for more fluid cooling over stock
SellingPoint08: The unique fan shroud locking mechanism is constructed from billet aluminum to mimic stock mounting for ease of installation unlike the commonly used thin sheet metal or plastic that historically cracks.
SellingPoint09: Updated thicker and stronger mounting points for the radiator AC condenser and transmission cooler
SellingPoint10: CNC-machined inlet and outlet for smooth airflow and sized to connect to OE-style hose fittings
SellingPoint11: Slotted magnetic drain plug makes services mess-free
SellingPoint12: Includes foam sealing for more efficient cooling and fitment.
SellingPoint13: Modifications are not needed allowing for an easier installation process
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Audi Q7 3.0L V6 2009-2015--Audi Q7 3.6L V6 2007-2010--Audi Q7 4.2L V8 2007-2010--Porsche Cayenne 3.2L V6 2004-2006--Porsche Cayenne 3.6L V6 2008-2010--Porsche Cayenne 4.5L V8 2003-2006--Porsche Cayenne 4.8L V8 2008-2010--Volkswagen Touareg 3.0L V6 2009-2010--Volkswagen Touareg 3.2L V6 2004-2006--Volkswagen Touareg 3.6L V6 2007-2010--Volkswagen Touareg 4.2L V8 2004-2009--Volkswagen Touareg 4.9L V10 2004--Volkswagen Touareg 5.0L V10 2005-2008
TechSpec Chassis Codes: PL71
TechSpec Core Height (in): 21.77
TechSpec Core Length (in): 27.95
TechSpec Core Thickness (in): 1.5748
TechSpec DPI: 2756
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec Engine Codes: M4801 M5501 M02.2Y M48.00 M4851 M4851S
TechSpec Fluid Capacity (gal): 0.9
TechSpec Includes: (1) Performance Aluminum Radiator--(2)O-Rings--Required Install Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.52
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.52
TechSpec Overall Height (in): 23.22
TechSpec Overall Length (in): 36.38
TechSpec Overall Width (in): 4.74
TechSpec Rows: 1
