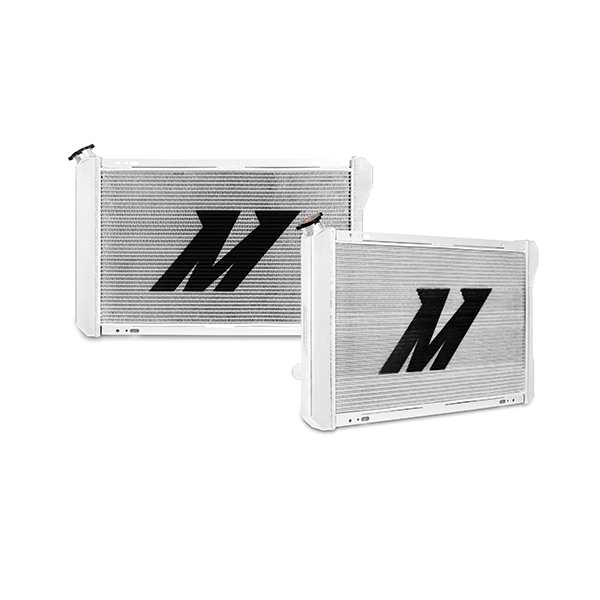

2-Row Performance Aluminum Radiator, fits Chevrolet Camaro / Firebird 1982-1992 - Mishimoto - MMRAD-CAM-82

A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the best upgrade in cooling efficiency that fits in your tight budget. The Mishimoto Aluminum Radiator utilizes a 2 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency. Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.
Full aluminum radiator featuring robust TIG-welded construction
Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 31.5 IN
Core Height: 16.5 IN
Core Thickness: 1.96 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 26.2 IN
Core Row Quantity: 2
Inlet Diameter: 1.37 IN
Inlet Location: Top Left
Outlet Diameter: 1.57 IN
Fluid Capacity: 4.63 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.5 IN
Overall Width: 4.5 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Full aluminum radiator featuring robust TIG-welded construction
SellingPoint02: Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
SellingPoint03: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint04: Polished aluminum end tanks enhance engine bay aesthetics
SellingPoint05: Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1982-1992 Chevrolet Camaro L6 and V8--1982-1992 Pontiac Firebird Trans Am
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.5
TechSpec Core Length (in): 26.2
TechSpec Core Thickness (in): 1.96
TechSpec DPI: 951
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: V6--V8
TechSpec Fluid Capacity (gal): 4.63
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal-- 1/8-inch NPT Plug-- 1/4-inch NPT Plugs--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.37
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 31.5
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (in): 4.5
TechSpec Rows: 2
