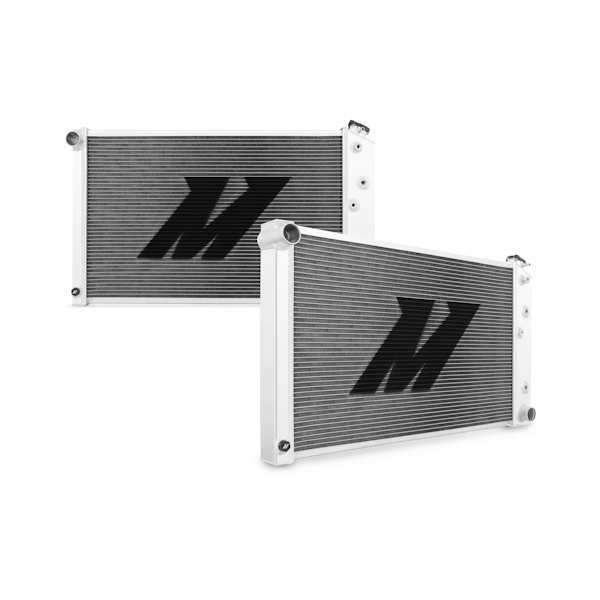

3-Row Performance Aluminum Radiator, fits Chevrolet Camaro 1970-1981 - Mishimoto - MMRAD-CAM-70X

The Mishimoto performance aluminum radiator for the Chevrolet Camaro is an ideal upgrade to the OEM radiator.Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must.The Mishimoto Chevrolet Camaro aluminum radiator features a massive 3 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check.Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures.The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks.This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.
Full aluminum radiator featuring robust TIG-welded construction
Massive three-row 2.05-in thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 31 IN
Core Height: 16.69 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 26.18 IN
Core Row Quantity: 3
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.57 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 18.9 IN
Overall Width: 4.2 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
SellingPoint02: Full aluminum radiator featuring robust TIG-welded construction
SellingPoint03: Massive three-row 2.05-in thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint05: Polished aluminum end tanks enhance engine bay aesthetics
SellingPoint06: Includes Mishimoto M12 x 1.5-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Buick Century 3.8L V6 1976--Buick Century 5.7L V8 1973-1976--Buick Century 7.5L V8 1973--Buick Electra 3.0L V6 1985--Buick Electra 3.8L V6 1985-1989--Buick Electra 4.1L V6 1980-1984--Buick Electra 4.3L V6 1985--Buick Electra 4.9L V8 1980--Buick Electra 5.0L V8 1984-1989--Buick Electra 5.7L V8 1976-1985--Buick Electra 6.6L V8 1979--Buick Electra 7.5L V8 1972-1976--Buick Estate Wagon 5.7L V8 1973-1978--Buick Estate Wagon 6.6L V8 1977-1978--Buick Estate Wagon 7.5L V8 1973-1974--Buick LeSabre 3.8L V6 1976-1988--Buick LeSabre 4.1L V6 1980-1984--Buick LeSabre 4.9L V8 1979-1980--Buick LeSabre 5.0L V8 1983-1988--Buick LeSabre 5.7L V8 1971-1984--Buick LeSabre 6.6L V8 1975--Buick LeSabre 7.5L V8 1971-1976--Buick Regal 3.8L V6 1975-1976--Buick Regal 5.7L V8 1975-1976--Buick Riviera 3.8L V6 1980-1981--Buick Riviera 4.1L V6 1981--Buick Riviera 5.0L V8 1980-1981--Buick Riviera 5.7L V8 1977-1981--Buick Riviera 6.6L V8 1977--Buick Riviera 7.5L V8 1976--Buick Skylark 4.1L L6 1969--Buick Skylark 5.7L V8 1969--Cadillac Calais 7.7L V8 1968-1969--Cadillac DeVille 7.7L V8 1974--Cadillac Eldorado 4.1L V6 1982--Cadillac Eldorado 4.1L V8 1982--Cadillac Eldorado 5.7L V8 1982--Cadillac Eldorado 7.0L V8 1978--Cadillac Eldorado 8.2L V8 1970-1974--Cadillac Fleetwood 7.7L V8 1971-1974--Cadillac Seville 5.7L V8 1980--Cadillac Seville 6.0L V8 1980--Chevrolet Blazer 4.1L L6 1973-1974--Chevrolet Blazer 4.8L L6 1973-1974--Chevrolet Blazer 5.0L V8 1973--Chevrolet Blazer 5.7L V8 1973-1974--Chevrolet Blazer 7.4L V8 1973-1974--Chevrolet C10 Suburban 4.1L L6 1973-1980--Chevrolet C10 Suburban 4.8L L6 1973--Chevrolet C10 Suburban 5.0L V8 1973-1977--Chevrolet C10 Suburban 5.7L V8 1973-1980--Chevrolet C10 Suburban 7.4L V8 1973-1980--Chevrolet C10 4.1L L6 1976-1980--Chevrolet C10 4.8L L6 1976-1980--Chevrolet C10 5.0L V8 1980--Chevrolet C10 5.7L V8 1976-1980--Chevrolet C10 6.6L V8 1976-1980--Chevrolet C10 7.4L V8 1976-1980--Chevrolet C20 Suburban 4.1L L6 1973-1974
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.69
TechSpec Core Length (in): 26.18
TechSpec Core Thickness (in): 2.05
TechSpec DPI: 162
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--(2) 1/8-inch NPT Plugs--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 31
TechSpec Overall Length (in): 18.9
TechSpec Overall Width (in): 4.2
TechSpec Rows: 3
