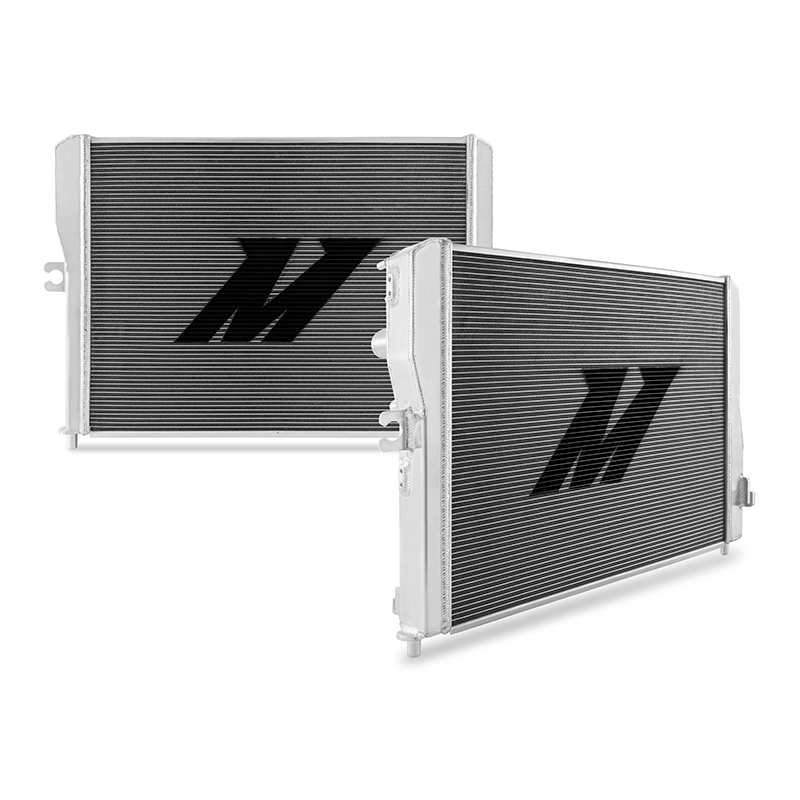

Performance Aluminum Radiator, fits Chevrolet C7 Corvette Stingray/Z06 2014-2019 - Mishimoto - MMRAD-C7-14

Give your C7 the cooling boost it needs with the Mishimoto 2014-2019 Chevrolet Corvette Performance Aluminum Radiator. It's no secret that the C7 had a spotty start and was riddled with overheating issues and It's no wonder with the radiator that Chevy gave it from the factory. Even though this radiator might not be pulling double or triple duty cooling the transmission and oil like what we found in previous Corvette generations the thin core paired with the plastic end tanks is no match for the mighty LT1 and LT4. The Mishimoto C7 Corvette Performance Aluminum Radiator gives you some piece of mind in the cooling department. Our all-aluminum design features a 2-inch thick core sporting two rows of coolant channels which equates to a 38-percent increase in core volume. The Mishimoto radiator also increases the fin surface area by 135-percent. When coupled with the volume increase you get a 5 F drop in outlet temperatures throughout the powerband. The all-aluminum end tanks TIG-welded to the core mean that it doesn't just look the part it acts the part and is a perfect upgrade for durability on top of the performance gains. The inverted header plate and specialized AC condenser brackets mean that fitment and installation is a breeze and like all of our products the Mishimoto 2014-2019 Chevrolet C7 Corvette Performance Aluminum Radiator is covered under the Mishimoto Lifetime Warranty.
Full aluminum construction with durable TIG-welded end tanks
Integrated end-tank oil and automatic transmission coolers
Drops outlet temperature by 5F across powerband
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 17.1 IN
Core Height: 0 IN
Core Thickness: 2 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 0 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Right
Outlet Diameter: 0 IN
Fluid Capacity: 3 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 24.6 IN
Overall Width: 3.9 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2014-2019 C7 Chevrolet Corvette
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Integrated end-tank oil and automatic transmission coolers
SellingPoint04: Drops outlet temperature by 5F across powerband
SellingPoint05: Features a two-row 2-in thick brazed aluminum core providing ideal fluid temperatures on the street and at the track
SellingPoint06: 56-percent increase in fin surface area for optimal cooling properties
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2014-2019 Chevrolet Corvette Stingray--2014-2019 Chevrolet Corvette Z06
TechSpec Chassis Codes: C7
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: LT1--LT4
TechSpec Fluid Capacity (gal): 3
TechSpec Includes: Aluminum Radiator--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 17.1
TechSpec Overall Length (in): 24.6
TechSpec Overall Width (in): 3.9
TechSpec Rows: 2
