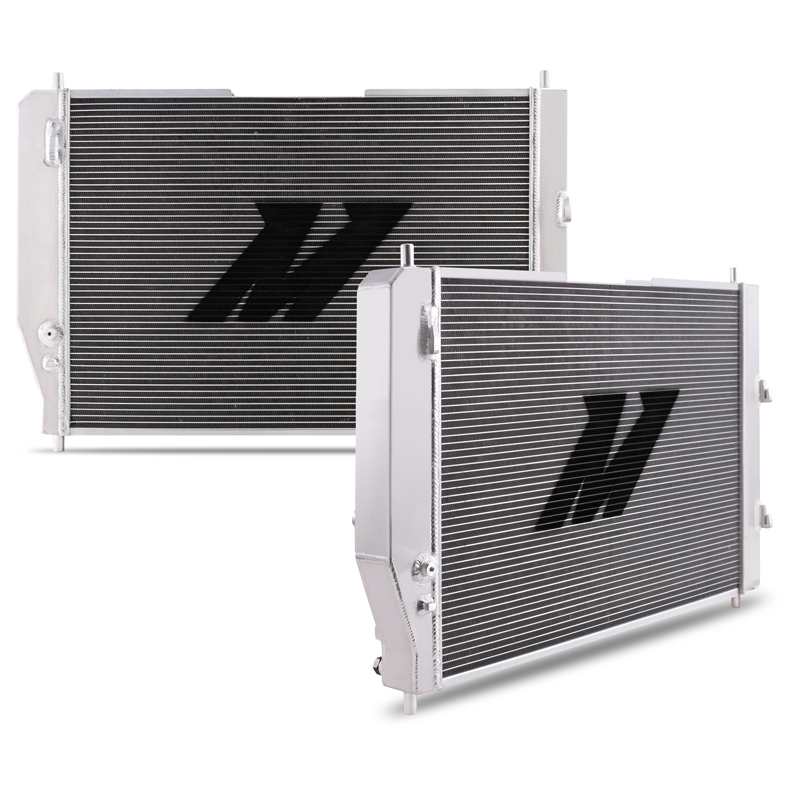

Performance Aluminum Radiator, fits Chevrolet Corvette 2005-2013 - Mishimoto - MMRAD-C6-05

Keep your C6 on the track longer with the Mishimoto 2005-2013 Chevrolet Corvette Performance Aluminum Radiator. It's no secret that Chevy throttled the C6 Corvette?s cooling system with the limited airflow and undersized radiator equipped from the factory. There's no way to bring your track day to a screeching halt like an overheated LS engine. Mishimoto is here to help by way of swapping out ill-equipped stock plastic radiator with our all aluminum performance radiator. We started by ditching the plastic in the end-tanks for TIG-welded aluminum both increasing the size and improving the longevity. Our improvements didn?t? stop at the end tanks either. Our engineer redesigned the core with two rows of coolant passages and bumped the thickness to two inches. This new design equates to a 56-percent increase in fin surface area 45-percent increase in volume contributing to improved cooling properties.The Mishimoto 2005-2013 Chevrolet Corvette Performance Aluminum Radiator also features engine oil and automatic transmission coolers integrated into the end tanks ensuring that It's a direct fit for your C6 no matter the cooling package equipped. The Mishimoto C6 Performance Radiator also includes the Mishimoto Lifetime Warranty.
Full aluminum construction with durable TIG-welded end tanks
Integrated end-tank oil and automatic transmission coolers
Drops outlet temperature by 5F across powerband
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 0 IN
Core Height: 18 IN
Core Thickness: 2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 24 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 0 IN
Overall Width: 0 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2005-2013 C6 Chevrolet Corvette
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Integrated end-tank oil and automatic transmission coolers
SellingPoint04: Drops outlet temperature by 5F across powerband
SellingPoint05: Features a two-row 2-in thick brazed aluminum core providing ideal fluid temperatures on the street and at the track
SellingPoint06: 56-percent increase in fin surface area for optimal cooling properties
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08: Patent numberD905 759
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2005-2013 Chevrolet Corvette--2006-2009 Chevrolet Corvette Z51--2006-2013 Chevrolet Corvette Z06--2010-2013 Chevrolet Corvette Grand Sport
TechSpec Chassis Codes: C6
TechSpec Core Height (in): 18
TechSpec Core Length (in): 24
TechSpec Core Thickness (in): 2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: LS2--LS3--LS7
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Aluminum Radiator--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 2
