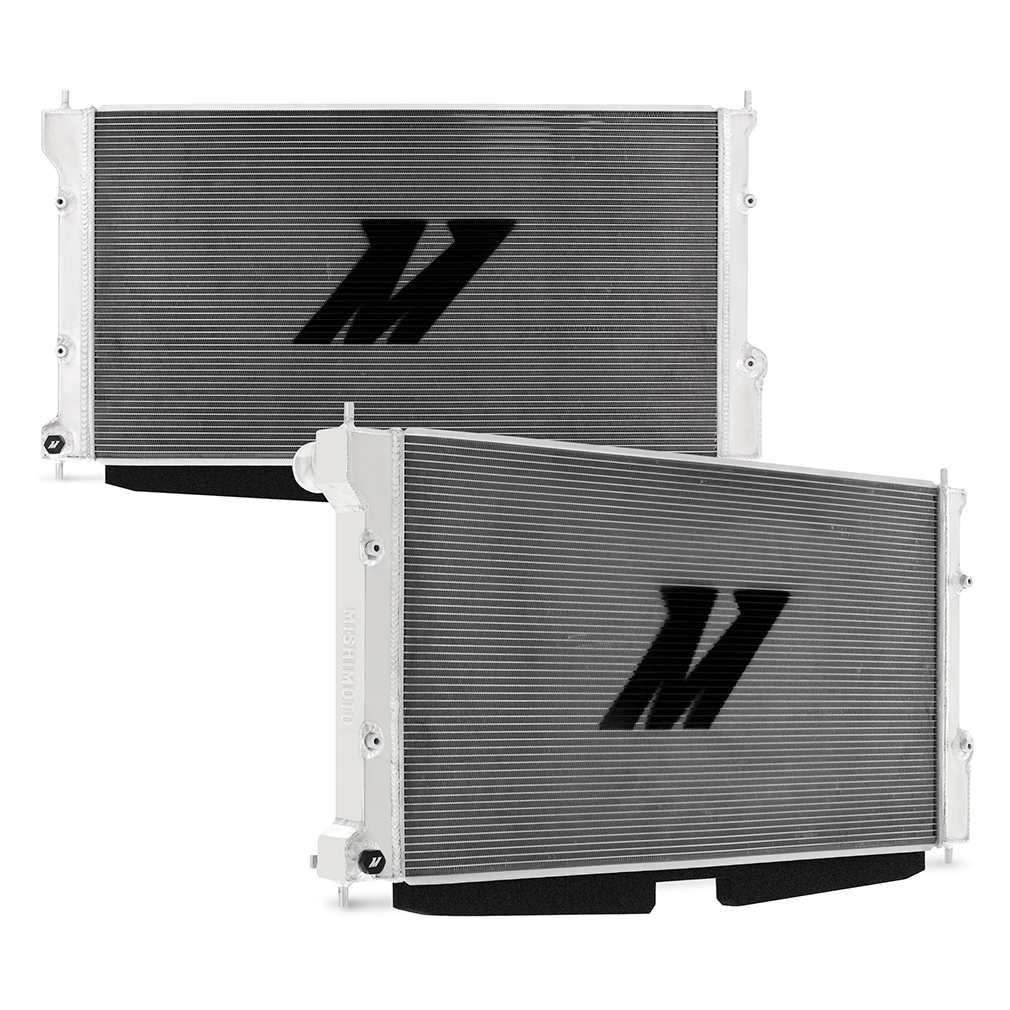

Performance Aluminum Radiator, fits Subaru BRZ/Toyota GR86 2022+ - Mishimoto - MMRAD-BRZ-22

Sliding sideways banging off the limiter and having fun are what the BRZ and GR86 were made for. But all that fun translates to a lot of heat and keeping your FA24 engine cool with limited airflow through the BRZ's small grille is a monumental challenge. Luckily Mishimoto has developed a performance aluminum radiator for the 2022+ Subaru BRZ and Toyota GR86 that's up to the task.----This all-aluminum performance radiator is a drop-in upgrade for your BRZ that will help keep coolant temps down when you're blasting the corners on the track or just having fun (within the speed limit) on your favorite back road. Our radiator features a 36mm-thick 2-row core that balances optimal coolant flow with improved heat transfer capability. With a core volume 34 percent greater than stock our radiator pulls more heat out of a larger volume of coolant than stock to keep your engine cool under even the most demanding conditions. Louvered fins provide a 51 percent increase in cooling surface area over the stock radiator and help slow incoming air while circulating it across the coolant tubes improving heat transfer and making the most of every gram of air coming through the grille.----We've even thought of the little things with our 2022+ BRZ/GR86 radiator. The included foam shrouding helps direct air through the core instead of around it so none of it is wasted. Our slotted drain plug helps keep maintenance mess-free and your shop floor or driveway dry. And like all Mishimoto radiators this 2022+ Subaru BRZ and Toyota GR86 performance aluminum radiator is backed by our Mishimoto Lifetime Warranty for a lifetime of cooling and smiles around every corner.
34 percent increase in core volume lets you spend more time on the track without overheating
51 percent increase in fin surface area improves heat transfer
36mm-thick core with louvered fins makes the most of air moving through the grille
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 15.98 IN
Core Height: 14.02 IN
Core Thickness: 1.42 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 25.55 IN
Core Row Quantity: 2
Inlet Diameter: 1.58 IN
Inlet Location: Top Right
Outlet Diameter: 1.58 IN
Fluid Capacity: 0.54 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 30.1 IN
Overall Width: 4.43 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2022+ Subaru BRZ and Toyota GR86
SellingPoint02: 34 percent increase in core volume lets you spend more time on the track without overheating
SellingPoint03: 51 percent increase in fin surface area improves heat transfer
SellingPoint04: 36mm-thick core with louvered fins makes the most of air moving through the grille
SellingPoint05: Two-row core balances optimal flow and heat transfer
SellingPoint06: Included foam shrouding directs air through the core for maximum cooling
SellingPoint07: Precision TIG-welded end tanks resist vibration and impacts on the track or street
SellingPoint08: Slotted drain plug makes maintenance mess-free
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2021+ Subaru BRZ H4 2.4L--2021+ Toyota GR86 H4 2.4L--2013-2020 Subaru BRZ H4 2.0L--2013-2016 Scion FR-S H4 2.0L--2017-2020 Toyota GT86 H4 2.0L
TechSpec Chassis Codes: ZC6--ZN6--ZN8--ZD8
TechSpec Core Height (in): 14.02
TechSpec Core Length (in): 25.55
TechSpec Core Thickness (in): 1.42
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec Engine Codes: FA20--4U-GSE--FA24D
TechSpec Fluid Capacity (gal): 0.54
TechSpec Includes: (1) Performance Aluminum Radiator--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.58
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 1.58
TechSpec Overall Height (in): 15.98
TechSpec Overall Length (in): 30.1
TechSpec Overall Width (in): 4.43
TechSpec Rows: 2
