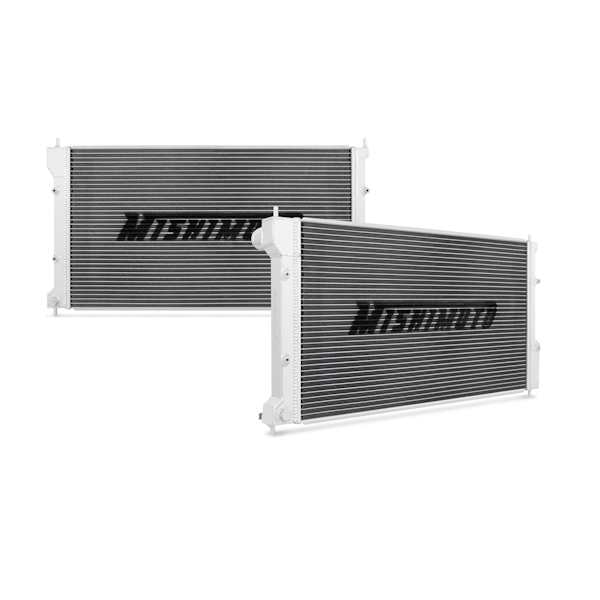

Performance Aluminum Radiator, fits Subaru BRZ 2013-2021 / Toyota GT86 2017-2021 - Mishimoto - MMRAD-BRZ-13

The 2013-2021 Subaru BRZ / Scion FR-S is the perfect car for tearing up back roads or hitting the autocross course. Aggressive driving results in increased engine temperatures necessitating an effective solution for keeping your flat four cool. Mishimoto has the perfect upgrade the 2013-2021 Subaru BRZ / Scion FR-S performance aluminum radiator to eliminate rising temperatures. The Mishimoto 2013-2021 Subaru BRZ / FR-S radiator features all-aluminum construction with TIG-welded end tanks and a 100-percent brazed aluminum core. This radiator is constructed from high-quality aircraft aluminum with a polished finish for the perfect combination of performance and style. The Mishimoto 2013-2021 Subaru BRZ / FR-S radiator is precision engineered for flawless drop-in fitment while providing increased cooling capacity and efficiency. As with all our products this radiator includes the Mishimoto lifetime warranty.
Increased cooling capacity
100-percent brazed aluminum core
TIG-welded to perfection
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 16.25 IN
Core Height: 14 IN
Core Thickness: 1.37 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 25.6 IN
Core Row Quantity: 2
Inlet Diameter: 1.57 IN
Inlet Location: Top Right
Outlet Diameter: 1.57 IN
Fluid Capacity: 2.15 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 30.13 IN
Overall Width: 4.3 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Increased cooling capacity
SellingPoint02: Direct fit for the 2013-2021 Subaru BRZ
SellingPoint03: 100-percent brazed aluminum core
SellingPoint04: TIG-welded to perfection
SellingPoint05: Lifetime warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2013-2021 Subaru BRZ--2013-2016 Scion FR-S--2017-2021 Toyota GT86
TechSpec Chassis Codes: ZC6--ZN6
TechSpec Core Height (in): 14
TechSpec Core Length (in): 25.6
TechSpec Core Thickness (in): 1.37
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: FA20--4U-GSE
TechSpec Fluid Capacity (gal): 2.15
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Additional Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.57
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 16.25
TechSpec Overall Length (in): 30.13
TechSpec Overall Width (in): 4.3
TechSpec Rows: 2
