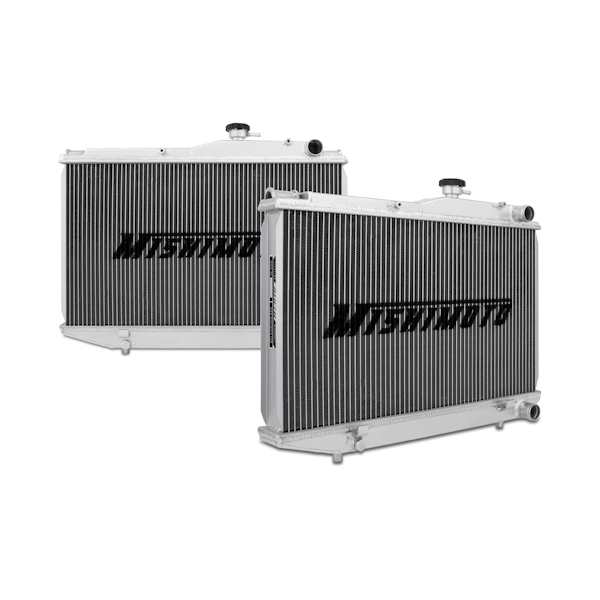

Performance Aluminum Radiator, fits Toyota Corolla AE86 1983-1987 - Mishimoto - MMRAD-AE86-83

The performance aluminum radiator is the ideal upgrade to the stock radiator especially for those looking to enhance the overall performance and lifetime of their engine. With a direct OEM fit installation is effortless no cutting or modification is required. All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly protect your vehicle from overheating.
Full aluminum construction featuring high-quality durable TIG-welding
Two-row 2.05-in thick brazed aluminum core for optimal heat transfer
Effectively regulates fluid temperatures ideal for use during aggressive driving such as drifting autocross rallycross track days etc.
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 23.15 IN
Core Height: 12.79 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22.16 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.67 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 18.3 IN
Overall Width: 3.81 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1983-1987 Toyota Corolla AE86 1.6L RWD
SellingPoint02: Full aluminum construction featuring high-quality durable TIG-welding
SellingPoint03: Two-row 2.05-in thick brazed aluminum core for optimal heat transfer
SellingPoint04: Effectively regulates fluid temperatures ideal for use during aggressive driving such as drifting autocross rallycross track days etc.
SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint06: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: AE86
TechSpec Core Height (in): 12.79
TechSpec Core Length (in): 22.16
TechSpec Core Thickness (in): 2.05
TechSpec DPI: 747
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 4A-GEC4A-GEU4A-C4A-U
TechSpec Fluid Capacity (gal): 1.67
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 23.15
TechSpec Overall Length (in): 18.3
TechSpec Overall Width (in): 3.81
TechSpec Rows: 2
