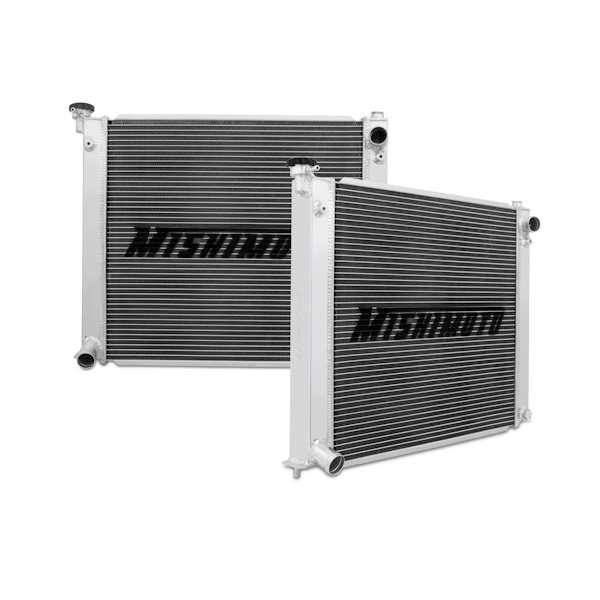

Performance Aluminum Radiator, fits Nissan 300ZX Turbo 1990-1996 - Mishimoto - MMRAD-300ZX-90T

The Mishimoto Nissan 300ZX performance aluminum radiator is engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 300ZX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan 300ZX radiator.
Full aluminum construction featuring high-quality durable TIG-welding
Two-row 2.05-in thick brazed aluminum core provides optimal fluid temperature reductions during aggressive driving and/or hot-weather environments
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 27.2 IN
Core Height: 18.31 IN
Core Thickness: 2.05 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 19.68 IN
Core Row Quantity: 2
Inlet Diameter: 1.4 IN
Inlet Location: Top Right
Outlet Diameter: 1.4 IN
Fluid Capacity: 2.69 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 20.2 IN
Overall Width: 2.55 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1990-1996 Nissan 300ZX Twin Turbo
SellingPoint02: Full aluminum construction featuring high-quality durable TIG-welding
SellingPoint03: Two-row 2.05-in thick brazed aluminum core provides optimal fluid temperature reductions during aggressive driving and/or hot-weather environments
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: Z32
TechSpec Core Height (in): 18.31
TechSpec Core Length (in): 19.68
TechSpec Core Thickness (in): 2.05
TechSpec DPI: 1151
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: VG30DETT
TechSpec Fluid Capacity (gal): 2.69
TechSpec Includes: Mishimoto Radiator--Bleeder Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.4
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.4
TechSpec Overall Height (in): 27.2
TechSpec Overall Length (in): 20.2
TechSpec Overall Width (in): 2.55
TechSpec Rows: 2
