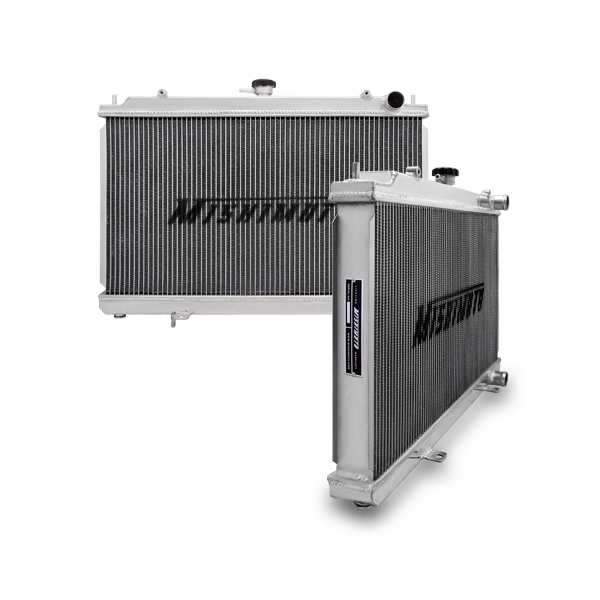

Performance Aluminum Radiator, fits Nissan 240SX KA Engine 1995-1998 - Mishimoto - MMRAD-240-95KA

The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Nissan 240SX radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.For even more cooling efficiency check out the Mishimoto lightweight Nissan fan shroud for your 240sx.
Full aluminum construction featuring high-quality durable TIG-welding
Two-row 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.3 IN
Core Height: 25.12 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.13 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 1.97 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 20 IN
Overall Width: 2.47 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1995-1998 Nissan 240SX W/ KA24 Engine
SellingPoint02: Full aluminum construction featuring high-quality durable TIG-welding
SellingPoint03: Two-row 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1997 Nissan 240sx LE--1995-1997 Nissan 240sx SE
TechSpec Chassis Codes: S14
TechSpec Core Height (in): 25.12
TechSpec Core Length (in): 14.13
TechSpec Core Thickness (in): 1.97
TechSpec DPI: 1751
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: KA24DE
TechSpec Fluid Capacity (gal): 1.97
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 26.3
TechSpec Overall Length (in): 20
TechSpec Overall Width (in): 2.47
TechSpec Rows: 2
