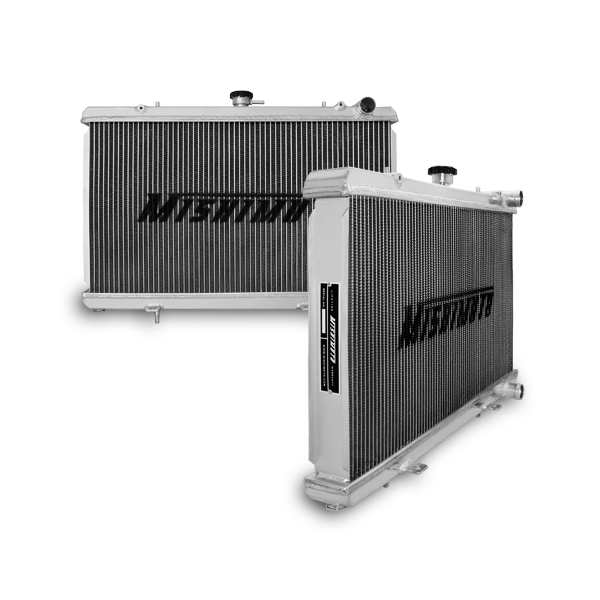

Performance Aluminum Radiator, fits Nissan 240SX KA Engine 1989-1994 - Mishimoto - MMRAD-240-89KA

The Mishimoto performance aluminum radiator for the Nissan 240SX is designed and engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Nissan 240SX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required making this the ideal upgrade to the stock Nissan 240SX radiator.Check out the Mishimoto lightweight aluminum Nissan 240sx fan shroud for even more cooling efficiency.
Full aluminum construction featuring high-quality durable TIG-welding
Two-row 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 19.6 IN
Core Height: 13.13 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.12 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Right
Outlet Diameter: 1.25 IN
Fluid Capacity: 2 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 26.3 IN
Overall Width: 2.4 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1989-1994 Nissan 240SX W/ KA24 Engine
SellingPoint02: Full aluminum construction featuring high-quality durable TIG-welding
SellingPoint03: Two-row 1.97-in thick brazed aluminum core provides ideal fluid temperatures on and off the track
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1991-1992 Nissan 240sx LE--1989-1994 Nissan 240sx SE
TechSpec Chassis Codes: S13
TechSpec Core Height (in): 13.13
TechSpec Core Length (in): 25.12
TechSpec Core Thickness (in): 1.97
TechSpec DPI: 1276/46
TechSpec Drain Plug Thread Size: M16 x 0.06
TechSpec Engine Codes: KA24EKA24DE
TechSpec Fluid Capacity (gal): 2
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto transmission cooler (P/N: MMTC-U).
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 19.6
TechSpec Overall Length (in): 26.3
TechSpec Overall Width (in): 2.4
TechSpec Rows: 2
