Oil Cooler Kit, Black, Thermostatic, fits Subaru WRX 2015-2021 - Mishimoto - MMOC-WRX-15TBK

High oil temperatures can wreak havoc on your high-performance FA20 DIT. Protect your investment with the Mishimoto direct-fit thermostatic oil cooler kit designed specifically for the 2015+ Subaru WRX. The WRX has tons to offer with its turbocharged engine and fantastic AWD system but the stock liquid-to-liquid oil cooler cannot handle prolonged aggressive driving conditions. This kit is designed to replace the stock liquid-to-liquid with a Mishimoto'sandwich Plate with Rear-Mounted Thermostat which includes a built-in thermostat with a 185 Degrees Fahrenheit / 85 Degrees Celsius activation temperature. Properly regulated oil temperatures become even more important if you have modified your vehicle or spend time tracking your WRX. Mishimoto's direct-fit oil cooler is engineered to reduce oil temperatures and extend the life of your engine. For optimal airflow and cooling this kit includes a large 19-row cooler that is mounted in the front bumper with robust application-specific brackets. The included application-specific silicone liquid-to-liquid heat exchanger bypass hose provides a clean look in the engine bay. This kit includes preassembled stainless steel lines with -10AN fittings to help direct the oil to and from the cooler. With this setup your WRX can achieve a XX Degrees Fahrenheit (XX.X Degrees Celsius) drop in oil temperatures with minimal pressure loss. The Mishimoto Subaru WRX Thermostatic Oil Cooler Kit is available with either a Sleek Silver or Stealth Black oil cooler. As with all our products this kit includes the Mishimoto Lifetime Warranty.
Proven 20 F (11.1 C) drop in oil temperature
Full bolt-on oil cooling solution for street and track vehicles
No modification necessary for installation
Inlet Outside Diameter: 0 IN
Outlet Outside Diameter: 0 IN
Base Height: 0 IN
Color: Black
Finish: Anodized
Width: 0 IN
Core Height: 5.43 IN
Core Thickness: 1.97 IN
Core Width: 11 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 0 GA
Core Color: Black
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: N/A
OptionLabel: Black Cooler Thermostatic
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2021 Subaru WRX
SellingPoint02: Proven 20 F (11.1 C) drop in oil temperature
SellingPoint03: Full bolt-on oil cooling solution for street and track vehicles
SellingPoint04: No modification necessary for installation
SellingPoint05: Billet aluminum thermostatic oil sandwich plate allows oil to reach optimum temperature
SellingPoint06: 19-row oil cooler strategically mounted in the lower grille for maximum airflow
SellingPoint07: CNC-machined aluminum spacer for the oil sandwich plate
SellingPoint08: Silicone hose bypasses stock liquid-to-liquid heat exchanger
SellingPoint09: Includes preassembled stainless steel braided oil lines with -10AN fittings
SellingPoint10: Cooler available in Sleek Silver or Stealth Black
SellingPoint11: Increases oil capacity by 0.75 qt
SellingPoint12: This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 Subaru WRX
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation.
TechSpec Chassis Codes: VA
TechSpec Core Construction: N/A
TechSpec Core Height (in): 5.43
TechSpec Core Length (in): 11
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA20DIT
TechSpec Fluid Capacity (qts): N/A

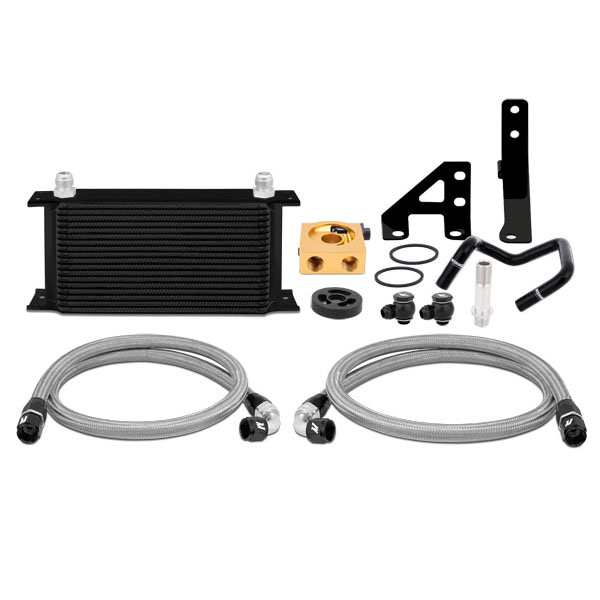

TechSpec Includes: Application-Specific Mounting Brackets--Application-Specific Oil Sandwich Plate--19-Row Oil Cooler--4ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--5ft Stainless Steel Braided Hose w/ 45 and 90 -10AN Fittings--Stainless Steel Sandwich Plate Adapter M20 x M20--Banjo Fitting w/ Bolt M20 x -10AN Black--Large O-Ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note: THIS OIL COOLER KIT WILL NOT FIT WITH THE MISHIMOTO 2015+ WRX FRONT-MOUNT INTERCOOLER KIT
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 19
