Oil Cooler Kit, Silver, fits Subaru WRX/STI 2001-2005 - Mishimoto - MMOC-WRX-01

Mishimoto proudly announces the all-new 2001-05 Subaru WRX/STi Oil Cooler KIt'specially designed for your Subaru WRX and STi the Mishimoto oil cooler is a direct fit and can be installed in just two hours! Mounted in the front grille for optimal airflow the Mishimoto Subaru WRX/STi oil cooler kit drops temperatures over 20 degrees.You can be sure that this kit is perfect for keeping your Subaru WRX or STi cool under any driving conditions.The Mishimoto 2001-2005 Subaru WRX/STi Oil Cooler Kit comes with a Lifetime Warranty so you know quality is guaranteed! Available with either silver or a stealth black cooler this kit is perfect for your street or track Subaru!
Provides Dramatic Temperature Drop
2 psi pressure loss
Thermostatic option available
Inlet Outside Diameter: 0 IN
Outlet Outside Diameter: 0 IN
Base Height: 0 IN
Color: Silver
Finish: Anodized
Width: 0 IN
Core Height: 2.76 IN
Core Thickness: 1.97 IN
Core Width: 11 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 0 GA
Core Color: Silver
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: 3
OptionLabel: Silver Cooler Non-Thermostatic
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Provides Dramatic Temperature Drop
SellingPoint02: 2 psi pressure loss
SellingPoint03: Direct fit for the Subaru WRX/STI 2001-2005
SellingPoint04: Thermostatic option available
SellingPoint05: Stealth black and sleek silver cooler options
SellingPoint06: Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2001-2005 Subaru WRX--2004-2005 Subaru STI
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation.
TechSpec Chassis Codes: GD
TechSpec Core Construction: N/A
TechSpec Core Height (in): 2.76
TechSpec Core Length (in): 11
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: EJ205--EJ255
TechSpec Fluid Capacity (qts): N/A

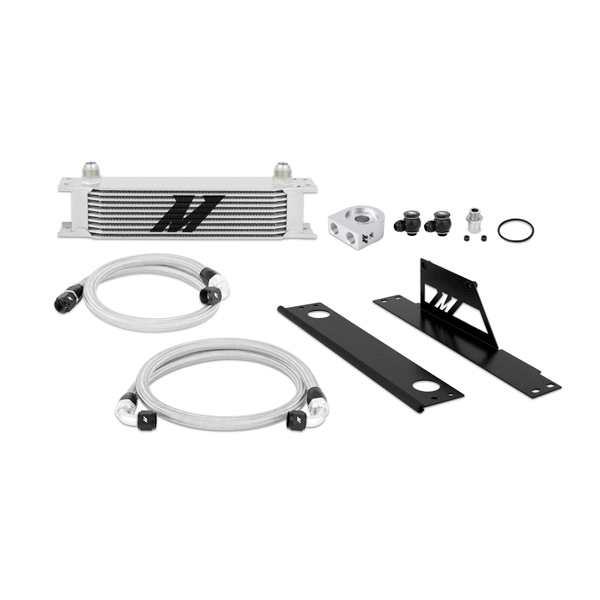

TechSpec Includes: Application-Specific Mounting Brackets--10-Row Oil Cooler--3-ft Stainless Steel Braided Hose w/ -10AN Fittings--4-ft 4-in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--Stainless Steel Sandwich Plate Adapter M20--Banjo Fitting w/ Bolt M20 x -10AN Black--Black Rubber Seal--Mounting Hardware Set--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note: Requires trimming of exhaust heat shield for proper installation. Will not fit on vehicles equipped with front mount intercoolers. Fits automatic and manual applications.
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 10
