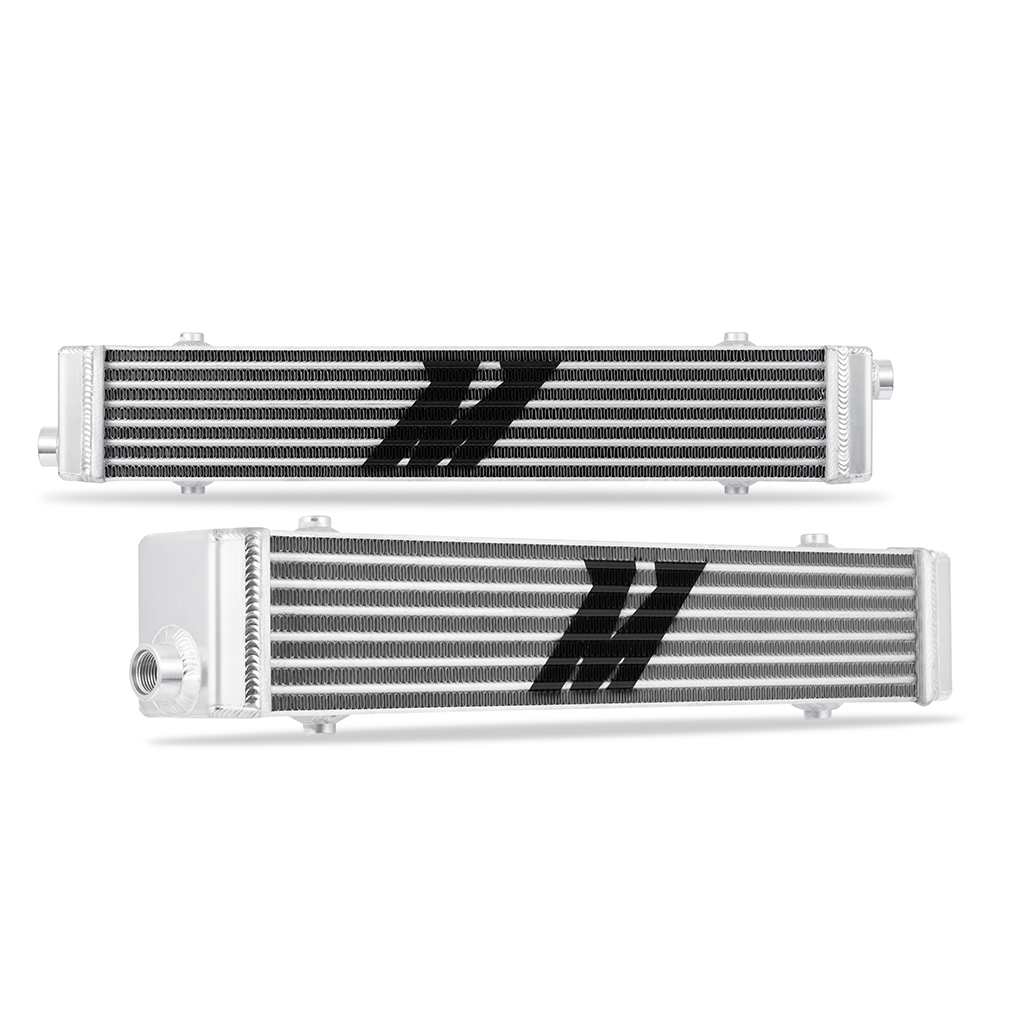

Universal Oil Cooler, Tube and Fin Crossflow, Silver - Mishimoto - MMOC-TF589-N

Sometimes you just need a simple no-frills cooler to ensure your oil stays at the right temperature no matter what. This Mishimoto tube-and-fin crossflow performance oil cooler is what you've been searching for. We designed this cooler using a highly efficient tube-and-fin core to meet the demands of high-performance applications while maintaining light weight. But don't take its simple exterior for granted this cooler packs in the performance. The leading edges of our cooler's tubes are rounded to allow incoming air to pass smoothly through the core without deflection. There the louvered fins force the air to wind through the core increasing time in contact with the fins and improving heat transfer. Finally the interiors of the tubes feature turbulators that increase tube surface area and agitate the oil to ensure it contacts the entire tube further increasing heat transfer. These features combine to create a lightweight oil cooler that's efficient enough to meet the needs of even high-performance vehicles. The full-aluminum TIG-welded end tanks ensure leak-free performance in the harshest environments. The compact 23-inch x 4-inch x 3-inch overall size and universal M8x1.25 mounting bosses on the top and bottom of the core make mounting this oil cooler in the bumper or front cooling stack easy. -10 ORB inlet and outlet are compatible with many widely available -AN adapters including Mishimoto's -10 ORB to -10AN and 3/4-inch fittings. Combine this with our PFTE or CPE braided steel lines and -AN fittings for a bulletproof oil cooling solution. Like all Mishimoto products this tube-and-fin crossflow performance oil cooler features our Mishimoto Lifetime Warranty for a lifetime of performance.
Tube-and-fin construction for light weight and effective cooling
Extruded tubes for increased strength and improved airflow
Louvered fins and turbulated tubes improve heat transfer
Inlet Outside Diameter: 0 IN
Outlet Outside Diameter: 0 IN
Base Height: 4.72 IN
Color: Silver
Finish: Anodized
Width: 3.15 IN
Core Height: 0 IN
Core Thickness: 0 IN
Core Width: 20.47 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 1.24 GA
Core Color: Silver
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Tube-and-fin construction for light weight and effective cooling
SellingPoint02: Extruded tubes for increased strength and improved airflow
SellingPoint03: Louvered fins and turbulated tubes improve heat transfer
SellingPoint04: 23-inL x 4-inH x 3-inW overall size is ideal for bumper-mounted applications
SellingPoint05: Four M8x1.25 mounting bosses for easy mounting
SellingPoint06: -10 ORB inlet and outlet accept Mishimoto -10 ORB to -AN adapters
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): 20.47
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): 1.24
TechSpec Includes: Mishimoto Tube-and-Fin Oil Cooler--M8x1.25 Bolts--M8 Flat Washers--M8 Locking Washers--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: -10 ORB: 30 lb-ft--M8 Mounting Bolts: 16 lb-ft
TechSpec Note: The logo is only painted on one side of the core to suit your taste
TechSpec Outlet: N/A
TechSpec Overall Height (in): 4.72
TechSpec Overall Length (in): 24.61
TechSpec Overall Width (in): 3.15
TechSpec Rows: 6
