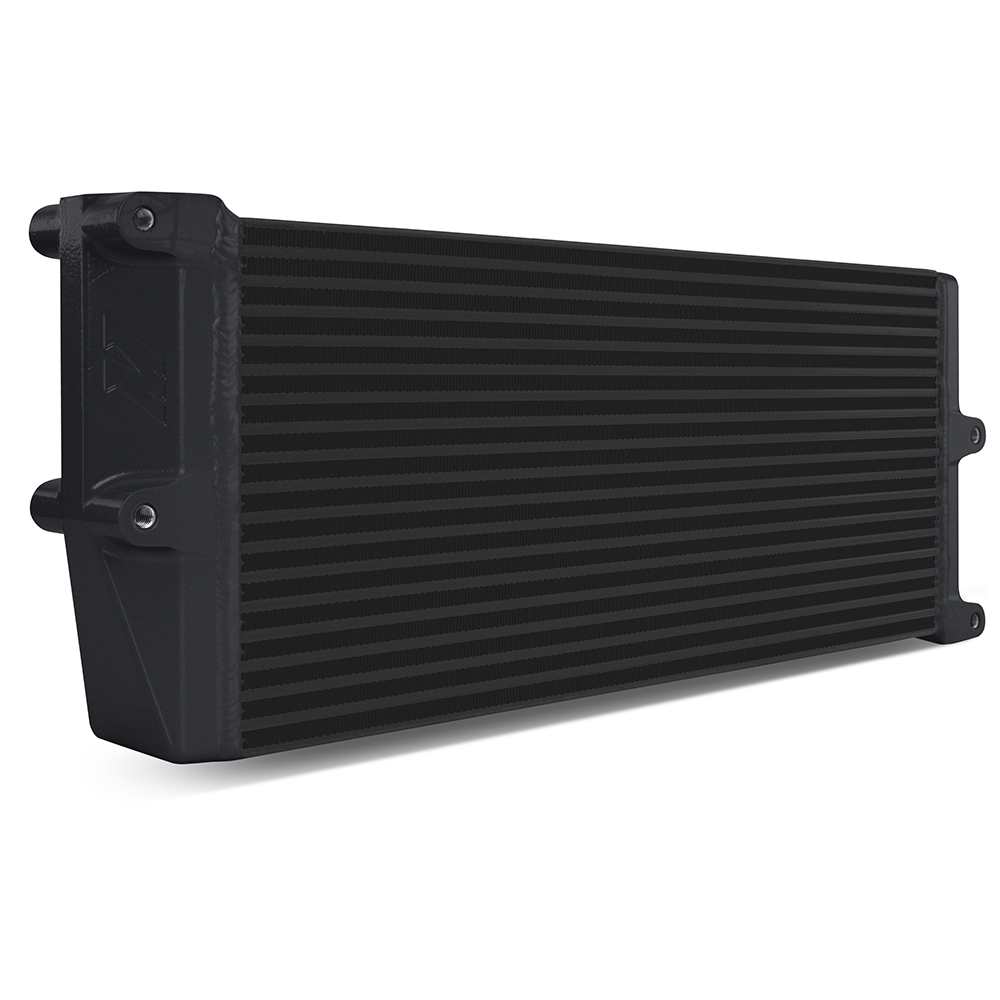

Universal Oil Cooler, HD Bar-and-Plate, Black, 17" Core, Opposite-Side Outlets - Mishimoto - MMOC-OO-17BK

No street track or trail build would be complete without a fluid cooler that can keep your engine safe through it all. This Mishimoto heavy-duty fluid cooler is designed to keep your oil coolant or transmission fluid cool in even the most extreme situations. The 17-row core is 17" long 7.5" tall and 2.5" thick with a 1.95-quart capacity for effective cooling on any high-performance application. This fluid cooler features turbulated fins to evenly circulate fluid within the cooler and make the most of the full core. Large -16AN ports ensure ample flow for even the most demanding engines. The durable cast-aluminum end tanks are precision TIG welded to the bar-and-plate core for a fluid cooler that can endure the stresses of racing or everyday driving. The end tanks feature eight M8 flush mounting points with steel threaded inserts for a secure connection to any custom bracket while the opposite-side inlet and outlet make routing lines simple. The available silver or black powder coat protects this cooler against the elements and complements any design. Like all our universal coolers this 17" heavy-duty bar-and-plate fluid cooler is backed by our Mishimoto Lifetime Warranty for a lifetime of worry-free performance.
Universal fit for any high-performance application
Large 17-row core measures 17-inL x 7.5-inH x 2.5-inT to provide ample cooling in any situation
1.95-quart capacity for increased cooling potential
Inlet Outside Diameter: 1.313 IN
Outlet Outside Diameter: 1.313 IN
Base Height: 7.79 IN
Color: Black
Finish: Anodized
Width: 2.55 IN
Core Height: 7.79 IN
Core Thickness: 2.55 IN
Core Width: 17.4 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 1.95 GA
Core Color: Black
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: 3
OptionLabel: Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Universal fit for any high-performance application
SellingPoint02: Large 17-row core measures 17-inL x 7.5-inH x 2.5-inT to provide ample cooling in any situation
SellingPoint03: 1.95-quart capacity for increased cooling potential
SellingPoint04: N/A
SellingPoint05: Bar-and-plate core for extreme durability and cooling
SellingPoint06: Turbulated fins circulate oil coolant or transmission fluid throughout the core for even and efficient cooling
SellingPoint07: -16 ORB female threaded inlet and outlet for high flow and versatility
SellingPoint08: Cast aluminum end tanks are precision TIG welded to core for maximum durability
SellingPoint09: Eight M8 flush mounting hole with steel threaded inserts secure the cooler to any custom bracket
SellingPoint10: Opposite-side inlet and outlet for easy line routing
SellingPoint11: Available in durable stealth black or sleek silver powder coat
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: It is the installer's responsibility to check all line fittings and connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation.
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 7.79
TechSpec Core Length (in): 17.4
TechSpec Core Thickness (in): 2.55
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): 1.95
TechSpec Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler--Mishimoto Lifetime Warranty
TechSpec Inlet: -16 ORB
TechSpec Installation Notes: N/A
TechSpec Note: N/A
TechSpec Outlet: -16 ORB
TechSpec Overall Height (in): 7.79
TechSpec Overall Length (in): 20.78
TechSpec Overall Width (in): 2.55
TechSpec Rows: 17
