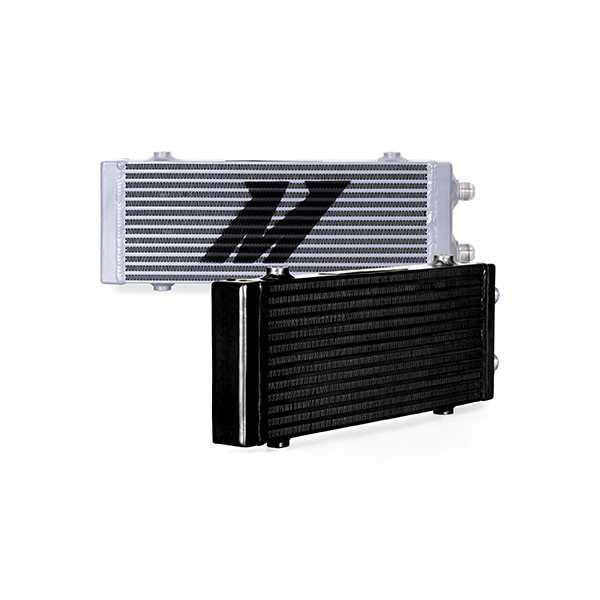

Universal Oil Cooler, Dual Pass Bar and Plate, Black, Medium - Mishimoto - MMOC-DP-MBK

As anyone who's spent some time on the track will tell you one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity which is the very characteristic that makes it thick slippery and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job extending the life of the high-wear components within your block and letting you focus not on keeping things cool but taking home the checkered flag. Available in your choice of sleek silver or stealth black this particular oil cooler features a dual pass core ? oil enters one side travels around the core and exits again on the same side. Ideal for most builds Mishimoto's medium-sized dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.
Durable Bar and Plate cooler design for use in custom applications
Dual Pass design for optimal fluid temperature reduction
M8x1.25 Welded bungs to use for attaching brackets
Inlet Outside Diameter: 0.625 IN
Outlet Outside Diameter: 0.625 IN
Base Height: 6.3 IN
Color: Black
Finish: Anodized
Width: 1.57 IN
Core Height: 5.51 IN
Core Thickness: 1.57 IN
Core Width: 0 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 0.65 GA
Core Color: Black
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: N/A
OptionLabel: Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Durable Bar and Plate cooler design for use in custom applications
SellingPoint02: Dual Pass design for optimal fluid temperature reduction
SellingPoint03: M8x1.25 Welded bungs to use for attaching brackets
SellingPoint04: 10AN fittings for attaching oil lines
SellingPoint05: 100-percent aluminum construction with CNC end tanks
SellingPoint06: Reduces oil temperatures with minimal pressure loss
SellingPoint07: Increased oil system capacity for increased cooling capability
SellingPoint08: Available in Sleek Silver or Stealth Black
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 5.51
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 1.57
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): 0.65
TechSpec Includes: (1) Oil Cooler--Mishimoto Lifetime Warranty
TechSpec Inlet: -10AN
TechSpec Installation Notes: N/A
TechSpec Note: For your taste only one side of the silver oil coolers has the Mishimoto inchM inch Logo the stealth black option does not have a logo
TechSpec Outlet: -10AN
TechSpec Overall Height (in): 6.3
TechSpec Overall Length (in): 17.01
TechSpec Overall Width (in): 1.57
TechSpec Rows: N/A
