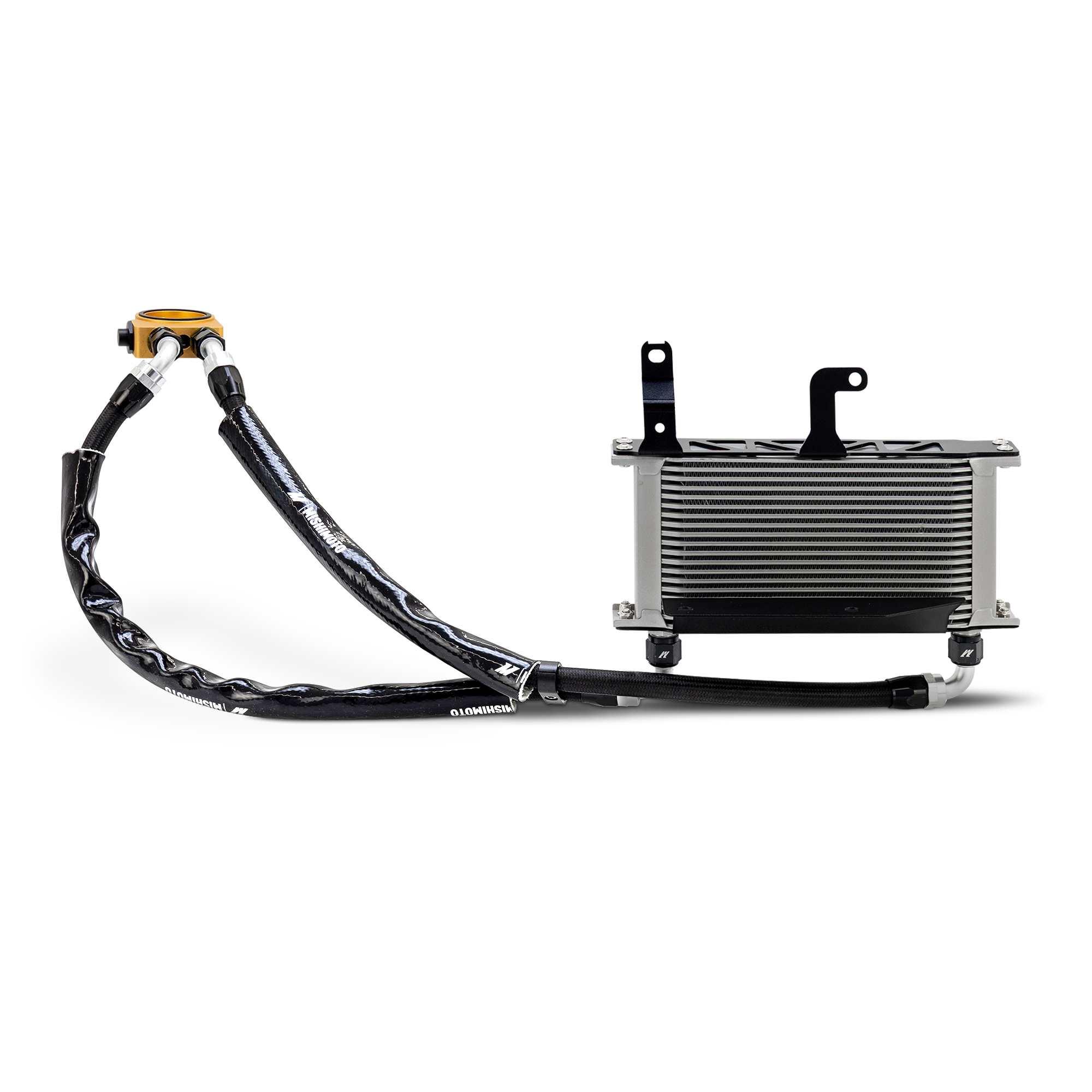

Oil Cooler Kit, Silver, Fits Honda Civic Type R 2023+ - Mishimoto - MMOC-CTR-23TSL

The 2023+ Honda Civic Type R is built to excel on the street or track but even the most spirited drives can push engine oil to its limits. With the FL5 CTR's high-revving 2.0L turbocharged engine extended hard driving can raise oil temperatures risking performance and longevity. The Mishimoto Oil Cooler Kit for the 2023+ Honda Civic Type R is designed to keep oil temps in check while increasing system capacity giving enthusiasts the confidence to push their Type R harder and longer. -- Our oil cooler kit increases total oil capacity by 12% over stock and features a 19-row stacked plate cooler strategically positioned to receive maximum airflow. This cooler is also thermostatic to help bring oil up to optimal temperature for daily driving and testing showed 5F cooler oil temperatures compared to stock. -- Installation is straightforward with all direct-fit components included. Black nylon oil lines connect seamlessly and our billet oil line separator aligns hoses and keeps them securely fastened. The horn is relocated using the existing horn bracket ensuring wiring harness integrity and maintaining horn position. High-temperature silicone and fiberglass sleeves are included to protect the stainless steel lines and minimal trimming of a plastic trim piece is required to properly install the lines. -- This kit combines performance durability and thoughtful design to maintain oil temperatures during spirited driving sessions. Backed by the Mishimoto Lifetime Warranty the 2023+ Civic Type R Oil Cooler Kit provides a reliable solution for enthusiasts who want more cooling more capacity and more peace of mind behind the wheel.
Robust 19-row stacked plate cooler positioned for maximum airflow
12% increase in oil capacity over stock for improved thermal management
Proven to keep oil temps 5F cooler than stock during demanding driving conditions
Inlet Outside Diameter: 0.625 IN
Outlet Outside Diameter: 0.625 IN
Base Height: 9.98 IN
Color: Silver
Finish: Anodized
Width: 5.37 IN
Core Height: 5.43 IN
Core Thickness: 1.97 IN
Core Width: 11 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 19
Fluid Capacity: 0.65 GA
Core Color: Silver
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: 3
OptionLabel: Silver
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Robust 19-row stacked plate cooler positioned for maximum airflow
SellingPoint02: 12% increase in oil capacity over stock for improved thermal management
SellingPoint03: Proven to keep oil temps 5°F cooler than stock during demanding driving conditions
SellingPoint04: Direct-fit design allows for simple and clean installation
SellingPoint05: Billet oil line separator keeps routing organized and secure
SellingPoint06: High-temperature silicone and fiberglass protective sleeves coat stainless steel lines to ensure strength and reliability
SellingPoint07: Relocates horn using existing bracket location with no wiring modifications needed
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation. For additional technical information contact our customer experience team.
TechSpec Chassis Codes: N/A
TechSpec Core Construction: Stacked Plate
TechSpec Core Height (in): 5.43
TechSpec Core Length (in): 11
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): 0.65 Quarts
TechSpec Includes: (1) 19 Row Oil Cooler (1) Bracket Kit (1) Hardware Kit (1) Oil Line Kit (1) Line Seperator (1) Sandwich Plate Kit
TechSpec Inlet: AN 10
TechSpec Installation Notes: N/A
TechSpec Note: Installation requires trimming or removal of factory duct piece (71336-T20-A00). Trimming/removal of this piece will not affect performance.----The FL5 Civic Type R DOES NOT have a factory oil temperature sensor. The oil temperature readings given by the vehicle display are an inferred value and are no longer accurate once an oil cooler is added.
TechSpec Outlet: AN 10
TechSpec Overall Height (in): 9.98
TechSpec Overall Length (in): 12.99
TechSpec Overall Width (in): 5.37
TechSpec Rows: 19
