Oil Cooler Kit, Black, Thermostatic, fits Chevrolet Camaro SS 2010-2015 - Mishimoto - MMOC-CSS-10TBK

An engine oil cooler is a great way to maintain optimal oil temperature and provide the best possible protection for the high-power LS3 or L99 engine in your 2010-2015 Camaro SS. Our Mishimoto engineers have gone one step further than the factory liquid-to-liquid setup and came up with a direct-fit liquid-to-air oil cooler kit that mounts behind the front bumper on a bracket designed specifically for your 5th Gen Camaro. This 25-row stacked plate oil cooler will take full advantage of all that air flowing through the front end of your car. The cooler is available in Sleek Silver or Stealth Black and comes with pre-assembled stainless steel braided oil lines with durable AN fittings a thermostatic or non-thermostatic 6061 aluminum CNC-machined oil sandwich plate custom mounting bracket and all of the fittings you need for installation -- We've thought of everything to make this kit a direct fit. With a test-proven 35 F temperature drop you don't have to worry about overheated engine oil even during long periods at full throttle. Rest assured that with the Mishimoto Direct Fit Oil Cooler Kit you can drive your Camaro the way it was intended to be driven having confidence that your oil is under control. Additionally as with any other product we offer your part is protected by the Mishimoto Lifetime Warranty!
Reduces oil temperatures by up to 35F
Minimal pressure drop
Application-specific mounting brackets
Inlet Outside Diameter: 0 IN
Outlet Outside Diameter: 0 IN
Base Height: 12.95 IN
Color: Black
Finish: Anodized
Width: 1.97 IN
Core Height: 0 IN
Core Thickness: 0 IN
Core Width: 0 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 0 GA
Core Color: Black
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: N/A
OptionLabel: Black Thermostatic
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2010-2015 Chevrolet Camaro SS
SellingPoint02: Reduces oil temperatures by up to 35F
SellingPoint03: Minimal pressure drop
SellingPoint04: Application-specific mounting brackets
SellingPoint05: Premade braided stainless steel oil lines with durable -AN fittings
SellingPoint06: Includes billet aluminum oil sandwich plate or thermostatic oil sandwich plate
SellingPoint07: 25-row stacked-plate oil cooler for optimal reduction in fluid temperature
SellingPoint08: Cooler available in Sleek Silver or Stealth Black
SellingPoint09: Increases oil capacity by 0.75 qt
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation. For additional technical information contact our customer experience team.
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: LS3--L99
TechSpec Fluid Capacity (qts): N/A

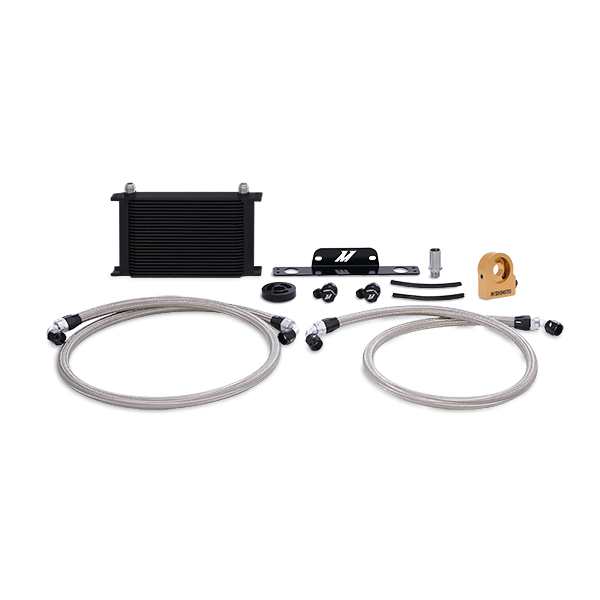

TechSpec Includes: Application-Specific Mounting Bracket--25-Row Oil Cooler--65-in Stainless Steel Braided Hose with 90 -10AN Fittings--54-in Stainless Steel Braided Hose with 90 and 45 -10AN Fittings--Banjo Fittings with Bolt M20 x -10AN + Dowty Seals Black--M22 Oil Sandwich Plate--CNC Sandwich Plate Spacer M22 15mm--Stainless Steel Sandwich Plate Adapter M22 15mm--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
TechSpec Note: N/A
TechSpec Outlet: N/A
TechSpec Overall Height (in): 12.95
TechSpec Overall Length (in): 8.35
TechSpec Overall Width (in): 1.97
TechSpec Rows: 25
