Oil Cooler Kit, Black, fits Subaru BRZ/Toyota GR86 2022+ - Mishimoto - MMOC-BRZ-22NTBK

The Subaru BRZ and Toyota GR86 have a lineage built on linking corners with seamless drifts and bombing down gravel forest roads chasing sector times. But despite their heritage the BRZ and GR86 need a little help keeping up with modern performance needs. The stock oil cooling system on the FA24 uses a liquid-to-liquid cooler that transfers heat from the oil to the engine coolant. The issue is that coolant is doing double-duty trying to cool the engine and its oil; and when you spend 20 minutes banging off the limiter and sliding sideways airflow through the radiator is at a minimum while heat buildup is at a maximum. The solution is a supplemental cooler whose only job is to cool the engine oil. Luckily we've developed that solution.----This Mishimoto performance oil cooler kit for your 2022+ Subaru BRZ or Toyota GR86 adds a robust 19-row external oil cooler to the otherwise anemic stock system. This cooler takes the load off your engine coolant and adds 0.75 quarts of oil to the system for even greater cooling and lubricating performance. In thermostatic spec this kit eliminates the liquid-to-liquid cooler reducing failure points and allowing each system to operate completely independently for maximum performance. For dedicated race cars that need full cooling right away the non-thermostatic option retains the stock cooler to help get oil temps and viscosity in operating range fast.----Our direct-fit mounting bracket places the oil cooler front and center in the grille for maximum airflow while the -10AN braided-steel lines ensure constant flow through the system. The included heat shielding sleeve adds another layer of protection against abrasion while keeping engine bay heat out of the oil.----This performance oil cooler kit includes everything you need for installation so you can get your 2022+ BRZ or GR86 back on the street or track in no time. Like all Mishimoto products this kit is backed by our Mishimoto Lifetime Warranty.
Direct-fit for 2022+ Subaru BRZ and Toyota GR86
Robust 19-row external cooler adds significant cooling power
Adds 0.75 quarts of oil to system for improved cooling and lubrication performance
Inlet Outside Diameter: 0.625 IN
Outlet Outside Diameter: 0.625 IN
Base Height: 0 IN
Color: Black
Finish: Anodized
Width: 0 IN
Core Height: 5.43 IN
Core Thickness: 1.97 IN
Core Width: 11 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 0
Fluid Capacity: 0.75 GA
Core Color: Black
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: 3
OptionLabel: Non-Thermostatic Black Cooler
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for 2022+ Subaru BRZ and Toyota GR86
SellingPoint02: Robust 19-row external cooler adds significant cooling power
SellingPoint03: Adds 0.75 quarts of oil to system for improved cooling and lubrication performance
SellingPoint04: Thermostatic option eliminates stock cooler ensuring maximum performance
SellingPoint05: Non-thermostatic option retains stock cooler for fast warmup at the track
SellingPoint06: Durable steel bracket mounts cooler in grille for maximum airflow
SellingPoint07: -10AN braided steel lines ensure ample reliable flow
SellingPoint08: Includes everything needed for installation
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Toyota GR86 H4 2.4L 2022+--Subaru BRZ H4 2.4L 2022+
TechSpec Caution: It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation.
TechSpec Chassis Codes: N/A
TechSpec Core Construction: Stacked-Plate
TechSpec Core Height (in): 5.43
TechSpec Core Length (in): 11
TechSpec Core Thickness (in): 1.97
TechSpec Engine Codes: FA24D
TechSpec Fluid Capacity (qts): 0.75

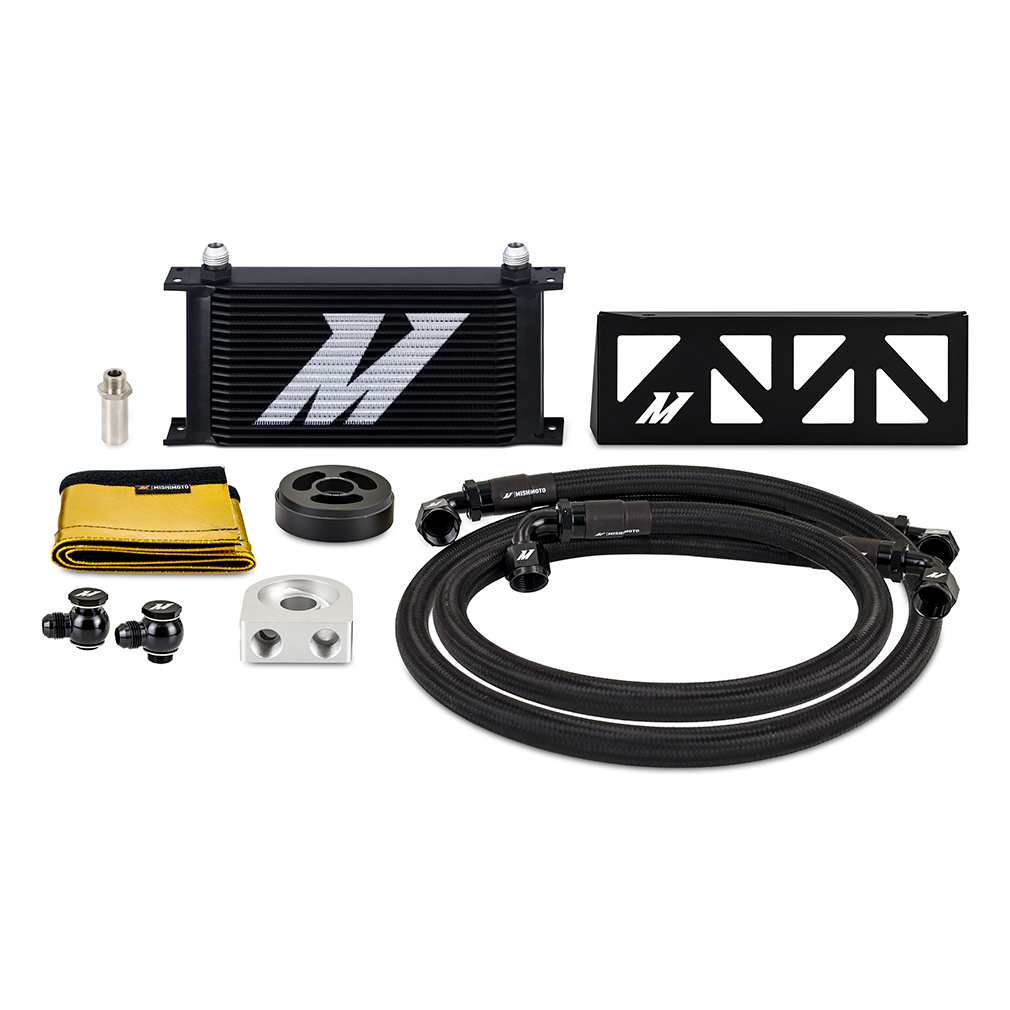

TechSpec Includes: (1) 19-Row Oil Cooler--(1) Oil Cooler Mounting Bracket--(1) Mounting Hardware Pack--(1) Sandwich Plate--(1) Center bolt--(2) -10AN Banjo Fittings--(2) Assembled AN hoses--(1) Heat Shielding Sleeve--(1) Mishimoto Lifetime Warranty
TechSpec Inlet: -10AN
TechSpec Installation Notes: N/A
TechSpec Note: N/A
TechSpec Outlet: -10AN
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 19
