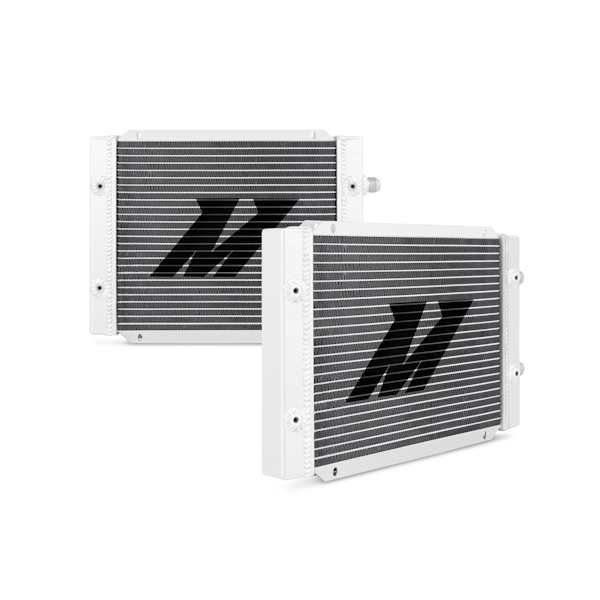

Universal Oil Cooler, 25-Row, Silver, Dual Pass - Mishimoto - MMOC-25DP

Mishimoto has developed a brand new universal dual pass oil cooler for enthusiasts that demand the most from their vehicles.Keeping oil temperatures in control is crucial for a successful day at the track street or strip.High engine oil temperatures can promote engine wear and lead to serious internal engine damage.The Mishimoto dual pass cooler is constructed from high pressure internal tubes rated to 120psi and is built to handle the most extreme conditions.The Mishimoto dual pass cooler offers an extremely large surface cooling area thanks to 8mm external fins so you can concentrate more on driving and less on temperatures.These coolers also possess the ability to cool all of your automotive fluids such as transmission and power steering fluid.As with all of our products the Mishimoto dual pass cooler is protected with our signature lifetime warranty.
25-row dual pass design for optimal fluid temperature reduction
Extends life of high-wear engine components
8mm external fins provides large surface cooling area
Inlet Outside Diameter: 0.625 IN
Outlet Outside Diameter: 0.625 IN
Base Height: 14.8 IN
Color: Silver
Finish: Anodized
Width: 1.77 IN
Core Height: 10.16 IN
Core Thickness: 1.42 IN
Core Width: 11.81 IN
Grade Type: Performance
Core Type: Bar-and-Plate
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Row Quantity: 25
Fluid Capacity: 0 GA
Core Color: Silver
Inlet Fitting Type: AN Flare
Outlet Fitting Type: AN Flare
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: 25-row dual pass design for optimal fluid temperature reduction
SellingPoint02: Extends life of high-wear engine components
SellingPoint03: 8mm external fins provides large surface cooling area
SellingPoint04: High pressure internal tubes rated to 120psi
SellingPoint05: Can be used to cool transmission and power steering fluid
SellingPoint06: Minimal pressure loss
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 10.16
TechSpec Core Length (in): 11.81
TechSpec Core Thickness (in): 1.42
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): N/A
TechSpec Includes: Mishimoto Oil Cooler--Mishimoto Lifetime Warranty
TechSpec Inlet: -10AN
TechSpec Installation Notes: N/A
TechSpec Note: N/A
TechSpec Outlet: -10AN
TechSpec Overall Height (in): 14.8
TechSpec Overall Length (in): 11.57
TechSpec Overall Width (in): 1.77
TechSpec Rows: 25
