Front Mount Intercooler Kit, Black/Black, fits Subaru WRX 2022+ - Mishimoto - MMINT-WRX-22BKBK

For 2022+ WRX owners looking to take the next step in performance look no further than Mishimoto's Performance Front-Mount Intercooler Kit. Whether you're building your WRX for the track dragstrip or the road upgrading your WRX's intercooler is an absolute must. Designed with a massive core CFD-optimized cast end tanks and high-flow pipes this intercooler offers gains of 12 hp and 11.8 lb-ft torque.----The front mounting location of this kit places the intercooler in the lower bumper grille for maximum airflow through the core making this system ideal for high-performance builds. In dyno testing our intercooler was able to bring outlet temperatures to within 10-degrees of ambient air temp ensuring safe power run after run even on the stock tune. CFD-optimized end tanks ID-matched pipes and a high-flow 4 inch-thick core result in a 1.5 PSI pressure drop so less of the boost your turbo makes is wasted.----Performance is great but if you have to destroy your car for it it's useless. Our kit contains everything needed for installation with no cutting of the bumper or body required. Our intercooler kit also retains the factory side impact bars and includes a bumper support bar with factory tow hook mounting for safety on the track and the street. The included washer fill neck relocation kit keeps maintenance easy while allowing for a clean install.----So If you're ready to ditch your stock heat-soak-prone intercooler it's time to upgrade to the Mishimoto Performance Front Mount Intercooler Kit. Designed for dependable performance and backed by Mishimoto's Lifetime Warranty our 2022+ WRX front mount intercooler kit is the perfect choice for bringing your WRX to the next level.
Fits 2022+ Subaru WRX
Max power gains of 12 HP and 11.8 lb-ft. of torque on stock tune
Lowers outlet temperatures to within 10-degrees of ambient air temp
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.4 IN
Cold Side Pipe Inside Diameter: 2.4 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 12.14 IN
Core Thickness: 3.93 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 26.57 IN
Inlet Diameter: 2.4 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.4 IN
Maximum Boost Pressure: 60 PS
Core Color: Black
Maximum Horsepower: 1000 HJ
Install Difficulty: 3
OptionLabel: Black Cooler--Black Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Max power gains of 12 HP and 11.8 lb-ft. of torque on stock tune
SellingPoint02: Lowers outlet temperatures to within 10-degrees of ambient air temp
SellingPoint03: 4-inch thick core protects against heat soak and detonation
SellingPoint04: Includes bumper support bar with tow hook location to keep your WRX track-ready
SellingPoint05: Comprehensive kit includes everything needed for installation
SellingPoint06: Safe for use with stock tuning
SellingPoint07: ID-matched pipes and intercooler ensure unrestricted airflow and low pressure drop
SellingPoint08: Built-in crash bar hooks make installation a one-person job
SellingPoint09: Cast end tanks withstand massive boost pressures
SellingPoint10: Includes washer fill neck relocation for easy maintenance
SellingPoint11: No bending of A/C lines required
SellingPoint12: Fits with most popular strut bars
SellingPoint13: Fits with Mishimoto radiator and oil cooler
SellingPoint14: Patent Pending
SellingPoint15: Mishimoto Lifetime Warranty
TechSpec Applications: Subaru WRX 2.4L H4 2022+
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VB
TechSpec Core Height (in): 12.14
TechSpec Core Length (in): 26.57
TechSpec Core Thickness (in): 3.93
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: FA24F

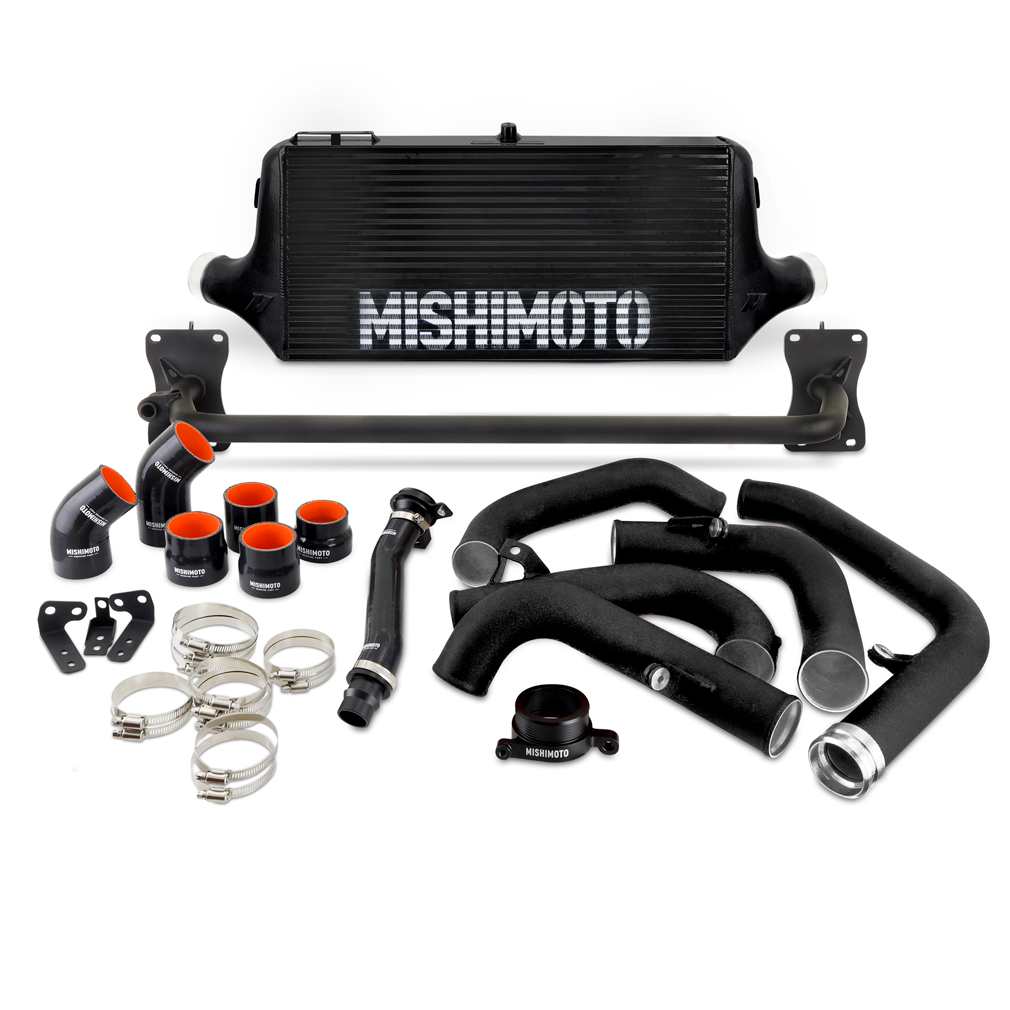

TechSpec Includes: (1) Front Mount Intercooler--(1) Pipe and Boot Kit with Adaptors--(1) Bumper Support Bar--(1) Washer Fluid Fill Neck Relocation-- Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.4
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 60
TechSpec Maximum Recommended Horsepower: 1000
TechSpec Note: N/A
TechSpec Outlet (in): 2.4
TechSpec Overall Height (in): 12.89 (intercooler)
TechSpec Overall Length (in): 40.22 (intercooler)
TechSpec Overall Width (in): 6 (intercooler)
TechSpec Pipe Diameter: 2.5
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
