Front Mount Intercooler Kit, Silver, fits Subaru WRX 2015-2021 - Mishimoto - MMINT-WRX-15SL

Designed for applications that demand the greatest airflow and cooling capabilities this Mishimoto WRX Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. This intercooler features a large 28in core that provides maximum cooling without excessive pressure drop that will wear out any turbocharger over time. The Mishimoto WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps or a 10-second blast down the quarter mile. The Mishimoto Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25inin in diameter to keep airflow velocities high giving your car an instant response without excessive throttle lag that plagues many front-mount intercooler designs. The hot-side pipe also features a CNC-machined flange for a leak free connection to the turbo. The cold side of the system features 2.5in to 2.75in mandrel-bent aluminum tubing for maximum airflow and to match the diameter of your throttle body. This 2015 WRX front-mount intercooler kit contains everything needed for a worry-free installation including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets and couplers including a new bracket for the air intake. Like all Mishimoto products this WRX front-mount intercooler is backed by our Mishimoto Lifetime Warranty.
3.5-in Thick intercooler design optimized for maximum flow
Designed to work with Mishimoto Performance Air Intake and stock intake
No modification to front bumper and retains stock fog lights
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.45 IN
Cold Side Pipe Inside Diameter: 2.75 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 8.05 IN
Core Thickness: 3.5 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Silver
Core Length: 28 IN
Inlet Diameter: 2.45 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.75 IN
Maximum Boost Pressure: 30 PS
Core Color: Silver
Maximum Horsepower: 600 HJ
CARB EO Number: D-759
Install Difficulty: 4
OptionLabel: Silver
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2021 Subaru WRX
SellingPoint02: 3.5-in Thick intercooler design optimized for maximum flow
SellingPoint03: Designed to work with Mishimoto Performance Air Intake and stock intake
SellingPoint04: No modification to front bumper and retains stock fog lights
SellingPoint05: Includes black powder-coated steel tubular crash bar
SellingPoint06: Smooth cast end tanks allow the best possible airflow in and out of the intercooler
SellingPoint07: Optimal core design for maximum cooling efficiency with minimal pressure drop
SellingPoint08: Includes all necessary couplers brackets and accessories
SellingPoint09: Intercooler available in Sleek Silver Stealth Black or Bold Gold
SellingPoint10: CARB EO number: D-759
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 Subaru WRX
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VA
TechSpec Core Height (in): 8.05
TechSpec Core Length (in): 28
TechSpec Core Thickness (in): 3.5
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: FA20DIT

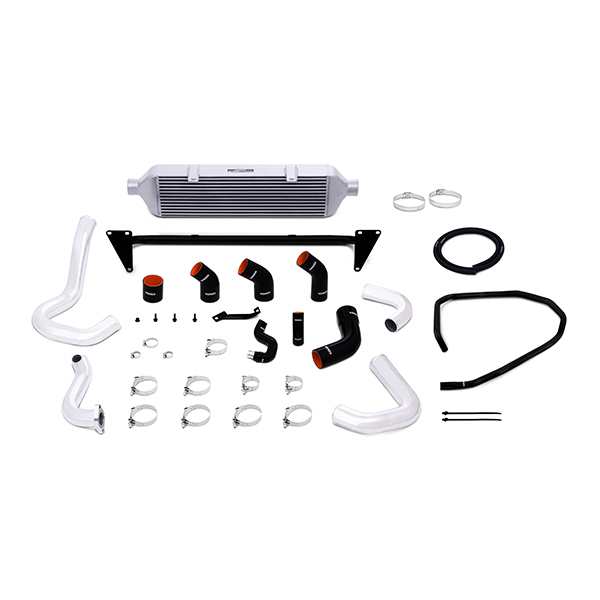

TechSpec Includes: (1) Bar-and-Plate Intercooler--(1) Steel Crash Bar w/Mounting Hardware--(2) Hot-Side Intercooler Pipes--(2) Cold-Side Intercooler Pipes--(1) Air Intake Bracket--(1) 2.25-in 45-degree Coupler--(1) 2.25-in to 2.75-in 45-degree Transition Coupler--(1) 2.5-in to 2.75-in 55 -degree Transition Coupler--(1) 2.5-in to 2.75-in 65 -degree Transition Coupler--(1) 3.00-in Straight Coupler--(1) BPV Recirculation Hose--(1) BPV Vacuum Hose--(1) 30-45mm Worm Gear Clamp--(2) 1.75-in T-bolt Clamps--(3) 2.5-in T-bolt Clamps--(2) 2.75-in T-bolt Clamps--(5) 3-in T-bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.45
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 30
TechSpec Maximum Recommended Horsepower: 600
TechSpec Note: This kit does not fit with fog light equipped vehicles----Mishimoto recommends that this intercooler kit not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle’s ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo exhaust system fuel system and type of ECU tune that is applied to the vehicle.----This kit is rated for approximately 600 whp during normal operating conditions. Maximum horsepower potential will be near 700 whp. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.----This front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kit----This front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kitThis kit is not compatible with some air-oil separator kits.
TechSpec Outlet (in): 2.75
TechSpec Overall Height (in): 8.6
TechSpec Overall Length (in): 37.7
TechSpec Overall Width (in): 5.4
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
