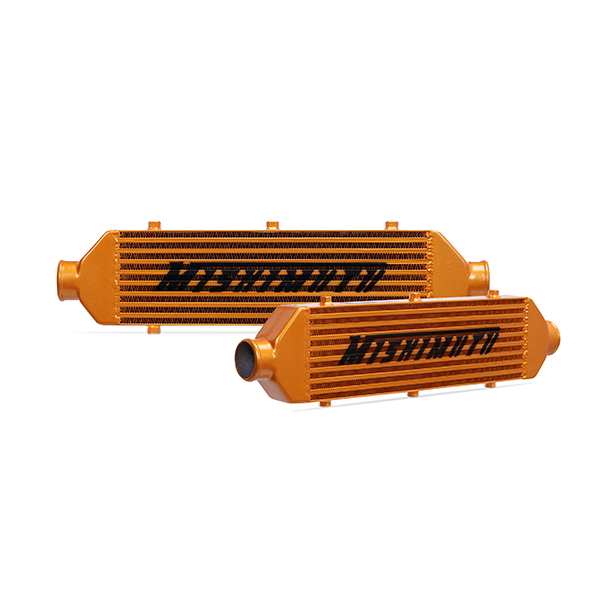

Universal Intercooler Z-Line, Gold - Mishimoto - MMINT-UZG

Sleek and stylish this universal front-mount intercooler will provide the perfect cooling capacity needed for larger turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection. Note: For your taste only one side of the intercooler has the Mishimoto logo.
All-aluminum construction with bar-and-plate core
TIG-welded end tanks for increased strength and durability
6 threaded mounting points for universal fitment
Inlet Outside Diameter: 2.5 IN
Outlet Outside Diameter: 2.5 IN
Length: 28 IN
Width: 2.5 IN
Type: Bar-and-Plate
Core Height: 6.25 IN
Core Thickness: 2.5 IN
Core Material: Aluminum
Height: 7.5 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 20.5 IN
Inlet Tank Material: Aluminum
Core Color: Gold
Install Difficulty: 3
OptionLabel: Gold
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: All-aluminum construction with bar-and-plate core
SellingPoint02: TIG-welded end tanks for increased strength and durability
SellingPoint03: 6 threaded mounting points for universal fitment
SellingPoint04: Rated to 22 PSI
SellingPoint05: Available in Sleek Silver Stealth Black or Bold Gold
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 6.25
TechSpec Core Length (in): 20.5
TechSpec Core Thickness (in): 2.5
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Maximum Recommended Horsepower: 500
TechSpec Note: Mounting point thread pitch is M12x1.25
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): 7.5
TechSpec Overall Length (in): 28
TechSpec Overall Width (in): 2.5
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
