Universal Intercooler M-Line, Silver - Mishimoto - MMINT-UM

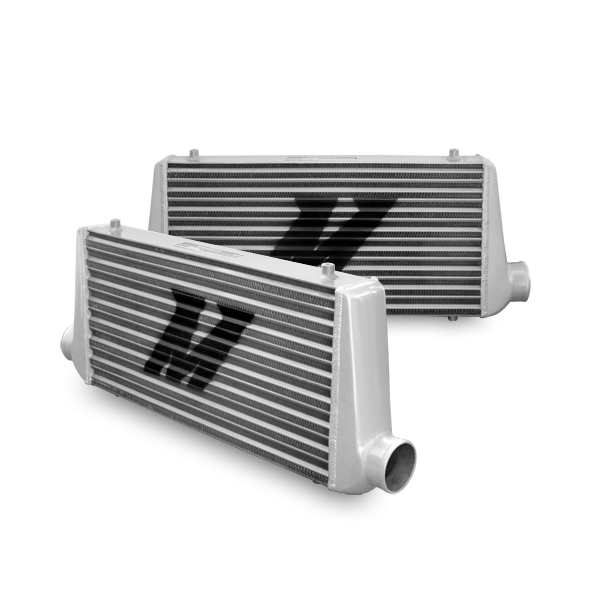

Sleek and stylish this universal front-mount intercooler will provide the perfect cooling capacity needed for smaller turbo applications.All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection.Note: For your taste only one side of the intercooler has the Mishimoto logo.
Robust one-piece cast aluminum end tanks withstand high boost pressures
4 universal mounting points
constructed with 6061 aluminum
Inlet Outside Diameter: 3 IN
Outlet Outside Diameter: 3 IN
Length: 31 IN
Width: 3 IN
Type: Tube-and-Fin
Core Height: 11.75 IN
Core Thickness: 3 IN
Core Material: Aluminum
Height: 11.75 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 23.5 IN
Inlet Tank Material: Aluminum
Core Color: Silver
Install Difficulty: 3
OptionLabel: Silver
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Robust one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint02: 4 universal mounting points
SellingPoint03: constructed with 6061 aluminum
SellingPoint04: Tig welded to perfection
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 11.75
TechSpec Core Length (in): 23.5
TechSpec Core Thickness (in): 3
TechSpec Core Type: Tube-and-Fin
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 11.75
TechSpec Overall Length (in): 31
TechSpec Overall Width (in): 3
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
