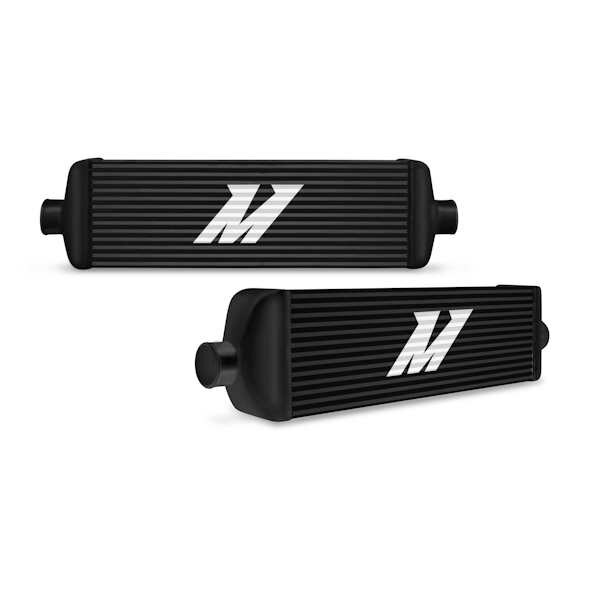

Universal Intercooler J-Line, Black - Mishimoto - MMINT-UJB

A smaller cooler packing a big punch this universal front-mount intercooler has been engineered to handle 500HP even with its compact size.Tested on the highest HP Hyundai Genesis Coupe in the world the Mishimoto J-Line intercooler is perfect for cars with limited front-end space.In most instances the J-Line will allow you to run more power while preventing you from having to remove your crash bar.Like all Mishimoto intercoolers the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.
Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust one-piece cast aluminum end tanks withstand high boost pressures
Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
Inlet Outside Diameter: 2.5 IN
Outlet Outside Diameter: 2.5 IN
Length: 29.5 IN
Width: 3.75 IN
Type: Bar-and-Plate
Core Height: 7.2 IN
Core Thickness: 3.5 IN
Core Material: Aluminum
Height: 7.5 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 22 IN
Inlet Tank Material: Aluminum
Core Color: Black
Install Difficulty: N/A
OptionLabel: Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
SellingPoint02: Robust one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint03: Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
SellingPoint04: Constructed with 6061 aluminum
SellingPoint05: Available in Sleek Silver Stealth Black or Bold Gold
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 7.2
TechSpec Core Length (in): 22
TechSpec Core Thickness (in): 3.5
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 40
TechSpec Maximum Recommended Horsepower: 500
TechSpec Note: N/A
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): 7.5
TechSpec Overall Length (in): 29.5
TechSpec Overall Width (in): 3.75
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 18.7
