Intercooler Kit, Silver/Silver, fits Kia Stinger GT 3.3T 2018-2023 - Mishimoto - MMINT-STNGR-18SL

Give your 2018-2023 Kia Stinger GT extra cooling power with the Mishimoto Performance Intercooler Kit. The Stinger made quite the splash upon its release and shook up the mid-sized sports sedan segment. While the Lambda II GDI 3.3T provides one of the best platforms out there today the intercooling system has the potential to hold the Stinger back. We've replaced the entire intercooling system from turbo to throttle body to provide optimized airflow. The Mishimoto Performance Intercooler replaces the tube and fin core coupled to plastic end tanks with a robust bar and plate core TIG-welded to cast aluminum end tanks for vastly improved heat dissipation and flow. We also expanded our core for a 94-percent increase in core volume and a 74-percent increase in external fin surface area.We kept the aluminum construction of the stock pipes but increased the inner diameter to 3in for increased flow through the system with minimal pressure drop. We also made sure to overhaul the piping merger manifold increasing the inlets to 2in and outlet to 3in for a 51-percent boost in flow straight out of the turbos while retaining compatibility with the stock recirculation valves. Our piping kit is finished in a sleek micro-wrinkle black powder coat to retain the OEM+ look under the hood and is linked together with our 5-layer silicone couplers.Our intercooler kit isn't just about a new look but will perform. Once on the dyno the combination of the larger piping diameters and increased intercooler size equated to a 29 degree F drop in outlet temperatures with a gain of 8whp and 8wtq on stock tuning. We also made sure to turn up the boost with our testing and installed a stage 1 map tune on our Stinger and recorded a 41 degree F drop in outlet temperature with a 6whp and 8wtq gain on top of the tune.
Includes performance intercooler piping cast aluminum merge manifold and couplers for optimal flow and performance
Drops intercooler outlet temperature by 29F on stock tune and 41F on stage 1 tune
Max power gains of 8 whp and 8 wtq on stock tune with an additional 6 whp and 8 wtq on top of stage 1 tuning
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 3 IN
Cold Side Pipe Inside Diameter: 3 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Silver
Core Length: 0 IN
Inlet Diameter: 3 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 3 IN
Maximum Boost Pressure: 0 PS
Core Color: Silver
Maximum Horsepower: 0 HJ
CARB EO Number: #D-759-24
Install Difficulty: 3
OptionLabel: Silver
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2018-2023 Kia Stinger GT 3.3T
SellingPoint02: Includes performance intercooler piping cast aluminum merge manifold and couplers for optimal flow and performance
SellingPoint03: Drops intercooler outlet temperature by 29F on stock tune and 41F on stage 1 tune
SellingPoint04: Max power gains of 8 whp and 8 wtq on stock tune with an additional 6 whp and 8 wtq on top of stage 1 tuning
SellingPoint05: 94-percent increase in intercooler core volume
SellingPoint06: 74-percent increase in external fin surface area
SellingPoint07: 51-percent increase in flow through piping merger manifold
SellingPoint08: 3-in intercooler piping for increased flow
SellingPoint09: Additional bung incorporated on the cold-side intercooler pipe that can be drilled and tapped for methanol injection or sensors
SellingPoint10: Compatible with stock recirculation valves
SellingPoint11: Patent No. US D957 465 S
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2018-2023 Kia Singer GT--2018+ Genesis G70 3.3T
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: CK
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: Lambda II GDI

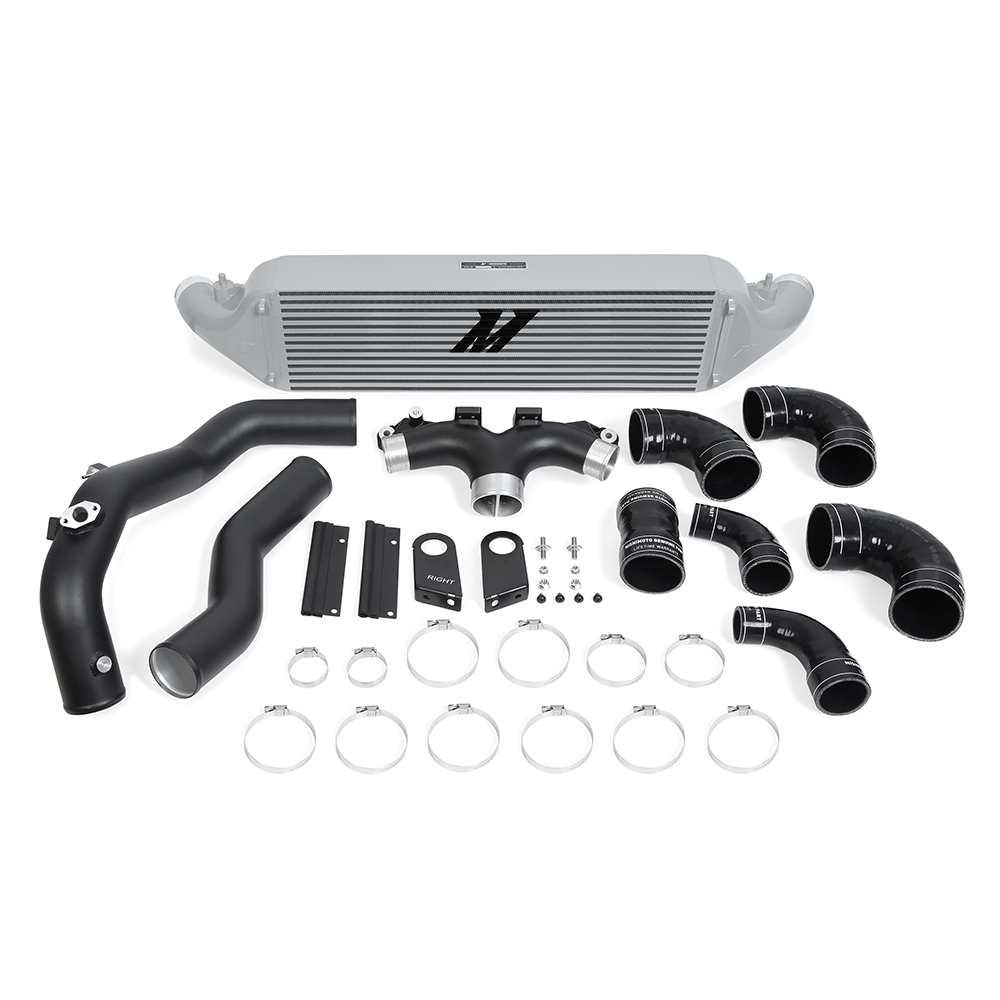

TechSpec Includes: (1) Performance Intercooler--(1) Hot-Side Piping Merger Manifold--(1) Hot-Side Intercooler Pipe--(1) Cold-Side Intercooler Pipe--(6) Silicone Couplers--(2) Application-Specific Mounting Brackets--(2) Air Diverters--(4) Mounting Grommets--(8) Heavy-Duty Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: Installation of this kit requires permanent modification to the front air guide shrouding part number 29135-J5000.
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 7.9
TechSpec Overall Length (in): 38.7
TechSpec Overall Width (in): 8.1
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 31
