Intercooler Kit, Black/Black, fits Ford Focus RS 2016-2018 - Mishimoto - MMINT-RS-16KBK

Say hello to our performance intercooler kit for the 2016-2018 Ford Focus RS! Whether you are a track junkie occasionally taking your RS for some spirited driving or making your RS a car to steal the show this intercooler will suit your needs. Our intercooler has been beefed up with a 36-percent increase in core volume and a 214-percent increase in external fin surface area which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40-percent while minimizing the inlet/outlet pressure drop across the core and provides gains of 7hp and 8ft-lbs! The hefty direct-fit bar-and-plate core is durable enough to wIt'stand any type of abuse you throw at it while improving the heat transfer process both at idle and cruising speeds.This kit also includes the Mishimoto performance intercooler piping kit to further improve the flow of the charged air through your 2.3l EcoBoost. The piping kit replaces the stock hot-side pipe with our custom design which not only features a 40-percent increase in internal volume but also is specifically shaped to direct airflow over the stock PTU cooler. Our cold-side pipe features 5-layers of wire reinforced silicone with a larger diameter to increase the flow of the charged air but also longevity of your turbocharging system.The Performance Intercooler Kit is available with either a silver or black and with all of our products is covered under the Mishimoto Lifetime Warranty to keep you pushing the limits in your RS for a lifetime.
80-percent increase in core size
36-percent increase in internal core volume and 214-percent increase in external fin surface area
46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe respectively
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.75 IN
Cold Side Pipe Inside Diameter: 2.75 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 8.3 IN
Core Thickness: 0 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 25.6 IN
Inlet Diameter: 2.75 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.75 IN
Maximum Boost Pressure: 0 PS
Core Color: Black
Maximum Horsepower: 600 HJ
Install Difficulty: 3
OptionLabel: Stealth Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
SellingPoint02: 80-percent increase in core size
SellingPoint03: 36-percent increase in internal core volume and 214-percent increase in external fin surface area
SellingPoint04: 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe respectively
SellingPoint05: 31-percent and 40-percent increase in internal volume compared to stock cold-side and hot-side pipe respectively
SellingPoint06: Designed to not block off cooling to the PTU
SellingPoint07: 7 whp and 8 wtq bolt-on power increase with stock tune
SellingPoint08: Intercooler Available in Sleek Silver or Stealth Black
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016-2018 Ford Focus RS
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: C346
TechSpec Core Height (in): 8.3
TechSpec Core Length (in): 25.6
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 2.3L EcoBoost GTDi I4

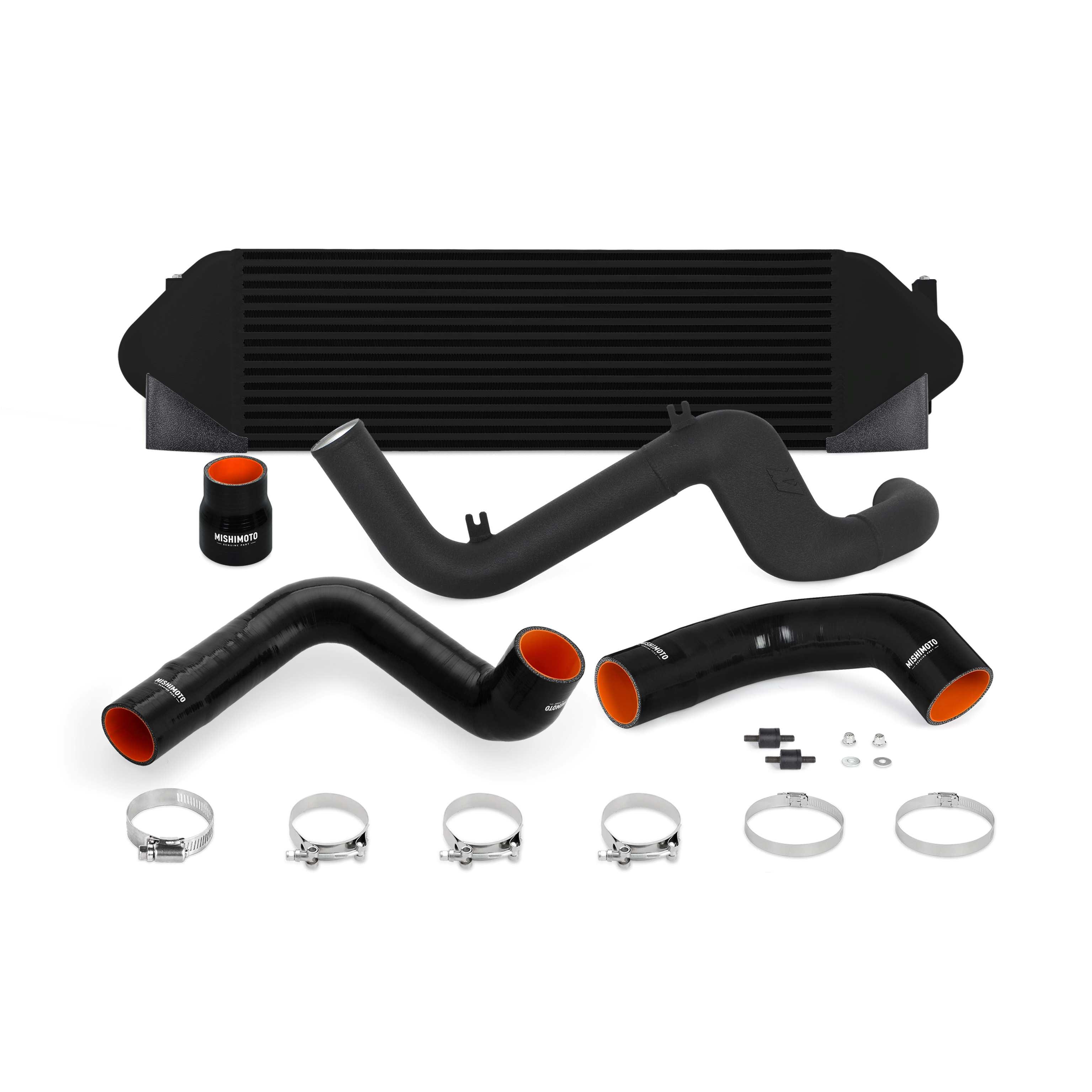

TechSpec Includes: (1) Mishimoto Intercooler--(1) Left and Right Diversion Plate--(1) Hot-side Intercooler Pipe--(2) Silicone Couplers--(1) Wire-reinforced Silicone Hose--(4) T-bolt clamps--(2) High-Torque Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.75
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 600
TechSpec Note: N/A
TechSpec Outlet (in): 2.75
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 33
