Intercooler Kit, Silver/Polished, fits Ford Mustang EcoBoost 2015-2023 - Mishimoto - MMINT-MUS4-15KPSL

For the first time in over 30 years the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low run after run. This kit also includes both hot-side and cold-side intercooler pipes allowing you to upgrade the entire intercooler system at one time! This intercooler is a direct-fit unit and features a 58-percent increase in core size while requiring no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter on the hot side to provide optimal flow through the intercooler. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss has a 25-percent increase in internal core volume and 165-percent increase in external fin surface area providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. This kit features 2.5inin hot-side and 2.75in cold-side mandrel-bent aluminum piping for smooth airflow and four-layer silicone couplers with heat-resistant embedded fibers for improved tolerance against heat and pressure. This kit also includes high-quality stainless steel T-bolt clamps for consistent and reliable holding power.
35 F (19.45 C) reduction in AIT
58-percent increase in core size
25-percent increase in internal core volume and 165-percent increase in external fin surface area
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.56 IN
Cold Side Pipe Inside Diameter: 2.56 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 5.75 IN
Core Thickness: 2.76 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Polished
Core Length: 21.06 IN
Inlet Diameter: 2.56 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.56 IN
Maximum Boost Pressure: 0 PS
Core Color: Silver
Maximum Horsepower: 550 HJ
CARB EO Number: D-759-23
Install Difficulty: 3
OptionLabel: Silver Intercooler Polished Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2023 Ford Mustang EcoBoost
SellingPoint02: 35 F (19.45 C) reduction in AIT
SellingPoint03: 58-percent increase in core size
SellingPoint04: 25-percent increase in internal core volume and 165-percent increase in external fin surface area
SellingPoint05: Replaces hot-side and cold-side intercooler pipes and couplers
SellingPoint06: Cast end tanks and in-tank diverter provide optimal flow through intercooler
SellingPoint07: Stock location prevents airflow blockage to radiator and AC condenser
SellingPoint08: Installs in under 2 hours without having to remove front bumper cover
SellingPoint09: Retains stock active grille shutters maintaining ideal aerodynamics when cooling demands are lower
SellingPoint10: Bar-and-plate construction with all-aluminum TIG-welded end tanks
SellingPoint11: 2.5-in hot-side and 2.75-in cold-side mandrel-bent aluminum pipes eliminate restrictive bends
SellingPoint12: CNC-machined BPV flange on hot-side pipe allows for quick install of stock or stock-style BPVs
SellingPoint13: Intercooler available in Stealth Black or Sleek Silver finish
SellingPoint14: Pipes available with a polished silver or wrinkle black finish
SellingPoint15: N/A
TechSpec Applications: 2015-2023 Ford Mustang EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: S550
TechSpec Core Height (in): 5.75
TechSpec Core Length (in): 21.06
TechSpec Core Thickness (in): 2.76
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 2.3L EcoBoost

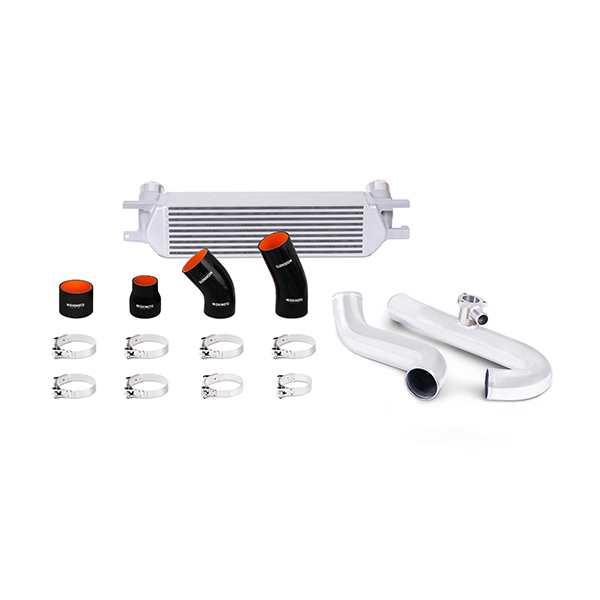

TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Pipe w/ CNC-Machined NPT Bung--(1) Aluminum Pipe w/ CNC-Machined BPV Flange--(4) Silicone Couplers--(1) 2.0-in T-bolt Clamp--(4) 2.75-in T-bolt Clamps--(3) 3.0-in T-bolt Clamps--(1) M6 x 1.0 x 20mm Flange Bolt--(1) M4 x 0.7 x 12mm Button Head Bolt--(1) M4 Lock Washer--(1) MAP Sensor O-Ring--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.56
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 550
TechSpec Note: N/A
TechSpec Outlet (in): 2.56
TechSpec Overall Height (in): 6.8
TechSpec Overall Length (in): 30.3
TechSpec Overall Width (in): 8
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
