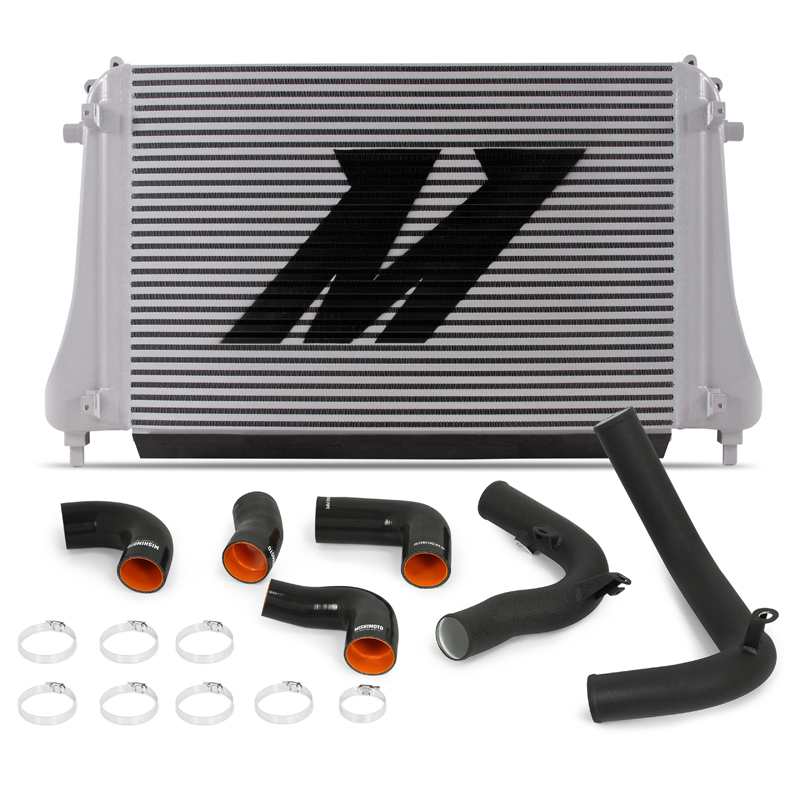

Intercooler Kit, Silver/Black, fits Volkswagen MK7 Golf TSI/GTI/R 2015-2021 - Mishimoto - MMINT-MK7-15KWBK

The mantra behind the grandfather of all hot-hatchbacks has long since been that big things come in small packages. The 2015- 2021 Golf TSI/GTI/R's and its intercooling system are about to receive a much-needed overhaul with the Mishimoto Performance Intercooler Kit. The stock system can be best described as the meat in an intercooler sandwich. It's no wonder with it placed directly between the radiator and AC condenser that this tube-and-fin constructed intercooler has trouble keeping up. Where this lighter core coupled with plastic end tanks might be suited for mass production and tame street driving it will struggle to keep your intake air temperatures down under more intense driving especially after the boost is turned up. The Mishimoto 2015- 2021 Volkswagen MK7 Golf TSI/GTI/R Performance Intercooler armed with an arsenal of cooling technology takes the place of the stock intercooler. Our engineers were able to squeeze in a larger core increasing the overall volume by 89-percent over stock and bumping up the external fin surface area by 162-percent. On top of the larger core our all-aluminum TIG-welded intercooler features a more robust bar-and-plate construction for better heat dissipation characteristics. In addition the cast aluminum end tanks are integrated with airflow diverters to ensure use of the full core. In addition to the more robust intercooler our Performance Intercooler Kit for your 2015- 2021 Golf or Audi A3/S3 includes our Performance Intercooler Pipe Kit. We ditched the stock plastic piping and rubber couplers for mandrel-bent aluminum piping and 5-layer silicone couplers. Our piping increases the air channels to and from the intercooler to 2.75 inches resulting in a 30-percent increase in flow.When combined our innovations for the MK7 intercooling system yielded max power gains of 14.5 whp and 13 wtq on the stock tuning. In addition our charged air cooler dropped intercooler outlet temperatures by 23 F
Max power gains of 14.5 whp and 13 wtq on stock tuning
89-percent increase in core volume
162-percent increase in external fin surface area
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.1 IN
Cold Side Pipe Inside Diameter: 2.1 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 0 IN
Inlet Diameter: 2.1 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.1 IN
Maximum Boost Pressure: 0 PS
Core Color: Black
Maximum Horsepower: 0 HJ
Install Difficulty: 4
OptionLabel: Black Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015- 2021 Volkswagen Golf TSI/GTI/R and Audi A3/S3
SellingPoint02: Max power gains of 14.5 whp and 13 wtq on stock tuning
SellingPoint03: 89-percent increase in core volume
SellingPoint04: 162-percent increase in external fin surface area
SellingPoint05: Drops intercooler outlet temperature by 23F
SellingPoint06: Cast end tanks with internal diverters for optimal airflow through core
SellingPoint07: 10-percent increase in average diameter over stock piping
SellingPoint08: 30-percent increase in flow over stock components
SellingPoint09: Mandrel-bent aluminum piping with durable 5-layer silicone couplers
SellingPoint10: Bar-and-plate intercooler core construction
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 Volkswagen Golf TSI--2015-2021 Volkswagen GTI--2015-2021 Volkswagen Golf R--2015-2021 Audi A3--2015-2021 Audi S3--2016-2021 Audi TT
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: MQB
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 2.2
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Performance Intercooler--(1) Performance Piping Kit--(2) CNC-Machined Aluminum Mounting Brackets--(4) Silicone Couplers--(8) High-Torque Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.1
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: This kit is compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only. Hot-side intercooler piping may not fit properly on vehicles equipped with 7-speed DSG transmissions.
TechSpec Outlet (in): 2.1
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 27
