MMINT-GRC-23K Intercooler Kit, Black/Black, fits Toyota GR Corolla 2023+ - Mishimoto - MMINT-GRC-23KBKBK

Unleash the full potential of your 2023+ Toyota GR Corolla with the Mishimoto Performance Intercooler Kit-engineered for serious performance and unwavering reliability. This complete bolt-on solution includes everything you need for a seamless upgrade: a high-efficiency intercooler precision-engineered hot- and cold-side aluminum piping durable silicone couplers and high-torque worm-gear clamps. -- At the heart of the kit is a massive 4 thick bar-and-plate core that delivers outstanding heat transfer slashing intake temperatures and improving overall engine efficiency. With a 52% increase in core volume over the stock unit this intercooler is built to handle the demands of spirited driving and track days alike. Robust cast-aluminum end tanks and CNC-machined inlet/outlet connections ensure smooth unrestricted airflow and long-lasting performance under pressure. -- An anodized aluminum air duct channels airflow precisely through the intercooler's external fins maximizing cooling efficiency while the tough powder-coated finish keeps the entire system looking as sharp as it performs. Backed by the Mishimoto Lifetime Warranty this intercooler kit is the ultimate cooling upgrade for drivers who demand more power better cooling and proven reliability. Step up from stock-your GR Corolla deserves it.
Direct-fit for the 2023+ Toyota GR Corolla
Cast throttle body elbow connection for drastically improved airflow and throttle response.
Durable 4 thick bar-and-plate core provides superior heat transfer
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.28 IN
Cold Side Pipe Inside Diameter: 2.28 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 6.93 IN
Core Thickness: 3.94 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 24.8 IN
Inlet Diameter: 2.28 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.28 IN
Maximum Boost Pressure: 50 PS
Core Color: Black
Maximum Horsepower: 650 HJ
CARB EO Number: D-759-27
Install Difficulty: 5
Optionlabel: Black Cooler Black Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for the 2023+ Toyota GR Corolla
SellingPoint02: Cast throttle body elbow connection for drastically improved airflow and throttle response.
SellingPoint03: Durable 4” thick bar-and-plate core provides superior heat transfer
SellingPoint04: 52% increase in core volume compared to stock
SellingPoint05: Robust cast-aluminum end tanks for dependable performance
SellingPoint06: CNC-machined inlet/outlet for smooth airflow entry into intercooler
SellingPoint07: Durable powder-coated finish
SellingPoint08: Anondized aluminum ducting ensures optimal airflow through external fins improving overall cooling efficiency
SellingPoint09: Wire-reinforced 5-layer silicone with heat resistant fibers
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Toyota GR Corolla 1.6L L3 2023+
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: GZEA14
TechSpec Core Height (in): 6.93
TechSpec Core Length (in): 24.8
TechSpec Core Thickness (in): 3.94
TechSpec Core Type: Bar-And-Plate
TechSpec Engine Codes: G16E-GTS

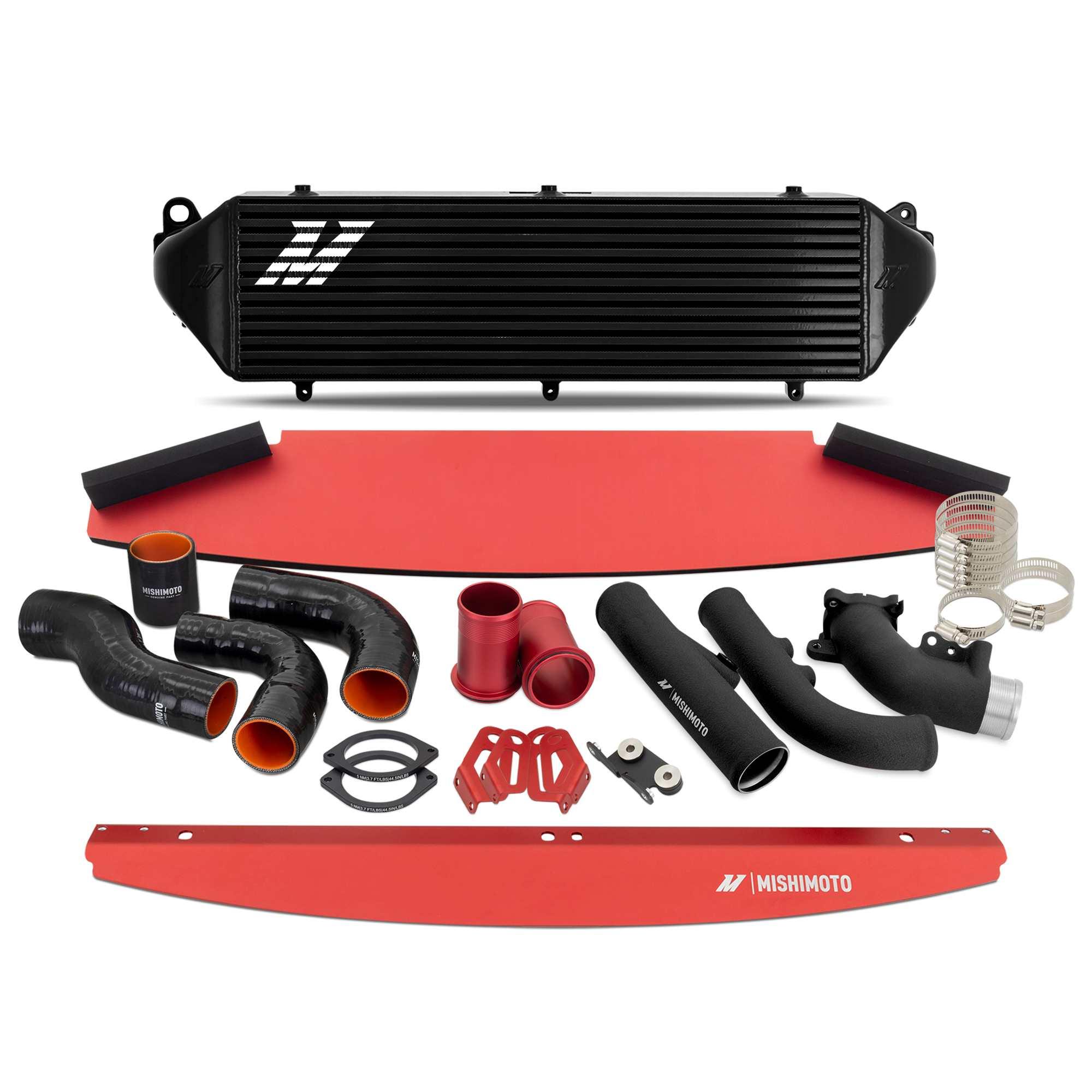

TechSpec Includes: (1) Intercooler (1) Intercooler Adapter Set (1) Intercooler Adapter Retainer Set (1) Intercooler Ducting Set (1) Intercooler Piping and coupler kit Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.28
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: 650
TechSpec Note: Not designed to fit 8-speed GR-DAT automatic transmission.
TechSpec Outlet (in): 2.28
TechSpec Overall Height (in): 8.19
TechSpec Overall Length (in): 32.85
TechSpec Overall Width (in): 7.67
TechSpec Pipe Diameter: Hot side: 2.0 Cold side: 2.25
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 25
