Performance Charge Air/Manifold, Black, fits BMW G8X M2/M3/M4 2021+ - Mishimoto - MMINT-G80-21BK

The S58 under the hood of the 2021+ G80 M3 has over 45 years of lineage behind it; like every generation before it the G80 M3 has the potential to be even more powerful but with great power requires serious cooling. Luckily Mishimoto has developed a charge air cooler manifold suited for serious power.----The stock G80 M3 charge air cooler is designed as a combination intercooler/intake manifold design which is efficient but it's let down by the tube-and-fin core crimped onto the thermoplastic plenum. Those crimps are quickly becoming a notorious weak point with many failing at as little as 3 lbs. of boost over stock. The solution is Mishimoto's cast aluminum and TIG-welded manifold with a robust bar-and-plate core designed to withstand boost pressures over 60 PSI.----Reliability aside the Mishimoto charge air cooler's has further improvements; our core is 33% larger than stock and the manifold flows an average of 14% better to each cylinder. That combined with the increased cooling capacity of the bar-and-plate core results in reduced pressure drop and intake air temps as low as 11 degrees above ambient under heavy load. Our CFD-designed lower plenum also features an internal diverter to ensure the entire core is utilized and each cylinder receives even flow for safe and optimal fueling. The cast and CNC-machined runners feature O-ring grooves to accept factory seals and we've included a fiber gasket that insulates the runners from engine heat for those seeking every degree of cooling.; ----Insane power levels require equally insane amounts of fuel so we've added provisions for port fuel injection including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injector ports feature optimized geometry for the perfect mixing of air and fuel with no drilling required. The included PTFE -AN fuel lines and fittings are suitable for ethanol and tee into the stock fuel lines. ----If cooling flow and reliability weren't enough we also designed our charge air cooler to fit like stock. This kit includes brackets to keep your wiring tidy a mount to fit the stock engine cover and custom EVAP lines for a seamless installation. A convenient cutout in the plenum allows easy access to the oil filter without affecting flow. Like all Mishimoto products this performance charge air cooler for the 2021+ BMW G80 M3 is backed by our Mishimoto Lifetime Warranty for a lifetime of exceptional performance. If you want the ultimate upgrade to squeeze serious power from your S58 engine this Mishimoto charge air cooler manifold is for you.
Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks ensuring superior durability and longevity compared to plastic stock tanks
Includes billet fuel rail lines and precision-drilled ports for port injection
Includes PTFE -AN fuel lines that tee into stock fuel lines
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 6.3 IN
Core Thickness: 4.9 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 9.8 IN
Inlet Diameter: 0 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 0 IN
Maximum Boost Pressure: 60 PS
Core Color: Black
Maximum Horsepower: 1150 HJ
Install Difficulty: 4
OptionLabel: N/A
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Design features a robust bar-and-plate core TIG-welded to cast-aluminum end tanks ensuring superior durability and longevity compared to plastic stock tanks
SellingPoint02: Includes billet fuel rail lines and precision-drilled ports for port injection
SellingPoint03: Includes PTFE -AN fuel lines that tee into stock fuel lines
SellingPoint04: Robust bar-and-plate core for IATs as low as 11-degrees above ambient
SellingPoint05: Improves flow to each cylinder by an average of 14-percent
SellingPoint06: Improves cooling without increasing pressure drop over stock
SellingPoint07: 33-percent core volume increase over stock with a 24-percent greater flow area
SellingPoint08: CFD-designed lower plenum for even flow distribution and safe fueling
SellingPoint09: Cast and CNC-machined runners accept stock O-rings or included fiber gasket
SellingPoint10: Includes harness brackets engine cover mount and custom EVAP lines for seamless install
SellingPoint11: Plenum cutout allows easy access to oil filter without impeding flow
SellingPoint12: Includes two additional 1/8-NPT ports for manifold reference lines or sensors
SellingPoint13: Also fits X3 M/X4 M models with included EVAP plug and fitting
SellingPoint14: Patent Pending
SellingPoint15: Mishimoto Lifetime Warranty
TechSpec Applications: 2021+ BMW M3 I6 3.0L--2021+ BMW M4 I6 3.0L--2021+ BMW M3 Competition I6 3.0L--2021+ BMW M4 Competition I6 3.0L--2019+ BMW X3 M I6 3.0L--2019+ BMW X4 M I6 3.0L--2019+ BMW X3 M Competition I6 3.0L--2019+ BMW X4 M Competition I6 3.0L
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: G80--G82--G83--G87--F97--F98
TechSpec Core Height (in): 6.3
TechSpec Core Length (in): 9.8
TechSpec Core Thickness (in): 4.9
TechSpec Core Type: Bar-And-Plate
TechSpec Engine Codes: S58B30

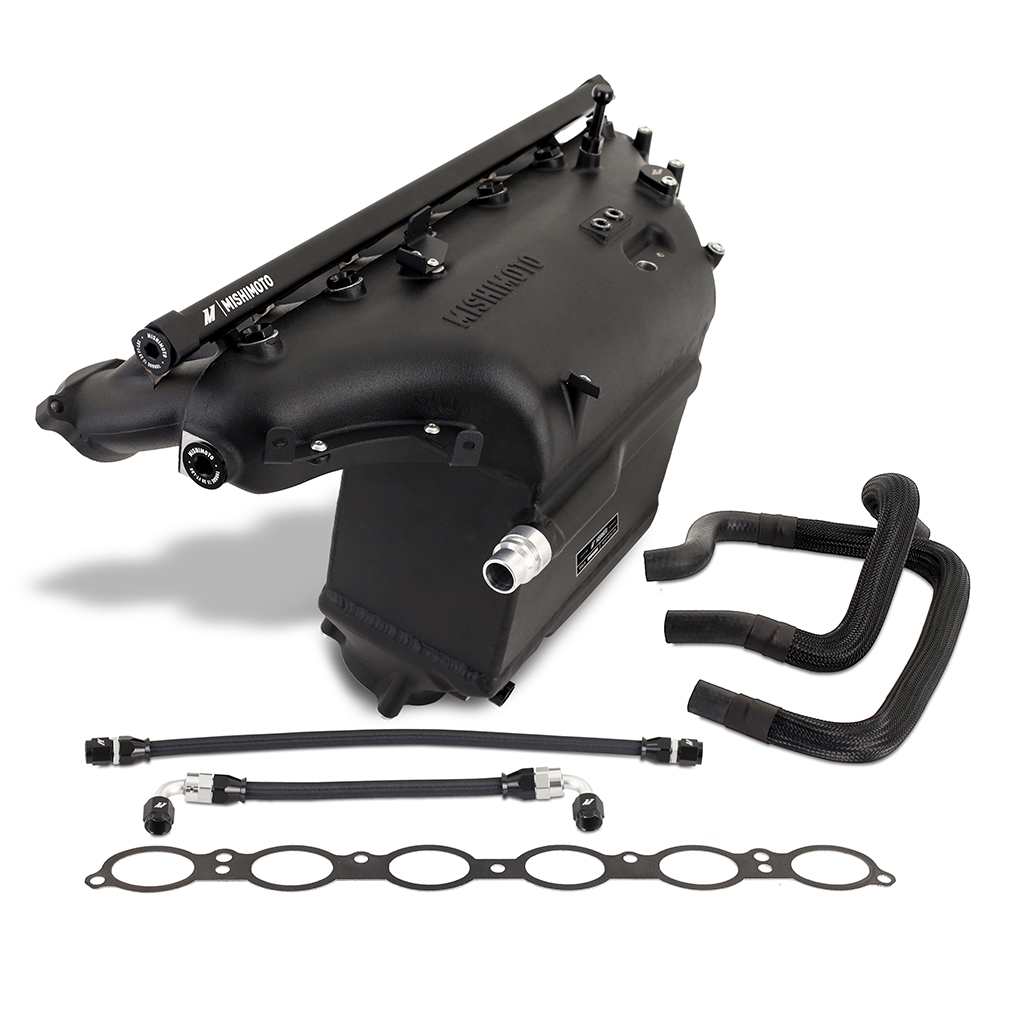

TechSpec Includes: (1) Mishimoto Charge Air Cooler Manifold--(1) Intake Manifold Gasket--(1) Manifold/Intercooler Accessory Bracket Set--(6) -6 ORB Plugs--(6) -6 ORB to 1/8-in NPT Adapters--(6) -6 ORB to 1/16-in NPT Adapters--(1) Fuel Rail--(6) Fuel Injector Blanks--(2) -8 ORB Plugs--(1) -10 ORB Plug--(2) 1/8-in NPT Plugs--(2) EVAP System Hoses--(1) Port Injection Fuel Line Kit--(1) Hardware Kit--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: N/A
