Intercooler Kit, Silver/Black, fits Ford Focus ST 2013-2018 - Mishimoto - MMINT-FOST-13KBSL

It's time to make your cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013-2018 Ford Focus ST. Ford released their 2.0T EcoBoost powered Focus boasting the perfect combination of performance and practicality however the intercooling system left something to be desired. While the piping did feature sections of aluminum the restrictive diameter not to mention the turbo muffler put a damper on the Focus ST?s performance potential. We've replaced the hot-side pipe with mandrel-bent aluminum both ditching the muffler and also opening up the diameter to allow a 26-percent better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone ensuring a long lasting connection on the hot-side but also a soother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe kit grants a 21-percent increase in flow to and from the intercooler. The piping isn?t the only part of this kit that increases flow the bar-and-plate construction opens up air channels within the core allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all aluminum construction also aids in heat dissipation warding off the dreaded heat-soak under demanding driving conditions and delivering properly cooled air through the ST?s intake manifold. The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP. The Mishimoto Performance Intercooler Kit for your 2013-2018 is available in silver black or gold with an option of wrinkle black or polished piping. As always this intercooler kit is covered under the Mishimoto Lifetime Warranty.
4.3-in thick intercooler design optimized for maximum flow
8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.5 IN
Cold Side Pipe Inside Diameter: 2.5 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 0 IN
Inlet Diameter: 2.5 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.5 IN
Maximum Boost Pressure: 0 PS
Core Color: Silver
Maximum Horsepower: 0 HJ
CARB EO Number: D-759-6
Install Difficulty: 4
OptionLabel: Ford Focus ST Intercooler Kit 2013+ Silver Cooler Black Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2013-2018 Ford Focus ST
SellingPoint02: 4.3-in thick intercooler design optimized for maximum flow
SellingPoint03: 8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts
SellingPoint04: Optimal core design for maximum cooling efficiency with minimal pressure drop
SellingPoint05: CNC-machined ribbed inlet and outlet for secure coupler connections
SellingPoint06: Increases core size by 128-percent and fin surface area by 32-percent
SellingPoint07: 10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe
SellingPoint08: 14-percent increase in volume and 26-percent greater flow than stock hot-side pipe
SellingPoint09: Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
SellingPoint10: Provision for both US and Euro MAP sensor
SellingPoint11: No modification to front bumper and retains stock fog lights
SellingPoint12: Pipes available in polished or wrinkle black powder-coating
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Ford Focus ST 2013-2018
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: C346
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A

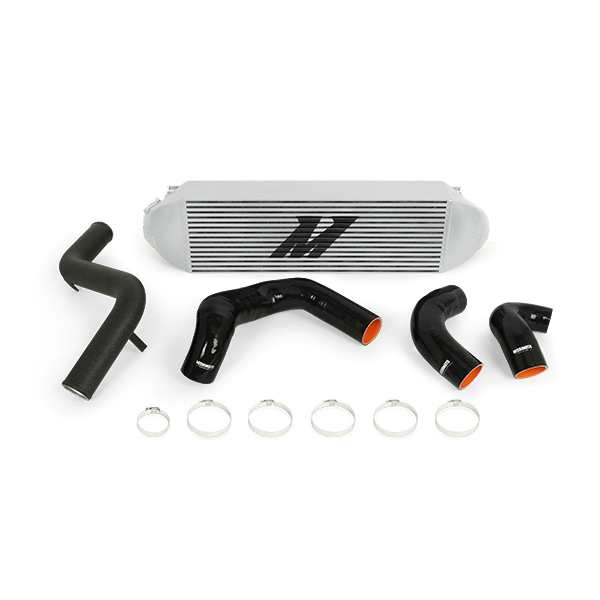

TechSpec Includes: (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): 8.3
TechSpec Overall Length (in): 35.7
TechSpec Overall Width (in): 7.25
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 30
