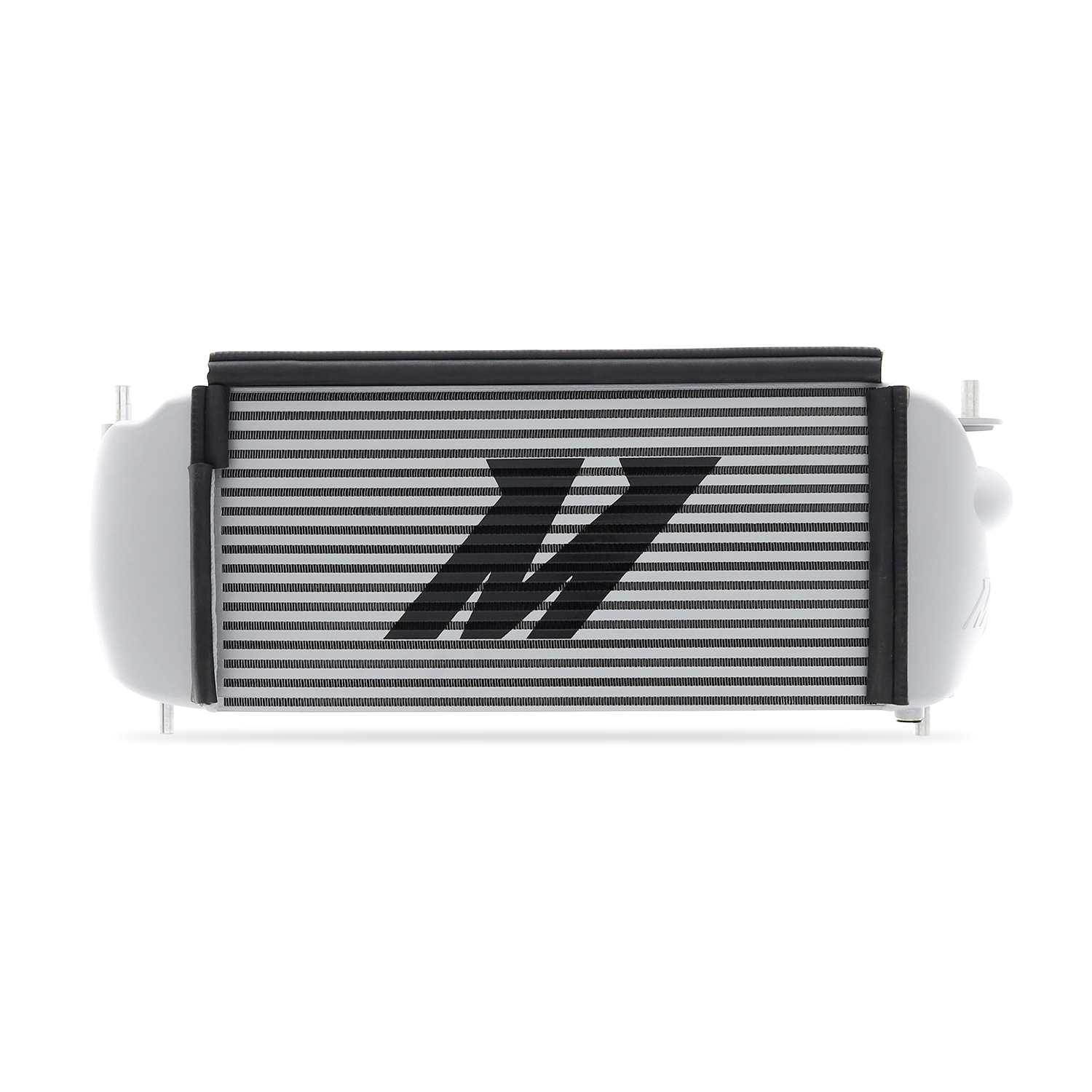

Intercooler, Silver, fits Ford F-150 EcoBoost 2015+ - Mishimoto - MMINT-F150-15SL

Keep those air intake temps down! With Mishimoto's Performance Intercooler for the 2015+ Ford F-150 EcoBoost your engine will reach a better level of cooling from the help of both an increase in core volume by 77-percent over stock and external fin surface area by 163-percent. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers your F-150 will take in cooler air providing better performance and increased tuning potential.
10F (5.5C) reduction in intake air temp
77-percent increase in internal core volume
163-percent increase in external fin surface area
Inlet Outside Diameter: 2.5 IN
Outlet Outside Diameter: 3 IN
Length: 29 IN
Width: 7 IN
Type: Bar-and-Plate
Core Height: 9.4 IN
Core Thickness: 4.72 IN
Core Material: Aluminum
Height: 9.5 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 19.6 IN
Inlet Tank Material: Aluminum
Core Color: Silver
CARB EO Number: D-759-6
Install Difficulty: 3
OptionLabel: Sleek Silver
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015+ Ford F-150 EcoBoost
SellingPoint02: 10F (5.5C) reduction in intake air temp
SellingPoint03: 77-percent increase in internal core volume
SellingPoint04: 163-percent increase in external fin surface area
SellingPoint05: CNC-machined inlets and outlets are ridged for greater holding power
SellingPoint06: All-aluminum TIG-welded construction
SellingPoint07: Internal fin design for maximum heat transfer with minimal pressure drop
SellingPoint08: Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits
SellingPoint09: Fits with stock intercooler fans without modification
SellingPoint10: Available in Sleek Silver or Stealth Black
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 9.4
TechSpec Core Length (in): 19.6
TechSpec Core Thickness (in): 4.72
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 2.7L V6 EcoBoost--3.5L V6 EcoBoost
TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 9.5
TechSpec Overall Length (in): 29
TechSpec Overall Width (in): 7
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
