Intercooler Kit, Black/Polished, fits Ford F-150 EcoBoost 2011-2014 - Mishimoto - MMINT-F150-11KPBK

Cool down those charge air temperatures with the Mishimoto direct-fit performance intercooler and pipe kit for the 2011-2014 Ford F-150 EcoBoost. The small factory intercooler sits in the bottom part of a spacious and unconventionally shaped cavity behind the front bumper which means There's a lot of wasted space there that could be used for cooling improvements. That's why the Mishimoto intercooler has been cleverly engineered with a unique angled design to take full advantage of the space for maximum performance. This intercooler boasts an 88-percent increase in core size 66-percent increase in internal core volume and 40-percent increase in external fin surface area. The Mishimoto intercooler lowers intake temperatures by 50F (28C) compared to the factory part. But of course no intercooler is complete without a set of pipes to complement it. This kit also includes Mishimoto 2011-2014 F-150 EcoBoost Intercooler Pipes which are an ideal upgrade in reliability and performance. Accompanied by silicone couplers with DuraCore technology Mishimoto's F-150 EcoBoost intercooler piping is engineered to eliminate restrictive bends while improving durability and airflow. Compared to normal silicone DuraCore provides superior resistance to heat pressure fuel and oil. These pipes alone have been dyno proven to provide your truck with up to 15 more horsepower and 21 Ft/lbs more torque. Of course this kit is backed by our Mishimoto Lifetime Warranty so you never need to worry about buying another intercooler and pipe kit again.
50F (28C) reduction in AIT
88-percent increase in core size
66-percent increase in internal core volume and 40-percent increase in external fin surface area
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.5 IN
Cold Side Pipe Inside Diameter: 3 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Polished
Core Length: 0 IN
Inlet Diameter: 2.5 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 3 IN
Maximum Boost Pressure: 50 PS
Core Color: Black
Maximum Horsepower: 0 HJ
CARB EO Number: D-759-6
Install Difficulty: 4
OptionLabel: Black Intercooler Polished Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2011-2014 Ford F-150 EcoBoost
SellingPoint02: 50F (28C) reduction in AIT
SellingPoint03: 88-percent increase in core size
SellingPoint04: 66-percent increase in internal core volume and 40-percent increase in external fin surface area
SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
SellingPoint06: Features CNC Bypass Plug for 2011-2012 models
SellingPoint07: 1/4-in NPT drain plug incorporated into lower mount
SellingPoint08: 2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
SellingPoint09: 3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
SellingPoint10: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat pressure fuel and oil
SellingPoint11: 10-percent greater flow than stock
SellingPoint12: 41-percent and 34-percent increase in internal volume for hot and cold-side pipes respectively
SellingPoint13: CNC quick-disconnect for maximum durability perfect fitment and ease of installation on Mishimoto intercooler
SellingPoint14: Intercooler available in Sleek Silver or Stealth Black pipes available in polished or wrinkle black powder-coated finish
SellingPoint15: Mishimoto Lifetime Warranty
TechSpec Applications: 2011-2014 Ford F-150 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: P415
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 3.5L V6 EcoBoost

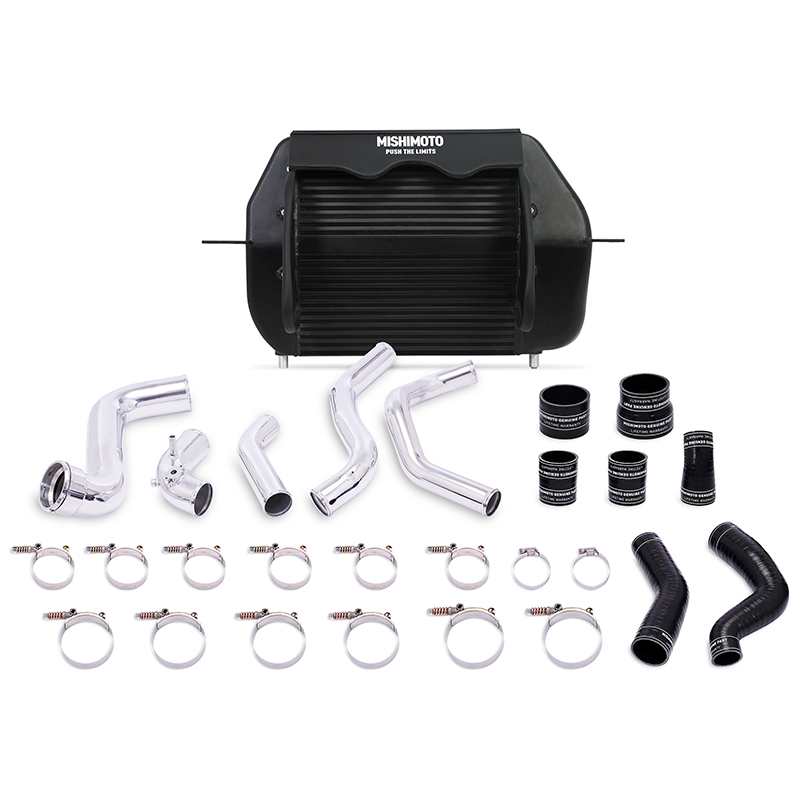

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 19
TechSpec Overall Length (in): 27.6
TechSpec Overall Width (in): 6.75
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
