Intercooler Kit, Black/Black, fits Chevrolet/GMC 6.6L Duramax L5P 2017-2019 - Mishimoto - MMINT-DMAX-17KBKBK

Built to handle heavy payloads provide impressive performance and execute years of reliable service the 2017-2019 6.6L Duramax L5P is an absolute workhorse. However as with any factory vehicle some systems have limitations and areas that can be improved. Our engineering team has specifically identified the L5P's intercooler system as one of these areas. As a result we've developed a performance intercooler kit for the 2017-2019 Chevrolet/GMC 6.6L Duramax L5P.This kit includes a massive 68mm-thick bar-and-plate intercooler with cast-aluminum end tanks and 3.0in mandrel-bent piping for maximum cooling and flow. Our intercooler is 70-percent thicker than stock and is designed to be a robust unit capable of withstanding high temperatures and boost pressures without cracking. In addition our end tanks also feature larger inlets and outlets for even more flow. That coupled with the larger intercooler core reduces restriction by over 64-percent compared to the stock intercooler.Our kit also includes hot-side and cold-side intercooler piping with DuraCore(TM) boots and constant-tension T-bolt clamps. Our 3.0in mandrel-bent aluminum piping eliminates the restrictive stock resonator and improves flow by up to 55-percent over stock. The Mishimoto L5P Duramax intercooler pipes fit like stock thanks to the included CNC-machined quick-disconnect fitting with new O-rings and spring clip bead-rolled pipe ends and mounting locations for factory sensors and harnesses. Our pipes also include three bungs that can be drilled and tapped for sensors or water/meth injection.The Mishimoto 6.6L Duramax L5P Performance Intercooler Kit is a direct fit for your 2017-2019 Chevrolet or GMC HD truck and is a fantastic upgrade for both stock and heavily modified trucks. Like all our Duramax performance parts this L5P intercooler kit is protected by our signature Mishimoto Lifetime Warranty.
Includes performance intercooler hot and cold-side intercooler pipes and DuraCore boots
Reduces restriction by up to 64-percent over stock intercooler system
68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 3 IN
Cold Side Pipe Inside Diameter: 3.25 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 11 IN
Core Thickness: 2.67 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 20 IN
Inlet Diameter: 3 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 3.25 IN
Maximum Boost Pressure: 0 PS
Core Color: Black
Maximum Horsepower: 0 HJ
Install Difficulty: 5
OptionLabel: Black Intercooler Wrinkle Black Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P
SellingPoint02: Includes performance intercooler hot and cold-side intercooler pipes and DuraCore boots
SellingPoint03: Reduces restriction by up to 64-percent over stock intercooler system
SellingPoint04: 68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling
SellingPoint05: 3.0-in mandrel-bent aluminum pipes eliminate restrictive bends and resonators
SellingPoint06: Larger intercooler inlet and outlet reduce restriction for improved flow
SellingPoint07: Pipes include 3 additional bungs that can be drilled and tapped for sensors or water/meth injection
SellingPoint08: Robust cast-aluminum end tanks resist cracking under high heat and pressure
SellingPoint09: Eliminates failure-prone stock throttle valve connector
SellingPoint10: Retains temp sensor harness mount for safe and secure wire routing
SellingPoint11: CNC-machined quick-disconnect with new O-ring and spring clip ensures precise leak-free fit
SellingPoint12: Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
SellingPoint13: Available in durable silver or black powder-coated finish
SellingPoint14: Patent No. US D1 077 860S
SellingPoint15: Mishimoto Lifetime Warranty
TechSpec Applications: GMC Sierra 2500HD V8 (6.6L Diesel) 2017-2019--GMC Sierra 3500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 2500HD V8 (6.6L Diesel) 2017-2019--Chevrolet Silverado 3500HD V8 (6.6L Diesel) 2017-2019
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: GMT K2
TechSpec Core Height (in): 11
TechSpec Core Length (in): 20
TechSpec Core Thickness (in): 2.67
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: L5P

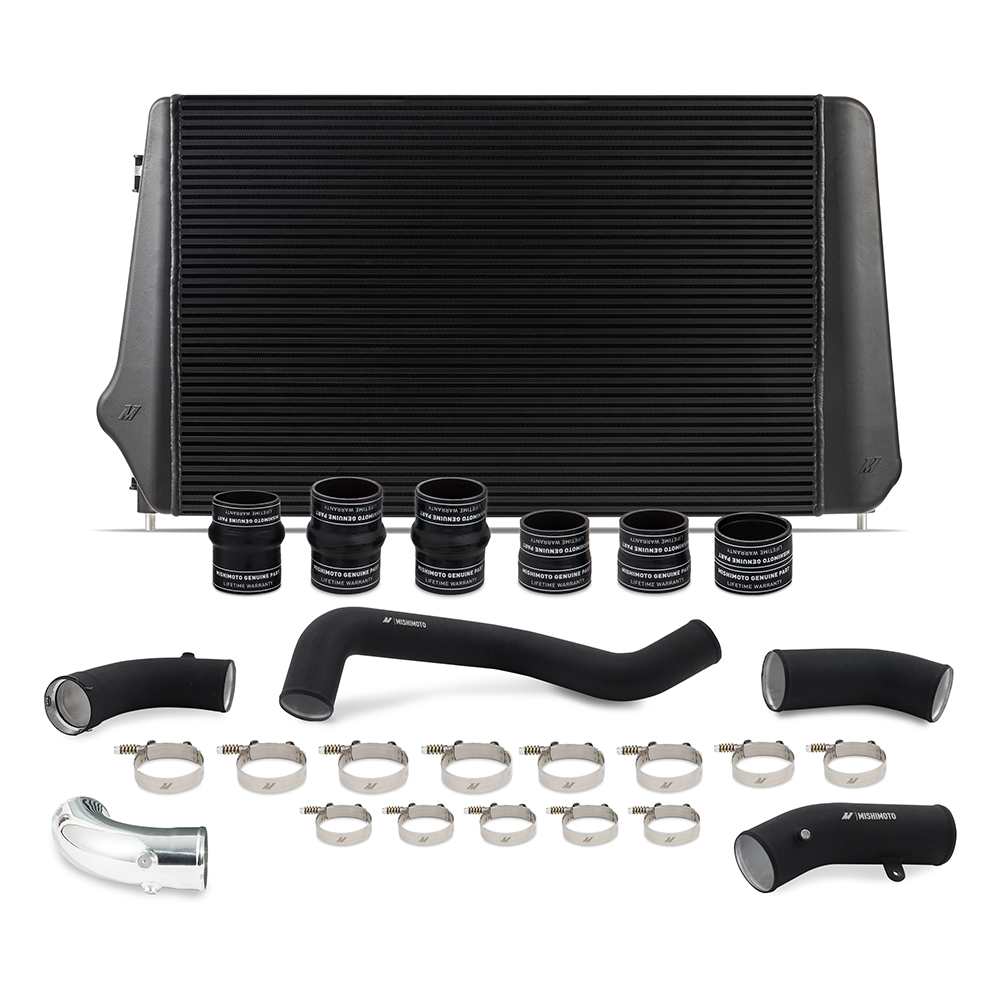

TechSpec Includes: (1) Mishimoto Intercooler--(1) Cold-Side Intercooler Pipe Adapter--(2) Cold-Side Intercooler Pipe--(2) Hot-Side Intercooler Pipe--(3) Cold-Side Intercooler Boot--(3) Hot-Side Intercooler Boot--(13) Constant-Tension T-Bolt Clamp--(2) Intercooler Core Spacer--(2) M8 X 1.25 X 20mm Bolt--(2) M8 X 1.25 X 35mm Bolt--(2) M8 X 1.25 X 60mm Bolt--(6) M8 Washer--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: Some trimming of the fan shroud may be required for installation.
TechSpec Outlet (in): 3.25
TechSpec Overall Height (in): 23.85
TechSpec Overall Length (in): 45.8
TechSpec Overall Width (in): 4.92
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 80
