Intercooler Kit, Black/Black, fits Honda Civic Type R 2017-2021 - Mishimoto - MMINT-CTR-17KBKWBK

It's no easy feat to be dubbed as one of the fastest front-wheel-drive productions cars in the world. Honda put all of their engineering prowess behind this achievement but since the 2017-2021 Honda Civic Type R finds itself in the gray area of track fiend and commuter car some sacrifices had to be made. One of those sacrifices comes in the form of the underperforming intercooling system that the FK8 is born with. Under intense driving conditions or just being caught in a sweltering summer day the stock tube-and-fin intercooler soaks with heat quelling the performance of your CTR.We here at Mishimoto aim to put that power back into your hot-Honda by keeping it cool with the Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit. We started by increasing the overall size of the core two more than double that of the stock dimensions. The 4.7 inch thick core boasts a 169-percent increase in overall volume and bumps the external fin surface area by 189-percent for optimal heat rejection properties.We didn?t stop with the size increase either. To keep the charged air flowing properly through the larger core we updated to a bar-and-plate core construction. The robust design offers not only improved flow characteristics but also aides in transferring heat away from the charged air. The plastic end tanks are a thing of the past and have been replaced with our sleek cast aluminum designs to more effectively direct airflow to and from the piping.With the Mishimoto Performance Intercooler Kit the Intercooler isn?t the only component that received an update and we took the liberty of overhauling the entire intercooling system. Honda carried some of those sacrifices in the name of mass production over to the intercooler piping as well. The restrictive piping diameters limit the K20C1?s potential to turn up the boost with tunes and the rubber sections are destined to deteriorate down the line. We updated these charged air channels with a 2.5? mandrel-
4.7-in thick intercooler design optimized for maximum flow
Max power gains of up to 10 whp and 10 wtq
Drops outlet air temperatures by 50F on stock tuning
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.5 IN
Cold Side Pipe Inside Diameter: 2.5 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 0 IN
Inlet Diameter: 2.5 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.5 IN
Maximum Boost Pressure: 0 PS
Core Color: Black
Maximum Horsepower: 0 HJ
CARB EO Number: D-759-12
Install Difficulty: 3
OptionLabel: Black Intercooler Black Pipes
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2017-2021 Honda Civic Type R
SellingPoint02: 4.7-in thick intercooler design optimized for maximum flow
SellingPoint03: Max power gains of up to 10 whp and 10 wtq
SellingPoint04: Drops outlet air temperatures by 50F on stock tuning
SellingPoint05: Optimal core design for maximum cooling efficiency with minimal pressure drop
SellingPoint06: Intercooler volume increased by 169-percent and external fin surface area by 189-percent
SellingPoint07: 2.5-in piping diameter improves flow characteristics
SellingPoint08: Mandrel-bent aluminum cold-side piping for increased durability
SellingPoint09: Available in silver or black intercooler with the option of wrinkle black or wrinkle Rallye Red piping
SellingPoint10: Patent No. US D931 336
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017-2021 Honda Civic Type R
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: FK8
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: K20C1

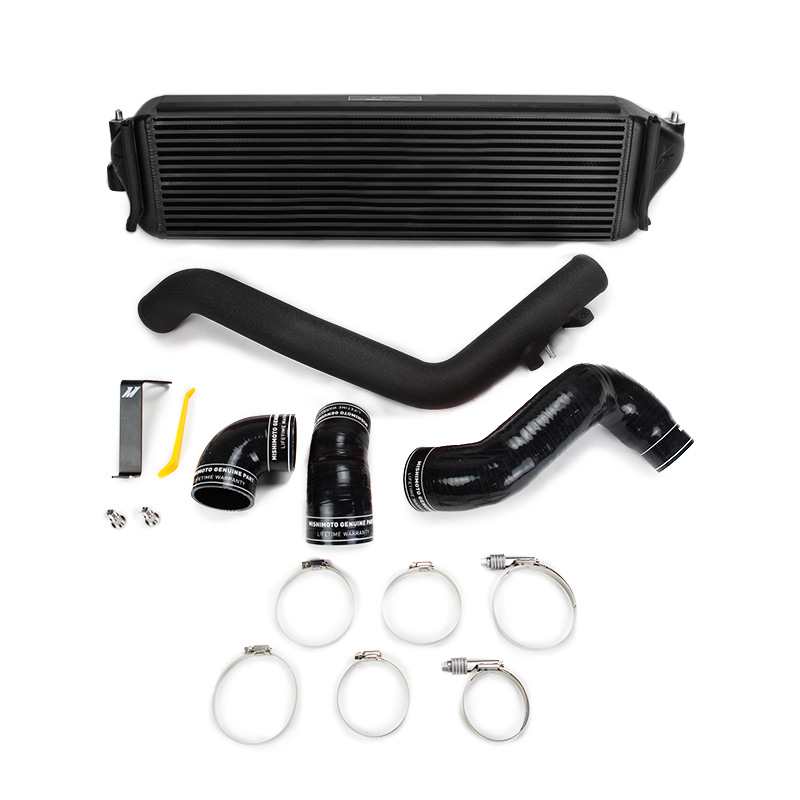

TechSpec Includes: (1) Intercooler--(1) Mandrel-Bent Aluminum Cold-Side Pipe--(1) Silicone Hot-Side Pipe--(2) Silicone Couplers--(6) High-Torque Worm Gear Clamps--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 29
