Intercooler Kit, Black/Red, fits Honda Civic 1.5T/Si 2016-2021 - Mishimoto - MMINT-CIV-16KBKWRD

Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler Kit from Mishimoto! In the age of the turbocharger Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced It'still suffers from an age-old enemy -- heat. The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum bar-and-plate construction is specifically designed to shrug off heat generated from compressing air into the intake manifold. Our intercooler also has increased the volume by 102-percent and fin surface area by 97-percent which helps drop outlet air temperatures by 20 F over the stock intercooler and up to 42 F once a performance tune is added. The benefits of our upgraded design don't stop with the intercooler. Our direct-fit intercooler kit also gives the stock intercooler piping an overhaul. We ditched the plastic and rubber combination that made up the original equipment and replaced them with mandrel-bent aluminum and 5-layer fiber-embedded silicone couplers. Our piping also increases the size of both the hot and cold-sides of the piping system from 42mm to 55mm equating in a 30-percent increase in size. We also took the liberty of reducing the angles of the bends in the piping giving the charged air a more direct flow through the intercooling system and improving the flow. Our performance intercooler kit adds up to 4 hp and 8 ft-lbs of torque on the stock tuning with the potential to boost that power gain to 11 hp and 9 ft-lbs of torque with a tune.
Patent Pending
Max power gains of 4 whp and 8 ft-lbs torque on stock tuning
Increased core size of 102-percent and fin surface area by 97-percent
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Red
Core Length: 0 IN
Inlet Diameter: 0 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 0 IN
Maximum Boost Pressure: 0 PS
Core Color: Black
Maximum Horsepower: 0 HJ
CARB EO Number: D-759-12
Install Difficulty: 3
OptionLabel: Black Intercooler Red Piping
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2016-2021 Honda Civic 1.5T and Si
SellingPoint02: Patent Pending
SellingPoint03: Max power gains of 4 whp and 8 ft-lbs torque on stock tuning
SellingPoint04: Increased core size of 102-percent and fin surface area by 97-percent
SellingPoint05: Drops outlet air temperatures by 20F on the stock tune and 42F with performance tuning
SellingPoint06: Optimal core design for maximum cooling efficiency with minimal pressure drop
SellingPoint07: 30-percent increase in size over stock intercooler piping
SellingPoint08: Increased flow capacity ideal for tuned applications
SellingPoint09: Mandrel-bent aluminum hot and cold-side piping for increased durability
SellingPoint10: Available in silver or black intercooler with the option of wrinkle black or Rallye Red
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016-2021 Honda Civic 1.5T--2017-2020 Honda Civic Si
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: FC1--FC3--FK4--FK7
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: L15B7

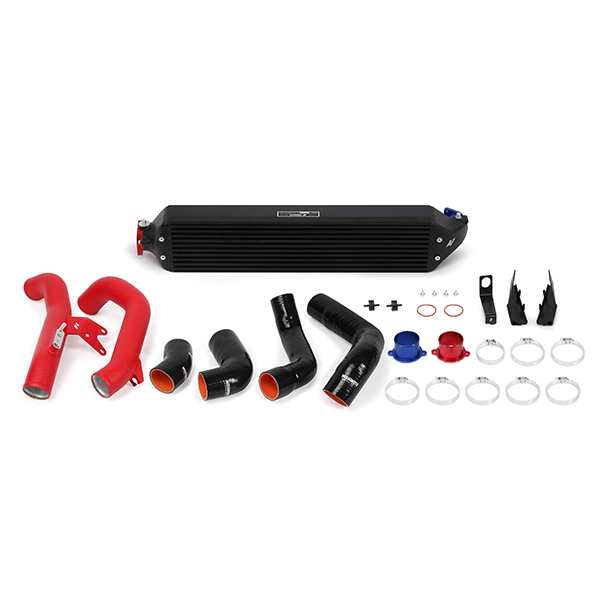

TechSpec Includes: (1) Mishimoto Intercooler--(2) Mandrel-Bent Intercooler Pipes--(4) Silicone Couplers--(1) Stock Piping Adapter Kit--(1) Mishimoto Intercooler Piping Adapter Kit--(1) Shrouding Kit--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 19
