Intercooler, Black, fits Honda Civic 1.5T/Si 2016-2021 - Mishimoto - MMINT-CIV-16BK

Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler from Mishimoto! In the age of the turbocharger Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced It'still suffers from an age-old enemy -- heat. The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum bar-and-plate construction is specifically designed to shrug off heat generated by compressing air into the intake manifold. Our intercooler also has increased the volume by 102-percent and fin surface area by 97-percent which helps drop outlet air temperatures by 20 F over the stock intercooler and up to 42 F once a performance tune is added. The benefits of our upgraded design don't stop with the temperature drop. Our direct-fit intercooler adds up to 4 hp and 8 ft-lbs of torque when combined with the 2016+ Honda Civic Performance Intercooler Piping with the potential to boost that power gain to 11 hp and 9 ft-lbs of torque with a tune. The Mishimoto 2016+ Honda Civic Performance Intercooler is available in Silver or Black and includes the Mishimoto Lifetime Warranty.
Patent Pending
Max power gains of 3 whp and 8 ft-lbs torque on stock tuning
Increased core size of 102-percent and fin surface area by 97-percent
Inlet Outside Diameter: 0 IN
Outlet Outside Diameter: 0 IN
Length: 0 IN
Width: 0 IN
Type: Bar-and-Plate
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Height: 0 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 0 IN
Inlet Tank Material: Aluminum
Core Color: Black
CARB EO Number: D920 382
Install Difficulty: 3
OptionLabel: Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2016-2021 Honda Civic 1.5T and Si
SellingPoint02: Patent Pending
SellingPoint03: Max power gains of 3 whp and 8 ft-lbs torque on stock tuning
SellingPoint04: Increased core size of 102-percent and fin surface area by 97-percent
SellingPoint05: Drops outlet air temperatures by 20F on the stock tune and 42F with performance tuning
SellingPoint06: Optimal core design for maximum cooling efficiency with minimal pressure drop
SellingPoint07: Compatible with stock piping
SellingPoint08: Available in silver or black
SellingPoint09: Patent numberD920 382
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016-2021 Honda Civic 1.5T--2017-2020 Honda Civic Si
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: FC1--FC3--FK4--FK7
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: L15B7

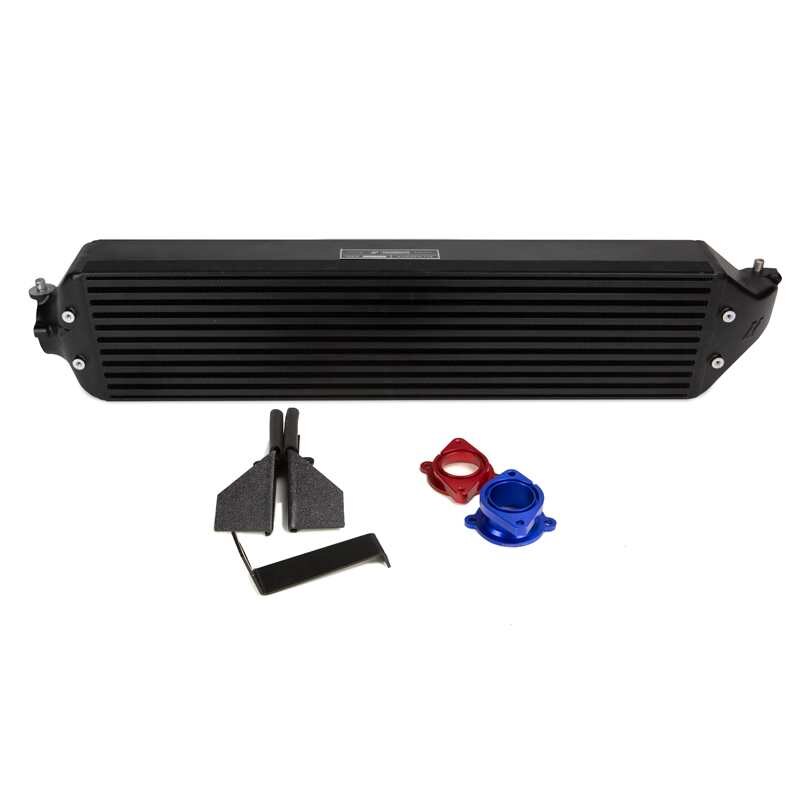

TechSpec Includes: (1) Mishimoto Intercooler--(1) Stock Piping Adapter Kit--(1) Shrouding Kit--(1) CARB EO Sticker--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 19
