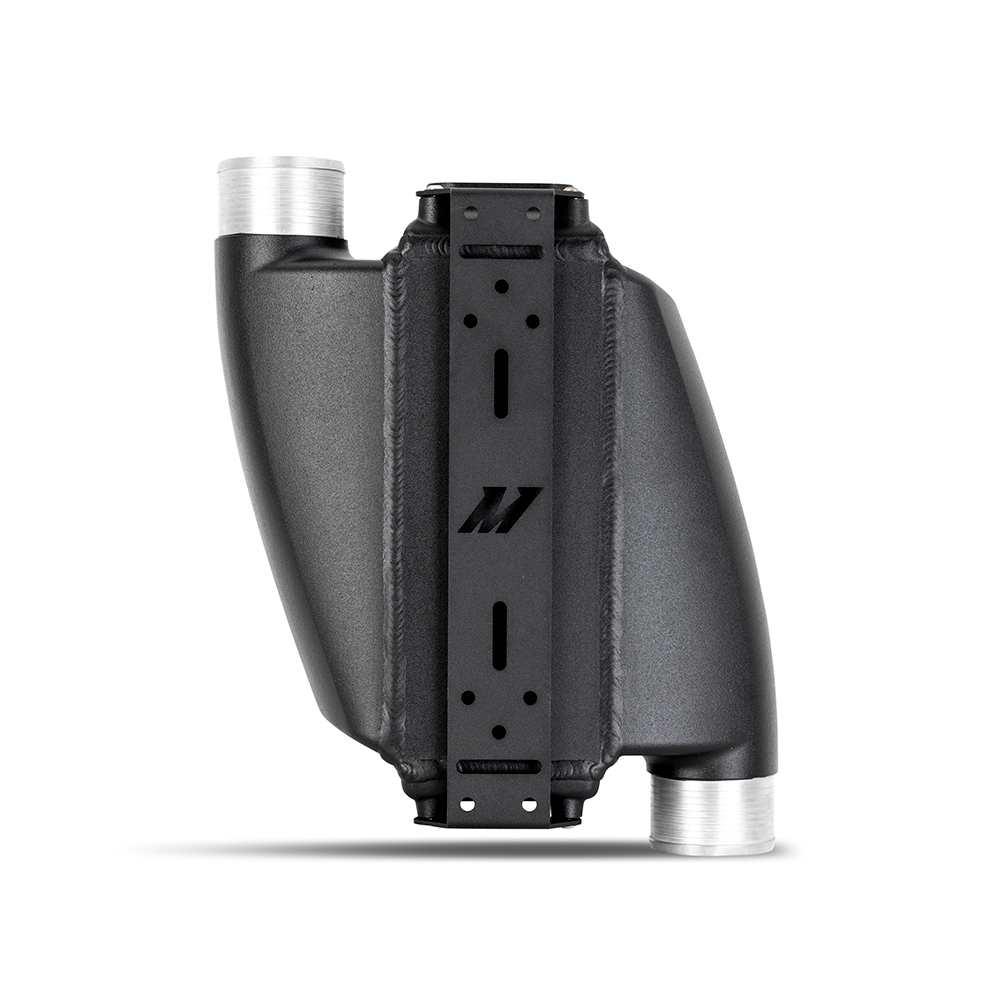

Air-to-Water Intercooler, Dual-Pass Coolant, 500HP-Opposite Side Inlet/Outlet - Mishimoto - MMINT-A2W-DPR-1

Keeping air intake temperatures low is the key to decreasing the impact of heat soak reducing detonation and producing consistent power output. As a result Intercooler systems have evolved substantially over the last decade bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project Mishimoto has developed a full lineup of high-performance air-to-water intercoolers. Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower. When it comes to our intercoolers construction robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core resulting in a pressure tolerance of up to 100 psi of boost. In addition our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections ensuring maximum grip between couplers and intercooler piping. Mounting and plumbing your air-to-water system can seem like a daunting task but Mishimoto has made both tasks easy by incorporating -16ORB coolant ports into the core and providing a sturdy 1/8" thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -16ORB Aluminum Fitting selection . Mishimoto air-to-water intercoolers are finished with a sleek durable micro wrinkle black powder coat. As with all our products these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty.
Highly efficient air-to-water design delivers effective cooling in a compact package
Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
Inlet Outside Diameter: 2.75 IN
Outlet Outside Diameter: 2.75 IN
Length: 14.13 IN
Width: 3.93 IN
Type: Bar-and-Plate
Core Height: 3.93 IN
Core Thickness: 3.93 IN
Core Material: Aluminum
Height: 9.25 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 9.79 IN
Inlet Tank Material: Aluminum
Core Color: 500HP - Opposite Side Inlet/Outlet
Install Difficulty: N/A
OptionLabel: 500HP - Opposite Side Inlet/Outlet
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Highly efficient air-to-water design delivers effective cooling in a compact package
SellingPoint02: Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
SellingPoint03: Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
SellingPoint04: Available in multiple core sizes end tank configurations and single or dual pass coolant flow
SellingPoint05: All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
SellingPoint06: CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
SellingPoint07: Sleek subtle and durable micro-wrinkle black powder coat finish
SellingPoint08: -12ORB coolant ports provide leak-free line connections
SellingPoint09: Includes robust 1/8-in thick steel mounting bracket and hardware
SellingPoint10: Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
SellingPoint11: Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
SellingPoint12: Multiple core sizes to choose from to fit the needs of your project
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 3.93
TechSpec Core Length (in): 9.79
TechSpec Core Thickness (in): 3.93
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: N/A
TechSpec Inlet (in): 2.75
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 100
TechSpec Maximum Recommended Horsepower: 500
TechSpec Note: N/A
TechSpec Outlet (in): 2.75
TechSpec Overall Height (in): 9.25
TechSpec Overall Length (in): 14.13
TechSpec Overall Width (in): 3.93
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
