Performance Charge Pipe Kit, Austin Yellow, fits BMW F8X M3/M4 2015-2020 - Mishimoto - MMICP-F80-15CAY

Keep the boost and style flowing through your BMW with the Mishimoto 2015+ BMW F8X M3/M4 color matched charge pipe kit. The air-to-water intercooler keeping IAT's low is a system and the stock charge pipes can be a weak link. Once the pressure is on it's not uncommon for the factory pipes to split at the plastic welds by the turbo or completely burst along the seam leaving you with a frustrating boost leak. The Mishimoto F8X M3/M4 Charge pipes are a durable full aluminum construction expertly TIG-welded for a secure channel for the S55's boost. Our charge pipes are specifically designed to deliver optimal airflow with a more uniform shape from turbo to intercooler without sacrificing fitment. To add even more style to your already impeccably designed F80 we've painted these charge pipes in your choice of 12 OEM colors. This high-quality automotive-grade paint is durable enough for life under the hood and is matched to your exterior paint for an engine bay as sleek as the rest of your F80. The Mishimoto 2015+ BMW F8X M3/M4 Charge Pipes include the Mishimoto Lifetime Warranty for a lifetime of performance.
Color matched to your choice of 12 OEM colors or classic black
Full aluminum TIG-welded construction for maximum durability
Unique cast midsection for perfect fitment between engine and air intake
Clamp Type: Worm Gear
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Clamps Included: Yes
Finish: Powder Coated
Pipe Material: Aluminum
Pipe Color: Yellow
Clamp Quantity: 4
Coupler Color: Black
Coupler Material: Silicone
Pipe Quantity: 2
Pipe Bend Type: Mandrel
CARB EO Number: D-759-13
Install Difficulty: 2
OptionLabel: Austin Yellow
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2020 BMW M3 M4 and M2 Competition
SellingPoint02: Color matched to your choice of 12 OEM colors or classic black
SellingPoint03: Full aluminum TIG-welded construction for maximum durability
SellingPoint04: Unique cast midsection for perfect fitment between engine and air intake
SellingPoint05: Includes bung for simple integration of methanol injection
SellingPoint06: Designed for optimal airflow
SellingPoint07: Includes matte black silicone couplers for a secure and stock-style connection to the intercooler
SellingPoint08: Patent No. US D971 261 S
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2018 BMW M3 Sedan--2015-2020 BMW M4 Coupe--2015-2020 BMW M4 Convertible--2016 BMW M4 GTS Coupe--2019-2020 BMW M4 CS Coupe--2019-2020 BMW M2 Competition
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: F80--F82--F83--F87
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: N/A

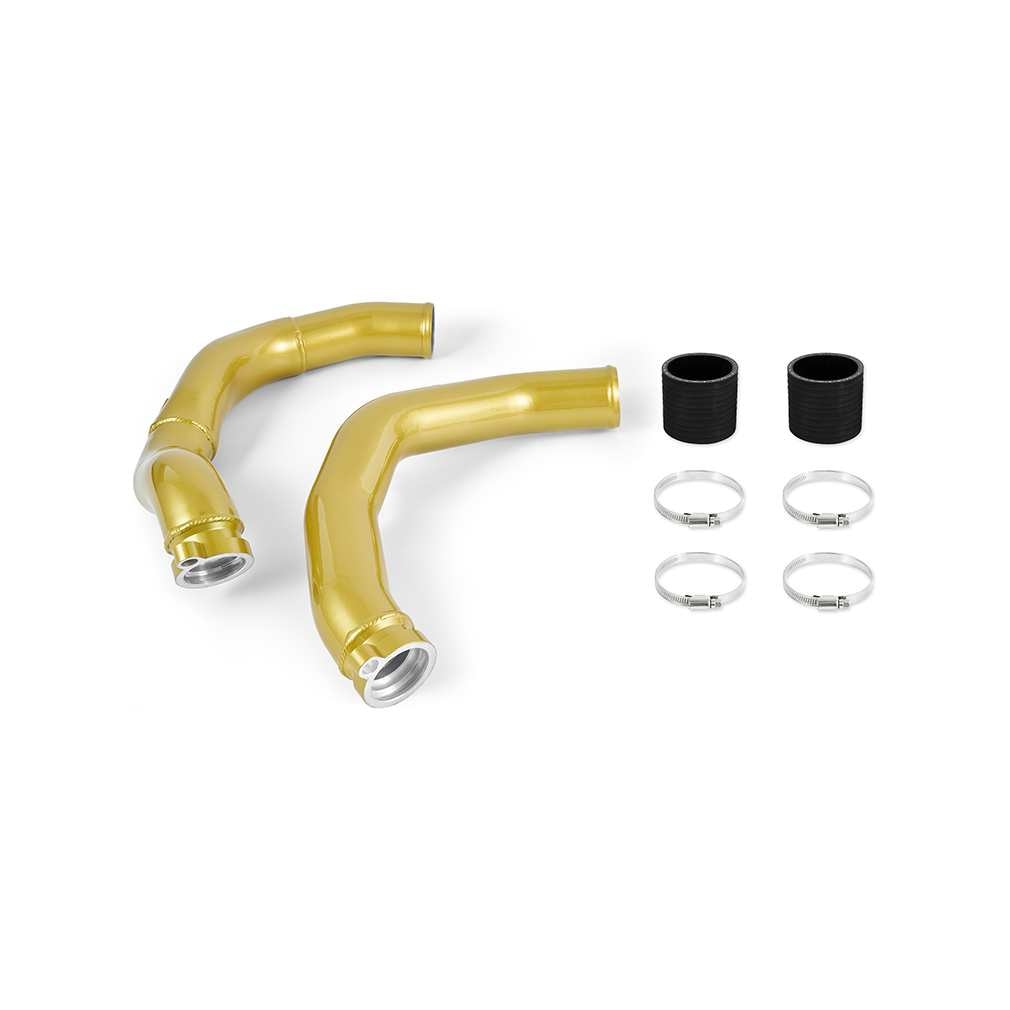

TechSpec Includes: (2) Charge Pipes--(2) Silicone Couplers--(4) Worm Gear Clamps--(1) CARB EO Sticker--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: Check condition of OEM O-rings before installation of Mishimoto charge pipes. Replace with OEM spec O-rings as needed (BMW part number: 11617848448). Color matched products may vary slightly from your vehicle color as paint can be affected by external factors such as heat sun fade and age.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
