Intercooler Pipe Kit, Polished, fits Ford F-150 3.5L EcoBoost 2015-2016 - Mishimoto - MMICP-F35T-15KP

Mishimoto has developed a direct-fit 2015-2016 3.5L F-150 EcoBoost intercooler pipe kit that allows owners to maximize the performance potential of their F-150. Our kit replaces the weak and unattractive plastic piping with free-flowing durable aluminum piping and silicone boots with DuraCoreandtrade; technology. The 24-percent larger volume of our pipes allows your 2015-2016 3.5L F-150 EcoBoost to breathe free and make the most of the its two turbochargers. DuraCoreandtrade; boots coupled with constant-tension worm-gear clamps provide superior strength and blow-out resistance ensuring boost always makes it to its destination. Available with a sleek polished finish or powder-coated in stealthy wrinkle black these pipes are a great addition to every F-150 EcoBoost from the show to the track. Combine this kit with the Mishimoto 2015+ F-150 EcoBoost intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. As with all Mishimoto products this 2015-2016 3.5L F-150 EcoBoost intercooler pipe kit is backed by our Lifetime Warranty.
Direct-fit for 2015-2016 Ford F-150 3.5L EcoBoost
24-percent total internal volume increase over the stock intercooler pipes
Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
Clamp Type: Worm Gear
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Clamps Included: Yes
Finish: Polished
Pipe Material: Aluminum
Pipe Color: Polished
Clamp Quantity: 18
Coupler Color: Black
Coupler Material: Silicone
Pipe Quantity: 7
Pipe Bend Type: Mandrel
CARB EO Number: D-759-6
Install Difficulty: 4
OptionLabel: Polished
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for 2015-2016 Ford F-150 3.5L EcoBoost
SellingPoint02: 24-percent Total internal volume increase over the stock intercooler pipes
SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed o-ring and spring clip for quick and easy installation
SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
SellingPoint05: Constant-tension worm-gear clamps keep a strong grip as pipes and boots expand and contract
SellingPoint06: Available in polished or wrinkle black powder-coated finish
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: 3.5L V6 EcoBoost

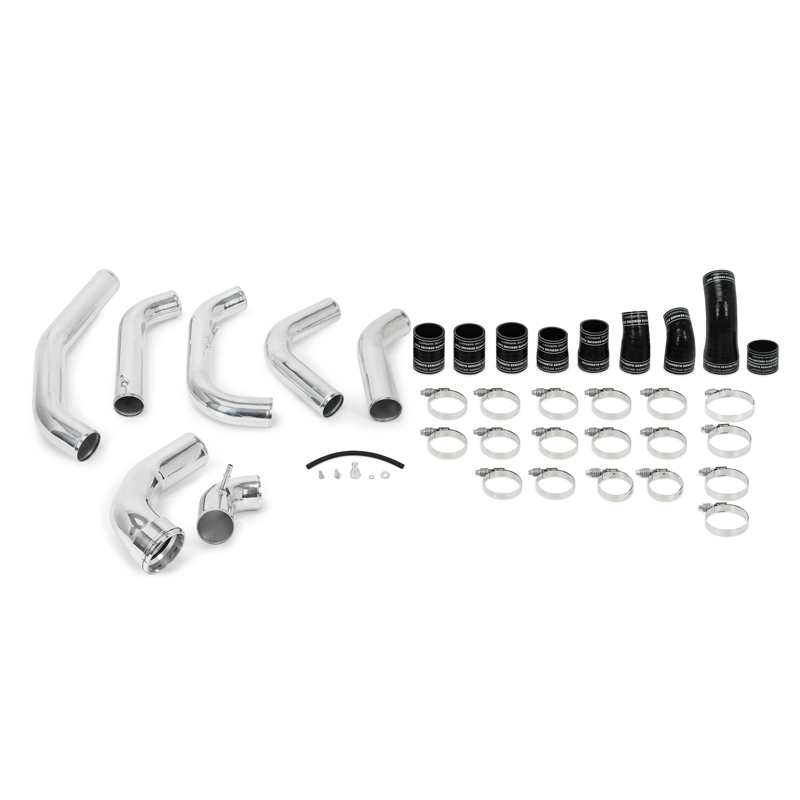

TechSpec Includes: (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(5) Aluminum Hot-Side Intercooler Pipes--(9) Silicone Boots w/ DuraCore Technology--(18) Constant-Tension Worm Gear Clamps--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
