Intercooler Pipe Kit, Black, Cold-side, fits Ford 6.7L Powerstroke 2011-2016 - Mishimoto - MMICP-F2D-11CBK

Mishimoto has developed a cold-side intercooler pipe and boot kit for the 2011+ 6.7L Powerstroke. The factory plastic pipe and boot commonly explode or burst due to the heat and increased boost levels of your high-powered 6.7L; upgrade to the Mishimoto kit for increased reliability durability and performance. The Mishimoto cold-side pipe is constructed of mandrel-bent aluminum with a polished finish. A 100-percent CNC-machined 6061 aluminum coupling allows you to retain your trucks factory emissions components and allows for a quick install. The Mishimoto cold-side pipe eliminates restrictive bends in the factory pipe allowing for improvements in airflow power and EGTs. This kit includes Mishimoto silicone Boots with DuraCore technology. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone Diesel Boots. Compared to normal silicone DuraCore provides superior resistance to heat pressure fuel and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto Constant-Tension T-bolt Clamps for accurate and consistent holding power. This cold-side pipe and boot kit is the perfect addition to your 6.7L Powerstroke truck. It is made in the USA and includes the Mishimoto Lifetime Warranty.
Replaces weak stock plastic pipe
Installs in under an hour
CNC-machined stock-style coupling allows for quick install
Clamp Type: T-Bolt
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Clamps Included: Yes
Finish: Polished
Pipe Material: Aluminum
Pipe Color: Polished
Clamp Quantity: 4
Coupler Color: Black
Coupler Material: Silicone
Pipe Quantity: 2
Pipe Bend Type: Mandrel
Install Difficulty: N/A
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2011-2016 6.7L Powerstroke
SellingPoint02: Replaces weak stock plastic pipe
SellingPoint03: Installs in under an hour
SellingPoint04: CNC-machined stock-style coupling allows for quick install
SellingPoint05: Mandrel-bent polished aluminum pipe eliminates restrictive bends
SellingPoint06: Does not require additional tuning
SellingPoint07: Includes new O-ring and spring clip
SellingPoint08: Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant Tension T-Bolt Clamps
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 F-350 w/ 6.7L Powerstroke--2011-2016 F-450 w/ 6.7L Powerstroke--2011-2016 F-550 w/ 6.7L Powerstroke
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: N/A

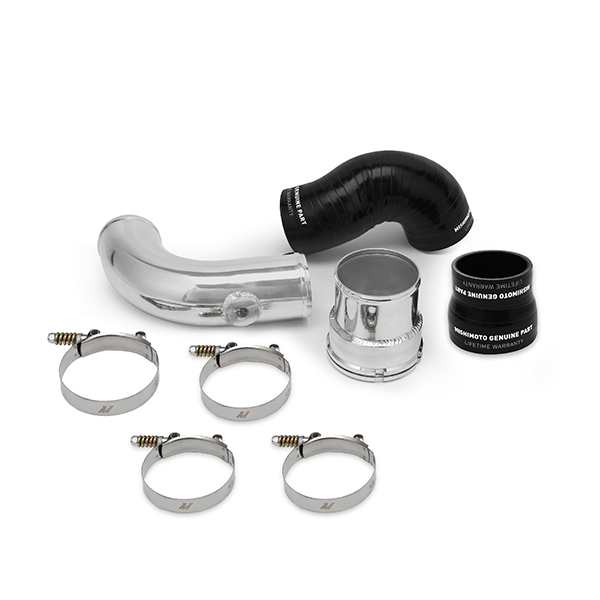

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange O-Ring and Spring Clip--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: Mishimoto has improved this product by including an O-ring and spring clip. If you did not receive these components with your kit contact our customer experience team or remove the stock O-ring and spring clip and install them onto your Mishimoto CNC-machined coupling.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
