Intercooler Pipe Kit, Black, fits Mitsubishi Lancer Evolution 7/8/9 2001-2007 - Mishimoto - MMICP-EVO-01BK

Improve airflow and turbo spool with Mishimoto mandrel bent aluminum intercooler pipes for the Mitsubishi Lancer Evolution 7/8/9. These pipe kits are designed with high-horsepower vehicles in mind and feature bead-rolled pipe ends for prevention of leaks and coupler disconnection. The Mishimoto Evolution 7/8/9 Intercooler Pipe Kit features silicone couplers that provide increased heat and pressure tolerance compared to the stock rubber counterparts. Whether you have a daily driven Evolution or a stripped and caged time attack car airflow efficiency is key to optimizing your charge air system. The Mishimoto Evolution 7/8/9 intercooler pipes are available for purchase separately or as a kit. As with all our products this kit is guaranteed by the Mishimoto Lifetime Warranty ensuring superior quality and craftsmanship.
Lightweight mandrel bent polished aluminum pipes
Eliminates restrictive bends found in the stock piping providing more efficient airflow
Improves turbocharger spool and provides support for high-horsepower vehicles
Clamp Type: T-Bolt
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Clamps Included: Yes
Finish: Polished
Pipe Material: Aluminum
Pipe Color: Polished
Clamp Quantity: 10
Coupler Color: Black
Coupler Material: Silicone
Pipe Quantity: 3
Pipe Bend Type: Mandrel
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the Mitsubishi Lancer Evolution 7/8/9
SellingPoint02: Lightweight mandrel bent polished aluminum pipes
SellingPoint03: Eliminates restrictive bends found in the stock piping providing more efficient airflow
SellingPoint04: Improves turbocharger spool and provides support for high-horsepower vehicles
SellingPoint05: Bead-rolled ends to prevent boost leaks and coupler disconnection
SellingPoint06: Black blue or red silicone couplers provide increased heat and pressure tolerance
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2001-2007 Lancer Evolution 7/8/9 GSR--2005-2007 Lancer Evolution 8/9 MR
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Type: N/A
TechSpec Engine Codes: N/A

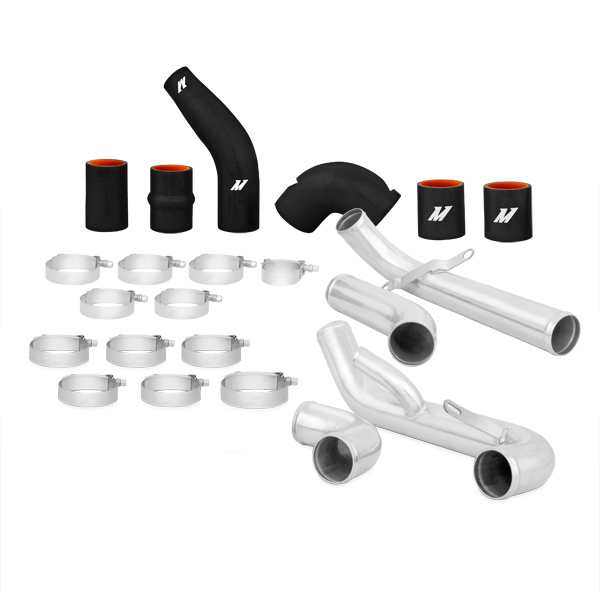

TechSpec Includes: (3) Performance Aluminum Intercooler Pipes--(6) Silicone Couplers--(10) T-Bolt Clamps--(1) CARB Sticker--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: CARB compliant for 2003-2006 model years only.----The upper intercooler pipes are not designed to work with the stock airbox. An aftermarket open element air filter is required to use with these upper intercooler pipes.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
