Performance Aluminum Fan Shroud, fits Pontiac Firebird 1967-1969 - Mishimoto - MMFS-FIR-67K

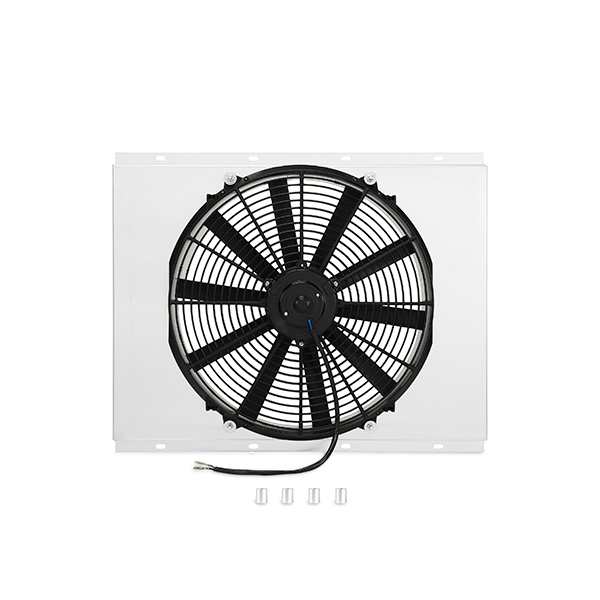

Keep your 1967-1969 Pontiac Firebird cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto's Pontiac Firebird Performance Radiator and includes a 16in high-flow electric fan that produces over 1850 cfm of airflow. Optionally this kit can include a Mishimoto Adjustable Fan Controller Kit which will provide the user with total control over coolant temperatures. As with all our products this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
Includes a high-flow 16-in electric fan providing over 1850 cfm of airflow
All-aluminum construction
Optional fan controller provides complete control of coolant temperatures at idle
Color: Silver
Finish: Brushed
Install Difficulty: 3
Installation Difficulty: 3
Material: Aluminum
OptionLabel: w/ Fan Controller
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Includes a high-flow 16-in electric fan providing over 1850 cfm of airflow
SellingPoint02: All-aluminum construction
SellingPoint03: Optional fan controller provides complete control of coolant temperatures at idle
SellingPoint04: Designed to mate exclusively with Mishimoto's Pontiac Firebird Performance Radiator
SellingPoint05: Replaces failure-prone stock mechanical fan
SellingPoint06: No cutting or bending of shroud required
SellingPoint07: Includes all mounting hardware for installation
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1967-1969 Pontiac Firebird 326ci (5.3L) V8 350ci (5.7L) V8 400ci (6.6L) V8--1967-1969 Chevrolet Camaro 396ci (6.5L) V8
TechSpec CFM (Each Fan): 1850
TechSpec Chassis Codes: N/A
TechSpec Engine Codes: 326ci (5.3L) V8--350ci (5.7L) V8--396ci (6.5L) V8--400ci (6.6L) V8
TechSpec Height (in): 19.64
TechSpec Includes: (1) Aluminum Fan Shroud--(1) 16-inch Mishimoto Slim Electric Fan--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty
TechSpec Length (in): 24
TechSpec Note: Electric fans already come attached to the shroud.----Fans may require additional wiring.----Optional Fan Controller is Mishimoto MMFAN-CNTL-U and includes both NPT and Probe type sensors.
TechSpec Weight (lbs): N/A
TechSpec Width (in): 3.69
Title: Mishimoto Pontiac Firebird Performance Aluminum Fan Shroud 1967-1969
