High-Flow Race Line Electric Fan, 10 in - Mishimoto - MMFAN-10HD

Provide your radiator with the maximum amount of airflow with our new 10in Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 1600 CFM of airflow to cool the largest and most powerful of engines! For universal installation use the Mishimoto Electric Fan Mounting Kit.
High-flow fan provides increased airflow
Compact design with a housing diameter of 11-in and an overall thickness of 3.85-in provides sufficient clearance in the engine bay
Universal fitment
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: High-flow fan provides increased airflow
SellingPoint02: Compact design with a housing diameter of 11-in and an overall thickness of 3.85-in provides sufficient clearance in the engine bay
SellingPoint03: Universal fitment
SellingPoint04: Many sizes available
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Airflow Direction: Pull
TechSpec Amp Draw (Running): 10
TechSpec Amp Draw (Start): N/A
TechSpec Applications: N/A
TechSpec Blade Style: Straight
TechSpec CFM: 1600
TechSpec Depth (in): 3.85
TechSpec Diameter (in): 10

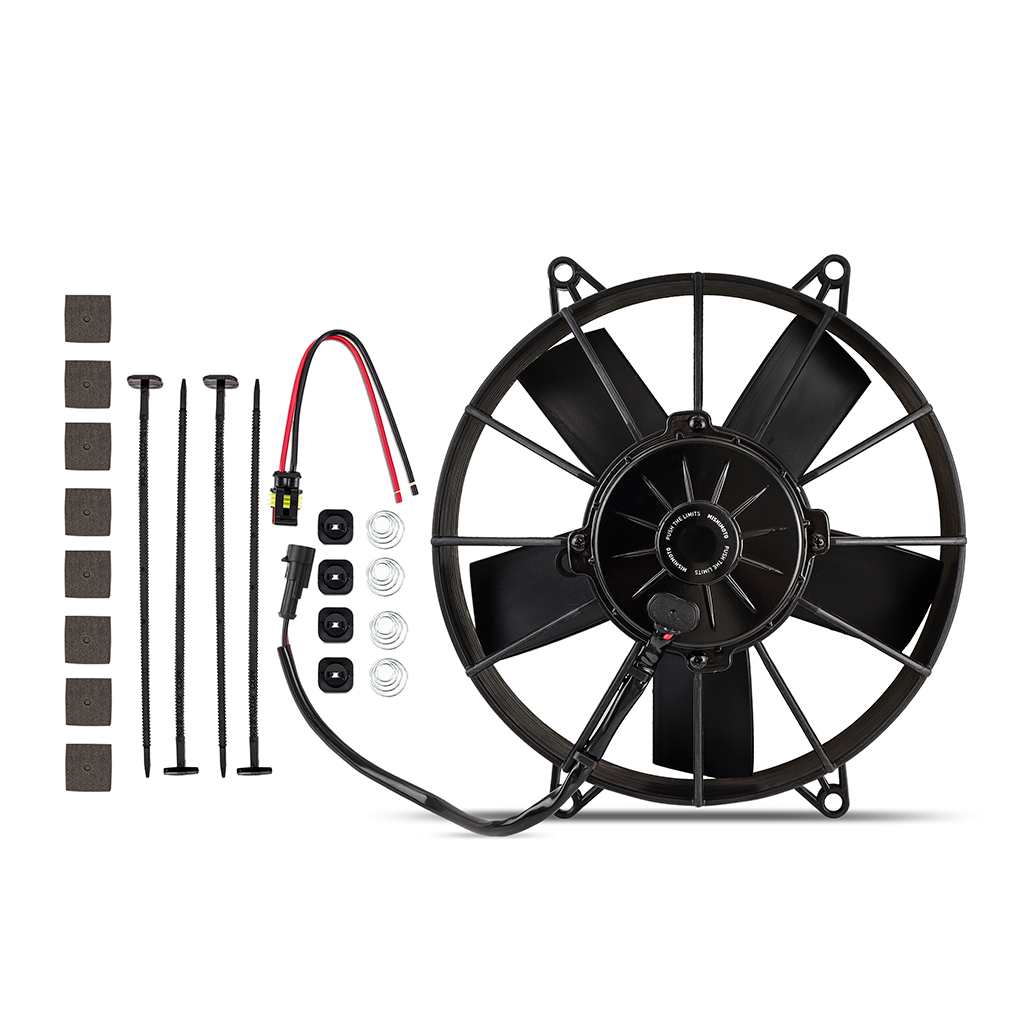

TechSpec Includes: (1) Mishimoto Fan--Mounting Kit:--(4) Heavy-Duty Plastic Fasteners--(8) Adhesive Foam Protective Pads--(4) Dampening Springs--(4) Fastener End Connectors--Mishimoto Lifetime Warranty
TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation.
TechSpec Reversible?: False
TechSpec RPM: 3000
TechSpec Wiring Connection: Female Snap-Plug Terminal
