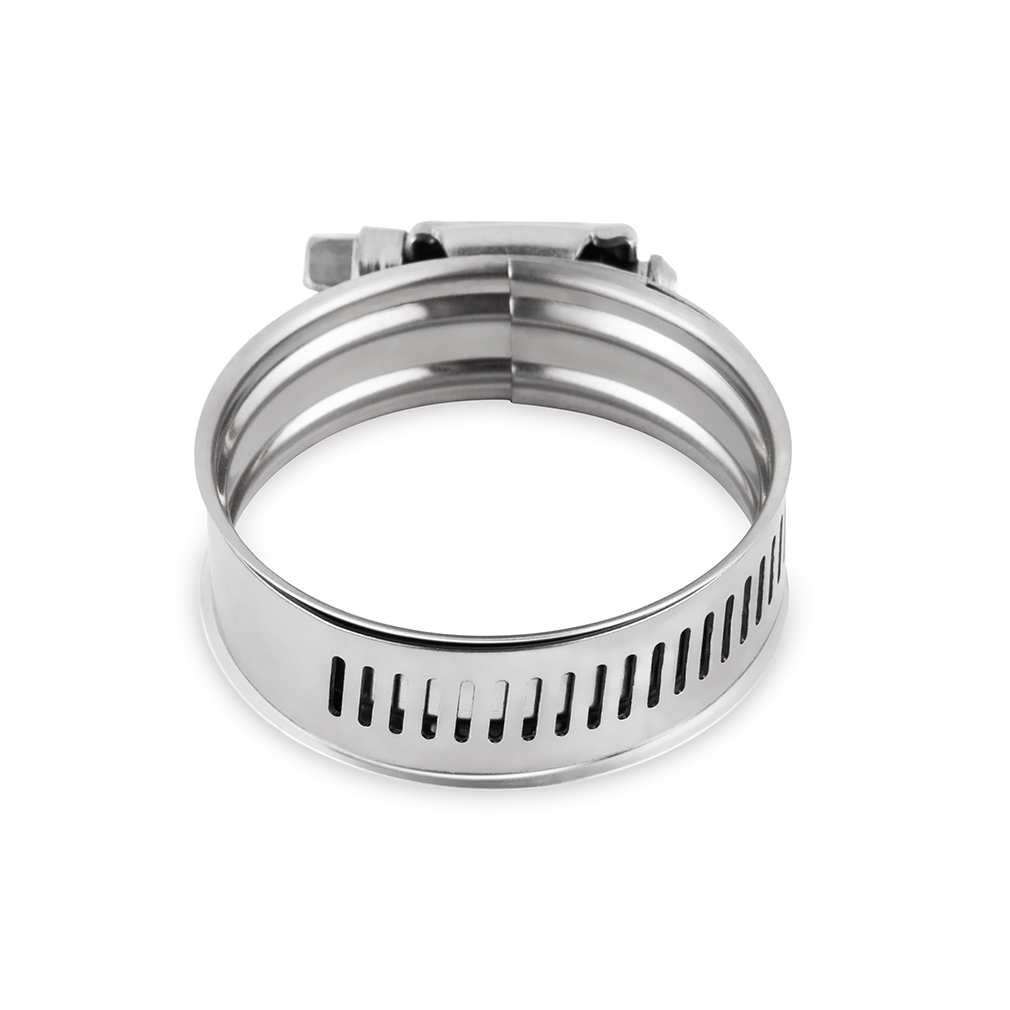

High Torque Protective Worm Gear Clamp, 1.54in - 2.2 in, 10-Pack - Mishimoto - MMCLAMP-WGP-56

Mishimoto High Torque Protective Worm Gear Clamps are simply put the crme de la crme of hose clamps. Their innovative double-ridge inner shield design both protects the clamped material from cuts and abrasions while also providing superior clamping engagement. The double-ridge design provides concentrated compression force to provide equal 360 clamping pressure and leak free connections. To create a long-lasting rust and corrosion resistant clamp we utilized a 304 Stainless Steel construction. Available in a wide array of sizes ranging from 1.54" - 2.2" (39mm - 56mm) to fit everything from vacuum lines to intake tubes. Like all Mishimoto products this High Torque Protective Worm Gear Clamp is backed by our Mishimoto Lifetime Warranty.
Securely clamps hoses couplers and pipes with an outer diameter from 1.54-in-2.2-in (39mm-56mm)
High torque worm gear design allows for quick and easy tightening
Protective inner shield ensures safe damage free clamping of soft materials
Material: Stainless Steel
Size: 2.2 IN
Maximum Diameter: 2.2 IN
Minimum Diameter: 1.54 IN
Reusable: Yes
Color: Silver
Band Width: 0.5 IN
Finish: Plain
Spring Material: Steel
Type: Worm Gear
Grade Type: Premium
Recommended Torque: 35 PPI
SAE Size: 36
SAE Type: F
Install Difficulty: 1
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Securely clamps hoses couplers and pipes with an outer diameter from 1.54-in-2.2-in (39mm-56mm)
SellingPoint02: High torque worm gear design allows for quick and easy tightening
SellingPoint03: Protective inner shield ensures safe damage free clamping of soft materials
SellingPoint04: Innovative double-ridge design provides uniform 360 clamping force
SellingPoint05: Double-ridge inner shield design provides concentrated compression force to ensure leak free connections
SellingPoint06: 304 Stainless Steel construction resists corrosion
SellingPoint07: Sold in packs of 10
SellingPoint08: Includes Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Band Width (in): 0.5
TechSpec Clamp Style: Protective Worm Gear
TechSpec Includes: (10) Mishimoto High Torque Protective Worm Gear Clamps 1.54-in to 2.2-in (39mm-56mm)--Mishimoto Lifetime Warranty
TechSpec Material: Stainless Steel
TechSpec Maximum Clamp Diameter (in): 2.2
TechSpec Minimum Clamp Diameter (in): 1.54
TechSpec Note: N/A
TechSpec Recommended Tightening Torque: 35 in-lbs (4 NM)
TechSpec SAE Number: N/A
