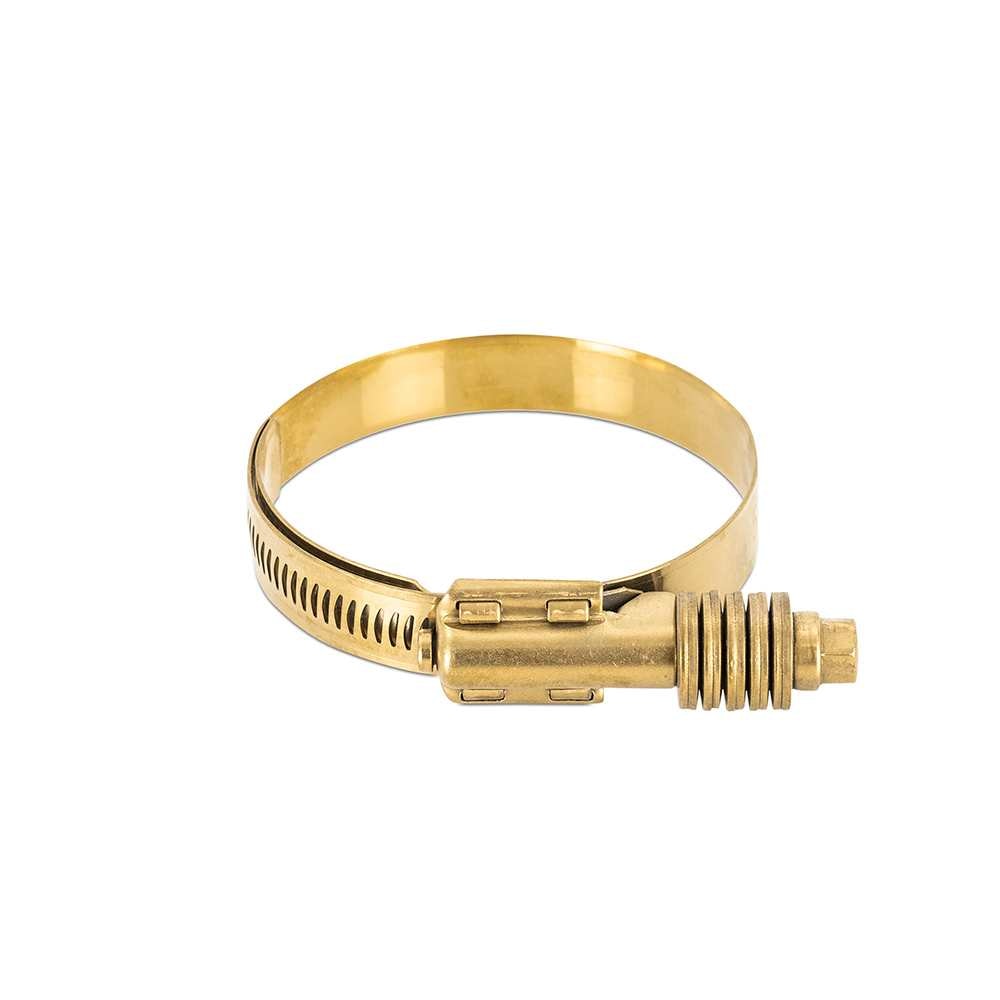

Worm Gear Clamp, Constant Tension, Gold, 2.76in to 3.62 in - Mishimoto - MMCLAMP-CTWG-92GD

Just like our high-torque worm gear clamps Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this constant tension worm gear clamp excels however is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products this constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.
Securely clamps pipes couplers and hoses with an outer diameter from 2.76- 3.62-in (70mm-92mm)
Constant tension spring maintains clamping pressure through a wide range of temperatures
Worm gear design for quick and easy tightening
Material: Stainless Steel
Size: 3.62 IN
Maximum Diameter: 3.62 IN
Minimum Diameter: 2.76 IN
Reusable: Yes
Color: Gold
Band Width: 0.62 IN
Finish: Plain
Spring Material: Steel
Type: Worm Gear
Grade Type: Premium
Recommended Torque: 168 PPI
SAE Size: 58
SAE Type: F
Install Difficulty: 1
OptionLabel: Gold
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Securely clamps pipes couplers and hoses with an outer diameter from 2.76- 3.62-in (70mm-92mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Worm gear design for quick and easy tightening
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Band Width (in): 0.62
TechSpec Clamp Style: Constant Tension Worm Gear Clamp
TechSpec Includes: (1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty
TechSpec Material: Stainless Steel
TechSpec Maximum Clamp Diameter (in): 3.62
TechSpec Minimum Clamp Diameter (in): 2.76
TechSpec Note: If using this clamp we recommend purchasing:--MMICP-SS-21----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-SS-30----MMICP-SS-39----MMICP-SS-31
TechSpec Recommended Tightening Torque: 14 lb-ft (20 NM)
TechSpec SAE Number: 362
